Janam XP30
| Form Factor | Basic Style |
| Scanner Type | 2D Area Imager |
| Operating System | Palm |
| Interface | Batch |
| IP Rating | IP54 |
| Durability | Rugged |
| User Input | 24-Key Numeric Keypad |
| Screen Resolution | 240 x 320 |
Product Highlights
JANAM, XP30N, RUGGED PDA, PALM OS 5.4.9, 32MB/64MB, 2D IMAGER, NUMERIC KEYPAD, 240X320 QVGA COLOR DISPLAY, 1880MAH BATTERY, FREESCALE MX21-266MHZ PROCESSOR
Spec. Sheet

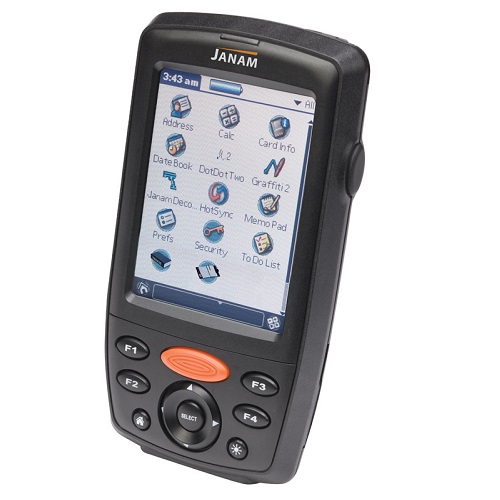

Janam XP30
The XP30 is the world's first fully-featured rugged mobile computer that scans barcodes and runs the latest version of the Palm OS. A brilliant, color, quarter-VGA display and blazing Freescale architecture make the XP30 a best-of-breed, rugged,barcode-scanning, mobile computer, while its list price makes it impossible to ignore.
For customers who want to extend the reach and capability of their mobile Palm applications, the XP30 has the horsepower to execute mission-critical, data collection tasks at the point of business activity. And for customers who are ready to switch to the Palm OS for its simplicity and its durability, the XP30 is a platform that pays for itself twice as fast as comparable devices.
| TECHNICAL | |
|---|---|
| Operating System | Palm OS 5.4.9 Garnet |
| Processor | Freescale i.MX21 @266MHz |
| Memory | 32MB SDRAM, 64MB NAND, NAND flash backup of OS, applications and user data |
| Expansion | User accessible microSD card slot |
| Power | Swappable 3.7V 2400mAh rechargeable Li-ion main battery; rechargeable 20mAh Ni-MH backup battery |
| PHYSICAL | |
| Dimensions | 1.30" H x 3.11" W x 5.75" L / 30.5mm H x 79mm W x 146mm L |
| Weight | 9.88oz / 280g with battery |
| Keypad | Backlit PDA keypad (with 4-way navigation) or backlit numeric keypad |
| Display | 2.17" W x 2.95" L / 55.0mm W x 75.0mm L; 262K colors TFT QVGA (240x320) |
| Touch Panel | Analog resistance type; stylus input |
| ENVIRONMENTAL | |
| Operating Temperature | 14° to 122° F / -10° to 50° C |
| Storage Temperature | -13° to 158° F / -25° to 70° C |
| Humidity | 5% to 90% RH (no condensation) |
| Drop | Multiple 4ft /1.2m drops to concrete on all sides across a wide temperature range |
| Water & Dust | IP54 Category II |
| Vibration | 0.03 GHz from 20Hz to 2kHz; 1 hour random wave per axis |
| Electro Static Discharge (ESD) | +/- 15kVDC air; +/- 8kVDC contact |
| Sterilization | 76.9% to 81.4% concentration alcohol rub |
| Ambient Light | 450ft-candelas (artificial light); 8,000ft-candelas (sunlight) |
| INTERFACE FEATURES | |
| Audio | Speaker and Microphone |
| Alerts | Vibration, LED indicators, audio beep |
| LED Indicators | Tri-color |
| Scan Triggers | Left, right, center buttons |
| DATA CAPTURE | |
| Imager | Adaptus® Imaging Technology; 752 x 480 pixel CMOS area imager |
| 1D Symbologies | China Post, Codabar, Codablock F, Code 11, Code 16K, Code 32 Pharmaceutical (PARAF), Code 39, Code 49, Code 93 and 93i, Code 128, EAN-8, EAN-13, GS1-128, GS1 Databar (RSS-144, RSS Limited, RSS Expanded), Interleaved 2 of 5, ISBT 128, Matrix 2 of 5, Korea Post, MSI, Plessey Code, PosiCode, , Straight 2 of 5 IATA (two-bar start/stop), Straight 2 of 5 Industrial (three-bar start/stop), Telepen, Trioptic Code, UPC-A, UPC-A with Extended Coupon Code, UPC-E, UPC-E1 |
|
2D Symbologies
|
PDF417 (EAN-UCC Composite, MicroPDF417, PDF417, TCIF Linked Code 39, TLC39), 4-CB (4-State Customer Barcode), Australian Post, Aztec Code, Aztec Mesas, British Post, Canadian Post, Data Matrix, ID-tag (UPU 4-State), Japanese Post, KIX (Netherlands) Post, MaxiCode, OCR, Planet Code, Postnet, QR Code |
| DATA COMMUNICATION | |
| IrDA | Standard v1.2 |
| USB | v1.1 client (up to 12Mbps) |
| WLAN | IEEE 802.11b, 2.4GHz, WPA support |
| ACCESSORIES | |
| Single-Slot Cradle Kit, RFID Reader, Stylus 5-Pack, Four-Slot Cradle Kit, Cable Cup, Stylus Tether, Modem Cradle Kit, Vehicle Charger, Nylon Holster, Extended Capacity Battery, Syncing/Charging Cables, Adjustable Handstrap, Magnetic Stripe Reader, Battery Charger, Operating Case | |
| SAFETY/REGULATORY | |
| Safety | UL60950-1, CSA C22.2 No. 60950-1-03, EN60950-1:2001+A11, GS, NOM |
| EMI | FCC Part 15 Subpart B, EN55022:1998+A1: 2000+A2:2003, EN55024:1998+A1:2000+A2:2003, ICES-003 Issue 4, AS/NZS CISPR 22:2004 |
| RF | FCC Part 15 Subpart C and Supart B, EN300 328 v1.6.1 (2004-11), EN301 489-1 v1.6.1 (2005-09), EN301 489-17 v1.2.1 (2002-08), RSS 210 Issue 6, COFETEL |
| Hazardous Locations | UL Listing (US and Canada) Class I Div 2, Groups A, B, C, D |
| Specifications Subject to Change. | |
