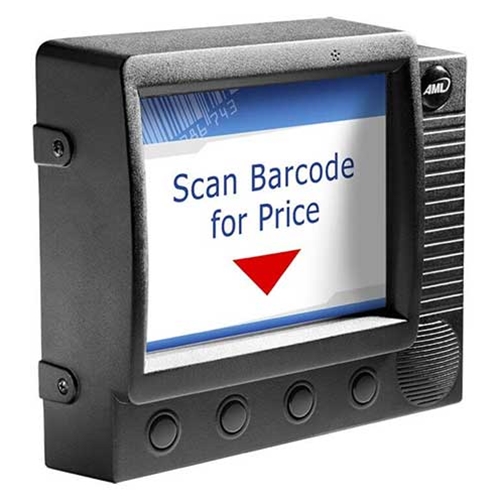

Physical Specifications

• Dimensions: 14.6 cm L x 16.8 cm W x 5.0 cm D; 5.750� L x 6.625� W x 2.000� D
• Weight: 1.45 lbs / 658g
• Display: 5.6� VGA (640x480), 16-bit Color TFT LCD
• Touchscreen: Integrated resistive touch panel
• Power Supply: Power-over-Ethernet (802.3af compliant);12V DC 2.1 mm barrel jack;Optional +24V/+48V connector
• Internal UPS Battery: Optional 7.4V 2-Cell 2200 mAh Lithium-ion, ~2 hours runtime
• Keypad: Four integrated momentary push buttons
• I/O Ports: Three USB 2.0 high speed host ports; two RJ-45 connectors (one RS-485/RS-232, one debug);one Wiegand interface (header); two isolated digital inputs (screw terminal block); two isolated micro-relay outputs (screw terminal block)
• Networking: 10/100Base-TX fast Ethernet; 802.11b/g/n wireless radio (optional internal USB type)
• Audio: Integrated speaker and amplifier (tonal)
• Color: Black; optional custom colors available for enterprise-wide installations (call for details)
• Bar Code Scanner(optional): Integrated omni-directional 2D imager, CCD
• Card Readers(optional): Magnetic stripe reader; HID® ProxPoint® proximity card reader

Performance Specifications

• Processor: Freescale® i.MX283 @ 454 MHz
• Architecture: 32-bit ARM926EJ-S� with 16KB I-Cache and 32KB D-Cache
• Memory (RAM): 128 MB DDR2
• Memory (Flash storage: 512 MB Integrated Flash
• Memory Expansion: microSD Card Socket
• Operating System: Windows® Embedded CE 6.0 R3

Environmental Specifications

• Operating Temp: -20 � to 50 � C / -4 � to 122 � F
• Storage Temp: -30 � to 60 � C / -22 � to 140 � F
• Humidity: 0% to 90% RH, non-condensing
• Electrostatic Discharge: 15kVDC through air; 8kVDC contact
• Sealing: IP54; NEMA 12

Wireless Radio Specifications(optional)

• Radio: IEEE 802.11n Draft v2.0; IEEE 802.11b; IEEE 802.11g
• Frequency: 2.4 GHz Range
• Signal Rates: 11n (40MHz): up to 300Mbps, 11n (20MHz): up to 144Mbps, 11g: up to 54Mbps, 11b: up to 11Mbps
• Output Power: 802.11b: 17� 1dBm, 802.11g: 17� 1dBm, 802.11n: 15� 1dBm
• Antenna Configuration: 1T2R Internal Antenna (1 Transmit / 2 Receiving)
• Receive Sensitivity: 802.11g: -70dBm @54Mbps, 802.11b: -83dBm @11Mbps, 802.11n: -83dBm @11Mbps
• Security: None64/128 Bit WEPWPA/WPA2 Personal (PSK)WPA/WPA2 Enterprise (EAP)802.1x Authentication Supplicants

Mounting and Accessories (optional)

• Mounting Kits: Pole or post mount kit; angled wall mount kit; Adjustable universal RAM Mount� kit
• Peripheral Kits: Top-mount MSR kit; Side-mount HID® ProxPoint Plus® kit

Regulatory Specifications

• Certifications: FCC Part 15 Class A
• Environmental: RoHS, Pb-Free

Maintenance and Support

• Standard Warranty: One year standard warranty agreement
• Optional: Extended Warranty Plus (3 years); Extended Warranty (3 years); CARE Plan Extended Warranty (3 years)
