Thermal Printer Enclosures & Dust Shields
A cleaner workspace for dependable label printing.
Dust, debris and demanding production conditions can affect your printer and media. A properly selected enclosure helps reduce exposure while keeping labels, ribbons and printer controls accessible.
Barcode Factory can help match an enclosure to your printer, available space and operating environment.
Choose More Than a Cover
The right solution balances contaminant protection, printer access and heat management. Start with the conditions around your printing station.
Dust Shields
For applications where a simple barrier can help limit settling dust and debris. Confirm coverage around the media outlet, connections and access points.
Filtered Enclosures
Selected models use a fan and filter system to help reduce dust entering the enclosure. Filter maintenance and unobstructed airflow remain essential.
Temperature Options
Heated or insulated configurations may suit specific operating conditions. Review both the printer's temperature limits and the enclosure's thermal requirements.
Protect Equipment. Keep Daily Tasks Accessible.

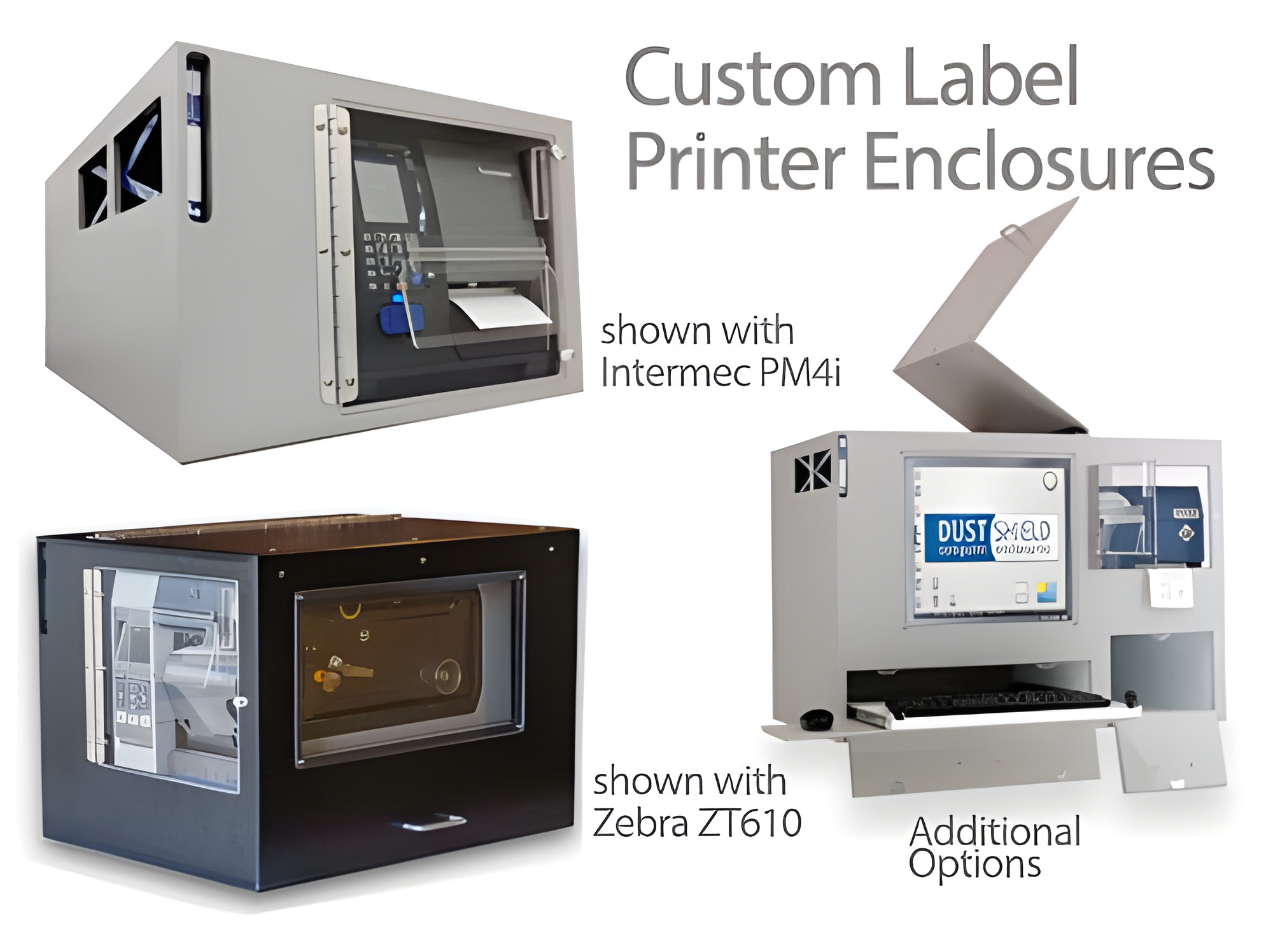

Selected industrial enclosure models feature 3/8-inch ABS construction, filtered positive-pressure airflow and NEMA 12 protection. Available features vary by model and configuration.
- Clear doors for checking printer status and accessing controls
- Space for loading labels and thermal transfer ribbons
- Cable routing for power, network and peripheral connections
- Mounting, storage and workstation options for the application
Share the exact printer model, including any cutter, peeler, rewinder or external media supply, so the enclosure can be checked against your full setup.
See a Printer Enclosure in Action
View the enclosure design and access points to help plan your printing station. Confirm the features of your selected configuration before ordering.
Plan Around Your Printing Station
Consider the complete workflow, from where the enclosure sits to how operators collect each label.
| Consideration | What to Review |
|---|---|
| Environment | Dust type and concentration, moisture exposure, ambient temperature and cleaning procedures. |
| Daily Access | Clearance for opening printer covers, changing media, cleaning the print path and servicing the equipment. |
| Label Delivery | Alignment of the label outlet, label collection space, and room for cutters, peelers or rewinders. |
| Airflow & Power | Ventilation clearance, filter access, fan power and any heating or cooling requirements. |
| Installation | Work surface dimensions, mounting method, cable routing and access to network connections. |
Match the enclosure rating to the job. Dust protection alone does not establish suitability for washdown, outdoor use or hazardous locations. Confirm the required rating and the complete configuration for your facility.
Measure the Printer and Its Access Points

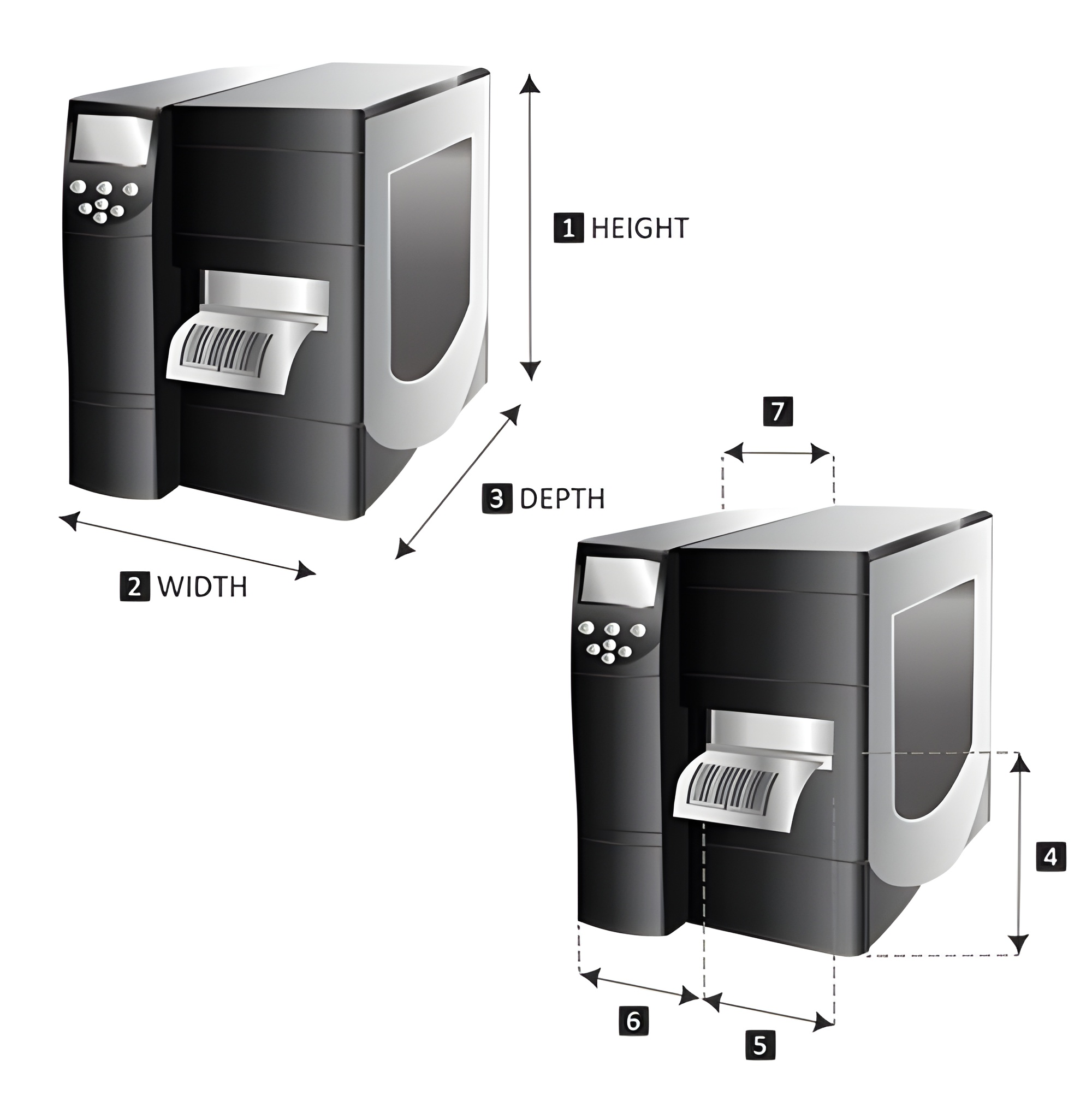

Send your printer make and model, plus the following dimensions in inches. Use the measurement diagram as a reference.
- Printer height
- Printer width
- Printer depth
- Height to the label outlet
- Width of the label outlet
- Distance from the printer's left side to the label outlet's left edge
- Distance from the printer's left side to the top-left edge of the hinged door
Include photos of your setup and note how much clearance the printer needs with its covers fully open.
Need Help Protecting Your Printer?
Tell us about your printer, the material you print, and the conditions at your workstation. Our team can help review enclosure fit, access requirements and available options.
