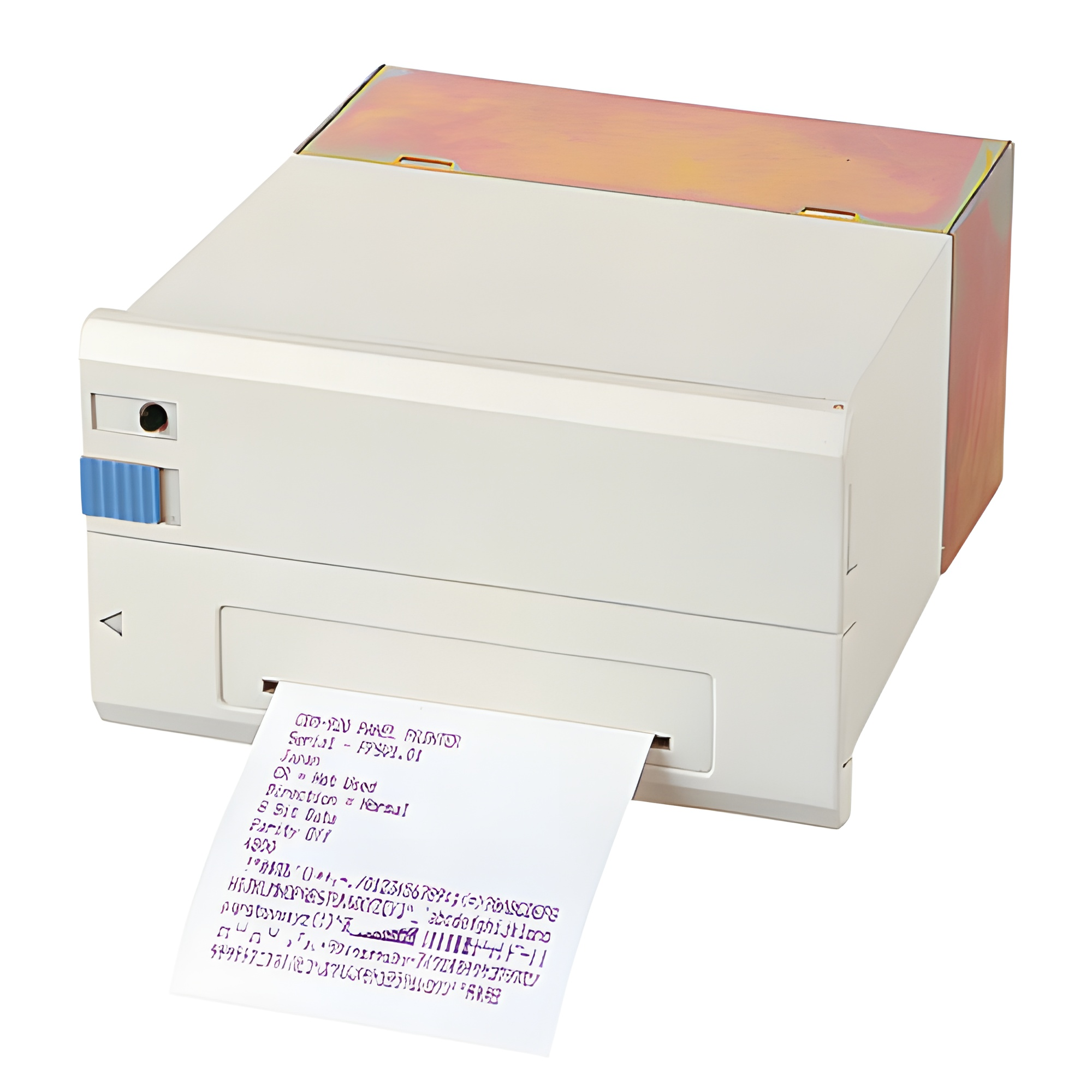

Citizen CBM-920II Kiosk Printer 920II-40RF
Citizen CBM-920II Kiosk Printer 920II-40RF
Citizen CBM-920II Kiosk Printer

Citizen CBM-920II Kiosk Printer

SKU: 920II-40RF
|
Weight: 1.8 lbs.

Printer Type Receipt
Print Technology Dot Matrix
Interface Serial Parallel
Max Media Width 2.0-2.9 inch

Product Highlights

Citizen, Receipt Printer, CBM-920II, Kiosk Printer, 58mm, 2.5 Lps, 40 Col, Serial, Ivory, Panel Mount

Citizen CBM-920II Panel mounted impact printing

The CBM920II is built for panel mountingI. The machine also incorporates specialised auto loading and a paper end sensor for optimum efficiency. Robust construction gives total reliability, with a MCBF of at least 1.0 million lines, while the capability of bit image graphics printing and an integral memory switch increase flexibility and functionality still further.

Applications

  • Compact and reliable
  • Panel mounting
  • Auto loading

Specifications

Printing Technology Serial dot impact
Print Speed (maximum)
  • 2.5 lines/sec
Print Width (maximum) 57.5 mm
Media Width (min to max) 57.5 mm
Media Thickness (min to max) 130 μm
Roll Size (max), Core Size 69 mm outside diameter
Drivers and software Free-of-charge from website, including support for various platforms
Size (W x D x H) and Weight
  • 106x180x88 mm, 0.47 Kg
Emulations (Languages)
  • ESC/POS™
Barcodes
  • None
Power supply DC/V
Reliability 1.5 Million lines
EMC and safety standards
  • FCC class B
Number of columns
  • Up to 24 (1.62 x 2.4 mm)
  • Up to 40 (1.08 x 2.4 mm)
Line spacing Character: 3.52 mm, Graphic: 2.4 mm
Input buffer 2K bytes
Operation environment 0 to +40°C
Storage environment -20 to +60°C (10% to 90% RH non condensing)
Main Interface Parallel (IEEE1284 compliant)
Optional interfaces
  • Serial (RS-232C compliant)
