Datalogic DS4800 Scanner 931061318
Datalogic DS4800 Scanner 931061318

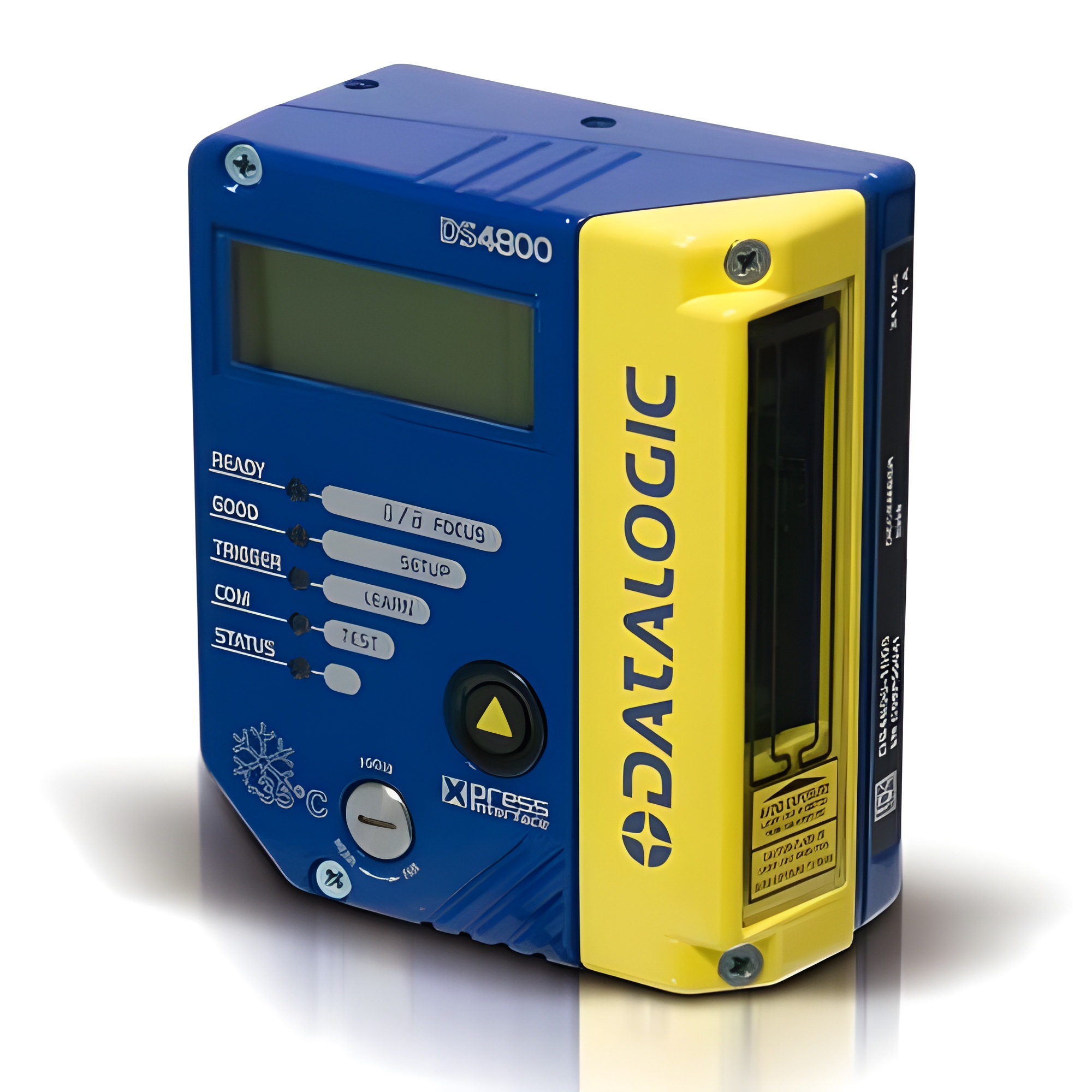

Datalogic DS4800 Scanner

Datalogic DS4800 Scanner

SKU: 931061318
|
Weight: 4 lbs.
Connectivity Corded
Scanner Type 1D Linear Imager
Scan Pattern Linear
Interface Serial

Product Highlights

DATALOGIC AUTOMATION, SCANNER, DS4800-1000 ADJUSTABLE FOCUS, LINEAR

1D Barcodes
Spec. Sheet Spec. Sheet

Datalogic DS4800 Scanner

Info

DS4800 is a flexible and compact laser scanner for industrial application, satisfying all main identification needs of your manufacturing plants. DS4800 features an excellent reading performance, ease of setup thanks to X-PRESS interface, high-speed ID-NET communication interface and total immunity against ambient light.

Smart Focus Adjustment optimizes reading performances based on reading distances using a single model.

DS4800 series includes Subzero models (both Linear and Oscillating Mirror), extending operating temperature to -35C +50C by means of the smart internal heater and de-frost window.

Features and Benefits

  • Variable focus system
  • 600-900scan /sec
  • 2 input + 2 output
  • RS232 + RS485 serial port
  • Display and multi-language messages
  • ID-NET
  • X-PRESS
  • 10-30Vdc, IP65, 0-50C (-35C-50C Subzero models)
  • ACR4 decoding algorithm
  • Typical reading range: 200 - 1000mm

Applications

This product series has been developed to satisfy to requirements of the following reference applications:

  • Automated warehousing
  • Reading on pallets
  • Picking systems
  • Automated shop floor
  • Quality control and parts tracking
  • Reading on forklift trucks
  • Frozen Industry, Temperature Controlled Room applications and  Outdoor Environment
