Datalogic Magellan 9800i Scanner

SKU: 98201030121-013253
Weight: 30 lbs.

Connectivity Corded
Scanner Type 2D Area Imager Omnidirectional
Form Factor Hands Free In Counter Fixed Mount
Scanner Includes Corded Kit [Cable]
Scan Pattern Area
Scan Range Standard
Interface Serial USB IBM PC USB-A
Feature Embedded Scale

Product Highlights

Datalogic Magellan, 9800i Scanner-Scale Non-Pre-Verified, English w/ Display, Long LLT Platter w/ Fixed Rail, Flange Mount Model 9806, US English Single Interval, Scale Sentry, English Single Display, Single Interval, TDR Short, Includes: US Standard Power Brick and Cord

2D Barcodes
1D Barcodes

Frequently Bought Together

Datalogic Magellan 9800i

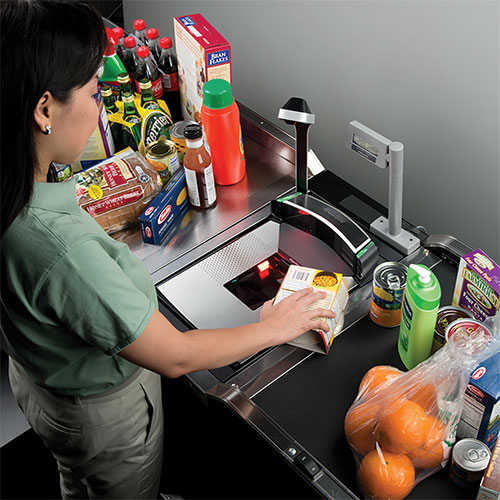

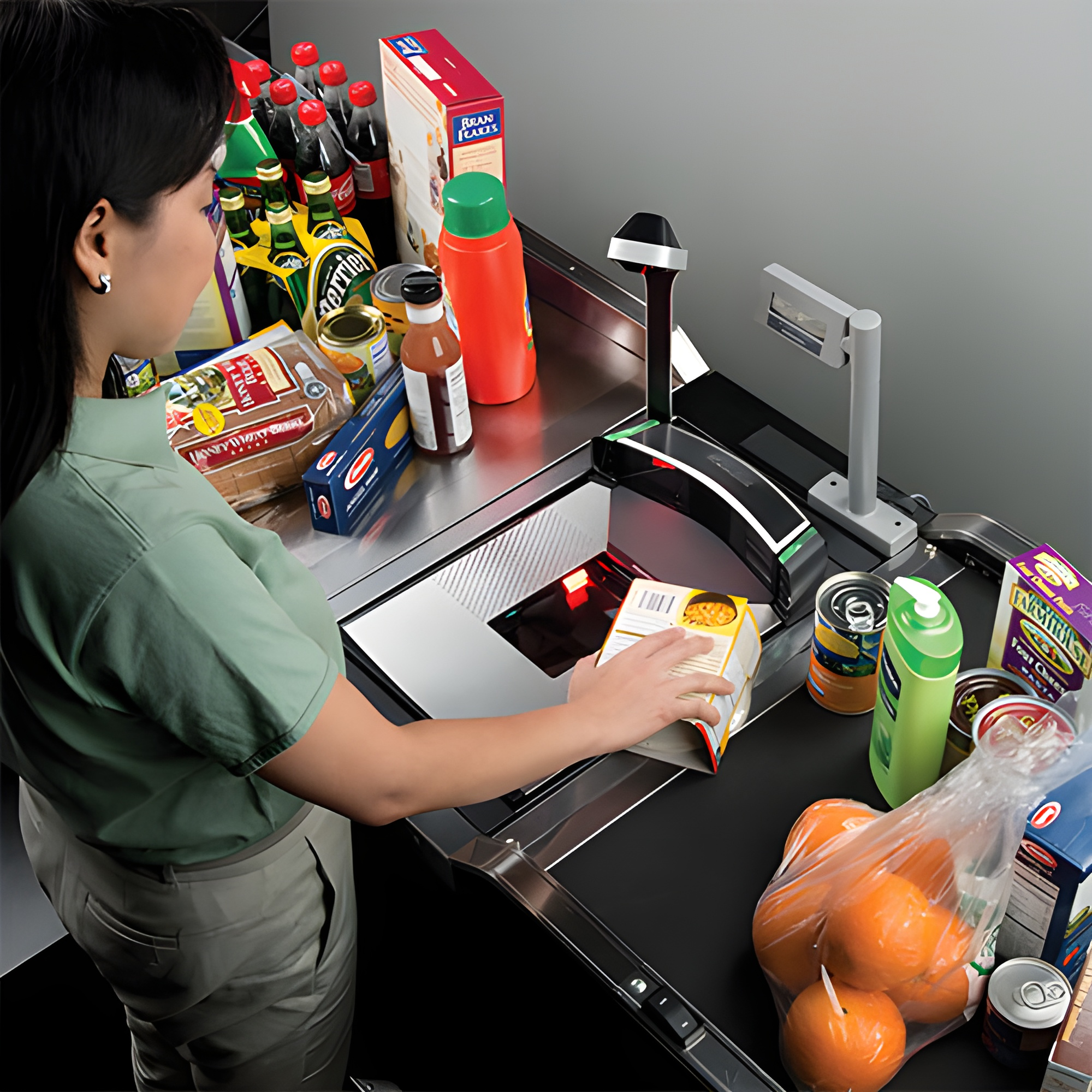

The Magellan 9800i scanner/scale defines a new class of high performance bar code scanners for a worldwide market. With digital imagers in all planes, the 9800i scanner is the first scanner capable of reading both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.

The striking new design improves ergonomics with its lower bonnet height to allow repositioning of POS or Self-Checkout touchscreens, payment terminals and receipt printers to better accommodate ADA customers. The centered speaker provides audio feedback with .wav files for greater fidelity. The large horizontal window is ergonomically positioned for both standing and seated cashiers.


An integrated, customer-facing mobile device reader enables retailers to easily engage in mobile commerce. This eliminates the need for an additional scanner, power supply, outlet, interface cable, POS port and mounting hardware. The customer can scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.


Shrink reduction ranks high among retailers' concerns and the Magellan 9800i scanner has key features designed to reduce shrink at the POS.


Remote Management is supported for OPOS, JavaPOS, IBM Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.


  • Advanced digital imaging in all reading planes
  • Seamless reading of 1D and 2D codes in all planes with good-read audio and visual confirmation for fast, uninterrupted scanning
  • Optional Top Down Reader (TDR) adds large topside field-of-view as well as a customer-facing mobile device reade
  • The largest ever All-Weighs scale platter enables effortless, accurate weighing of long or bulky items
  • ScaleSentry Shrink Monitoring/Prevention System technology reduces losses from oversized items placed outside the weighing surface
  • Low bonnet height allows for accessibility and flexibility in checkstand layout
  • Top side accessible service port allows for the product to stay in the counter for most service calls (including software upgrades), reducing service and scale recalibration costs
  • llumix Intelligent Illumination Technology designed for digital imaging in retai
MSRP: $4344.00
Quantity Discounts
$ 2388.19
