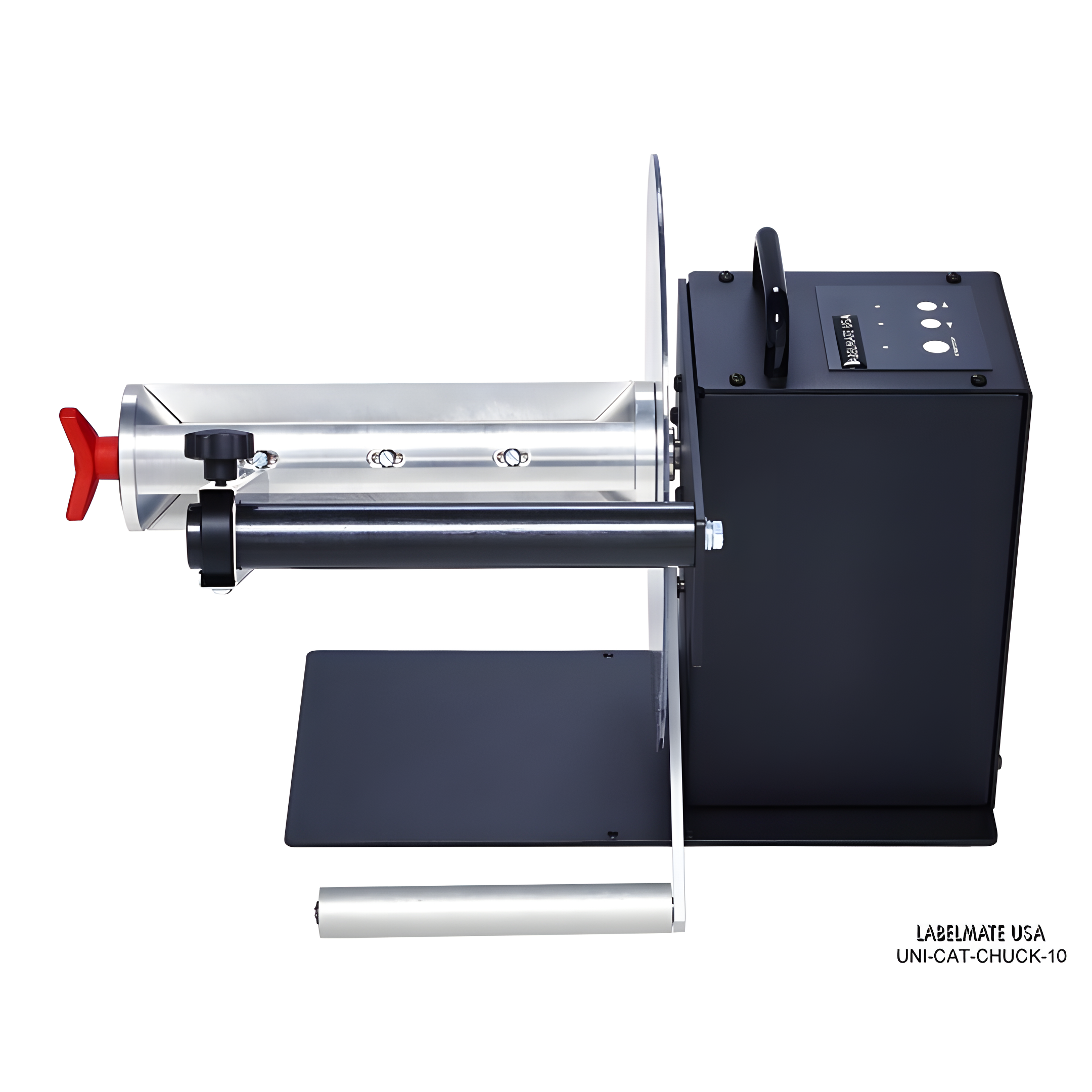

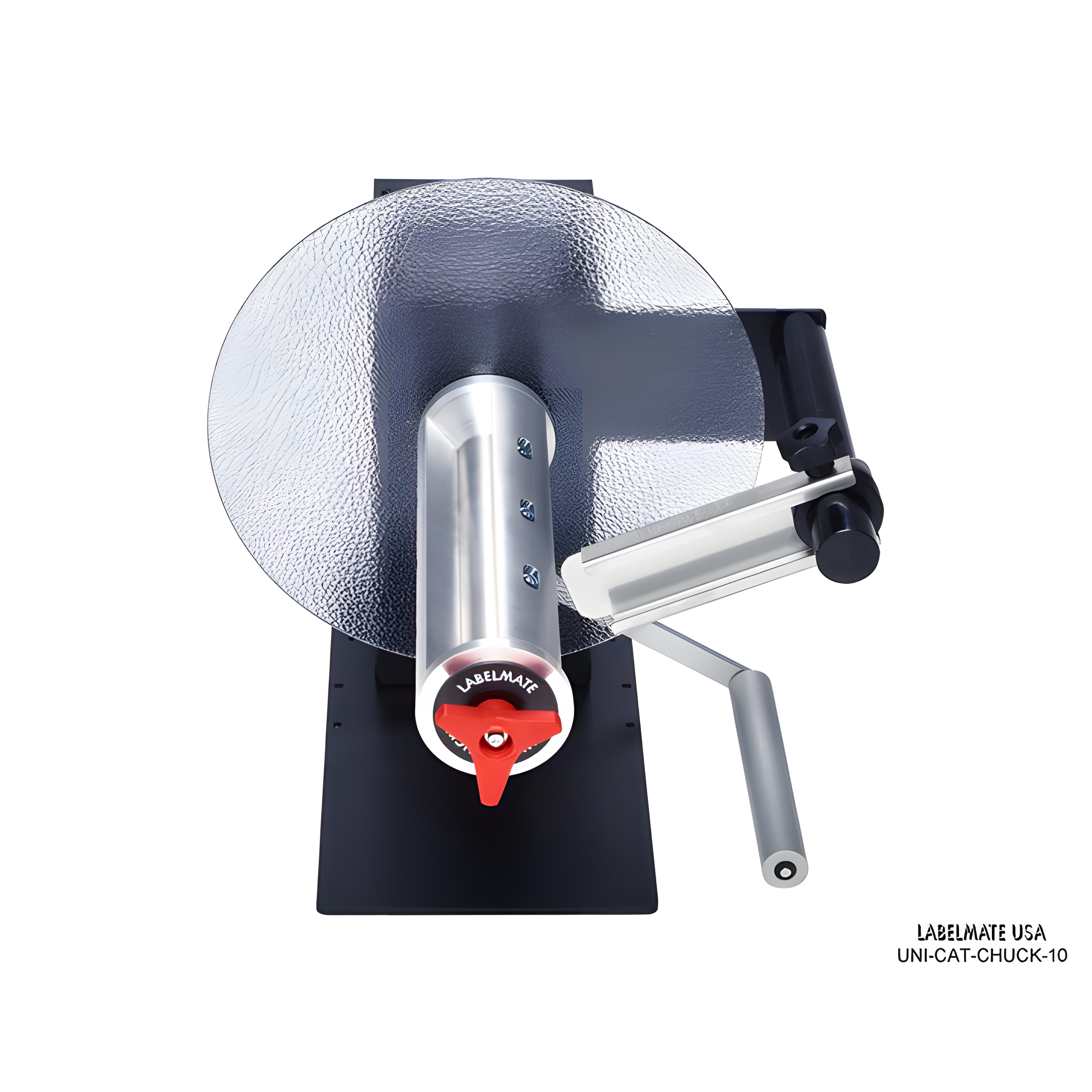

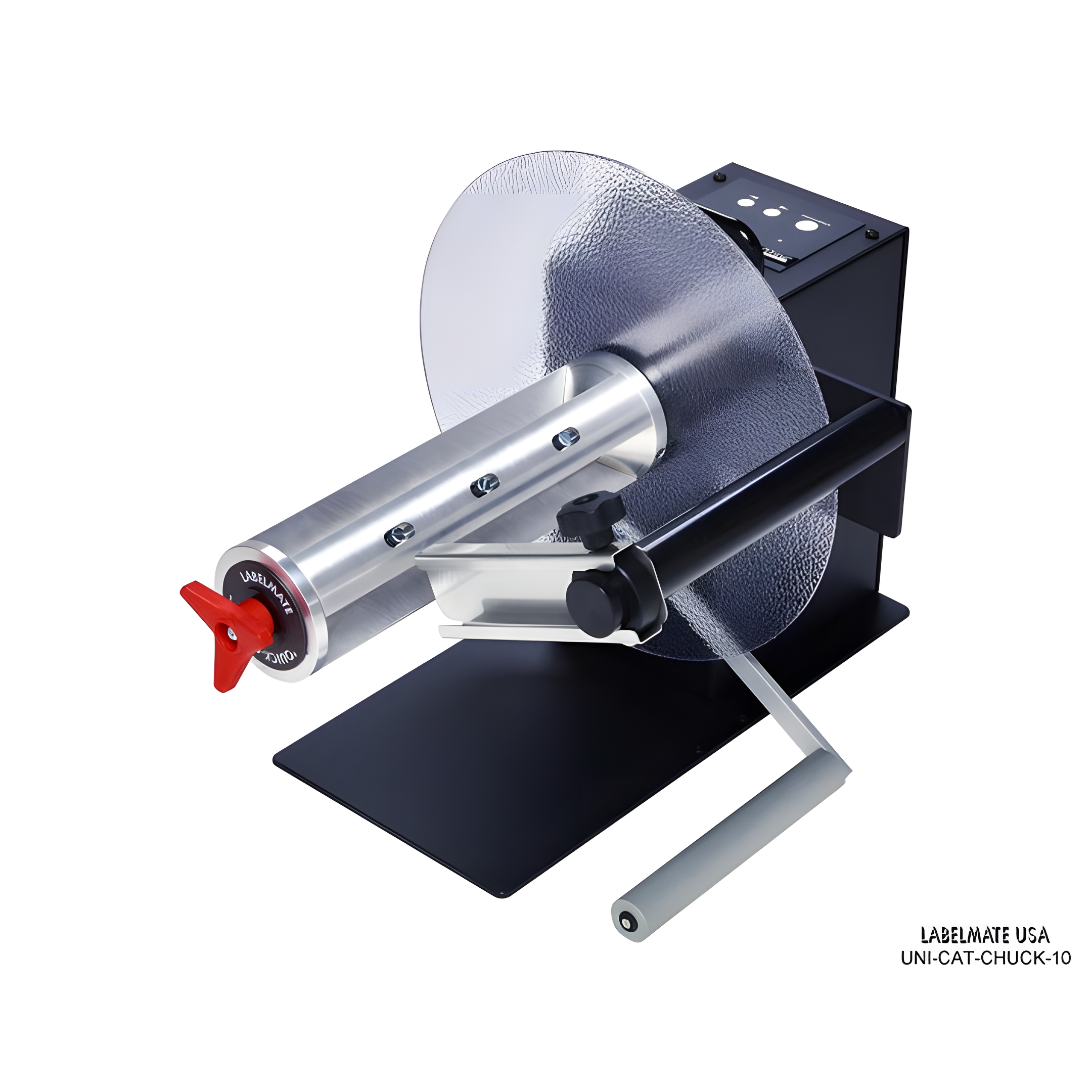

Labelmate UNI-CAT-CHUCK-10 Universal “Smart” Rewinder/Unwinder [10.5"]

SKU: UNI-CAT-CHUCK-10
|
Weight: 34 lbs.

Part Type Rewinder
Width (inches) 10.5 inch
Core Size 3.00 inch
Outer Diameter 12 inch OD

Product Highlights

Labelmate UNI-CAT-CHUCK-10, Universal “Smart” Rewinder/Unwinder for media up to 10.5” wide, Max. Roll Diameter: 12” (305mm), Core Diameter: 3” (76mm), Core Holder: Mechanical Chuck, Max. Media Width: 10.5” (266mm), Bi-directional “smart” Rewinder/Unwinder – Synchronized with Printer, Automatic responsive speed control – Synchronized with Printer, Speed up to 50 inches/sec (125cm/sec), Soft-touch control panel with LED status indicators, Rewind tension control, Automatic stop at end of roll, Full 5-Year Parts & Labor Limited Warranty, Part No. 80-203-0085

Item May Have Up to a 10-Day Lead Time. Please Contact Us for an Estimate or Quote.

Labelmate UNI-CAT-CHUCK-10 Universal “Smart” Rewinder/Unwinder for media up to 10.5” wide.

The new UNI-CAT Rewinder/Unwinder is the most intelligent and universal Winder inthe LABELMATE product line, and can be used as both a Rewinder and an Unwinder.The UNI-CAT synchronizes with the printer and automatically and imperceptibly changes direction with the printer. This makes the UNI-CAT the ideal companion for printers that back-feed or that are tension-sensitive. In addition, the UNI-CAT is self-teaching and automatically matches the speed of theprinter without the need of any operator intervention. The UNI-CAT also senses when the end of roll is reached and automatically stops rewinding. The rugged, heavy-gauge steel construction of the UNI-CAT enables it to be simply set in place in the desired position. Special anti-slip feet prevent the unit from moving.With various core sizes, label widths, roll diameters and options to choose from, there is a UNI-CAT Winder to fit virtually any job you may have.

Universal “Smart” Rewinder/Unwinder for media up to 10.5” wide.

  • Max. Roll Diameter: 12” (305mm)
  • Core Diameter: 3” (76mm)
  • Core Holder: Mechanical Chuck
  • Max. Media Width: 10.5” (266mm)
  • Bi-directional “smart” Rewinder/Unwinder – Synchronized with Printer
  • Automatic responsive speed control – Synchronized with Printer
  • Speed up to 50 inches/sec (125cm/sec)
  • Soft-touch control panel with LED status indicators
  • Rewind tension control
  • Automatic stop at end of roll
  • Full 5-Year Parts & Labor Limited Warranty

Shipping Information

  • Size: 20”x20”x11” (508x508x280mm)
  • Weight: 34 lbs. (15.4 kg)
MSRP: $1420.00
$1242.50
