Labelmate SLIT-200-DELUXE Complete Off-line Slitting Package [10", 3 Blades]

Labelmate SLIT-200-DELUXE Complete Off-line Slitting Package

Complete off-line Slitting Packages provide an excellent solution for slitting multi-up rows of labels from a single roll into multiple individual finish-rolls. Separator Disks are placed between the finish-rolls as they are rewound after being slit. Bi-directional CAT-3 Rewinders on either side of the Slitting Packages afford full tension control. Add up to two (2) additional Blades!

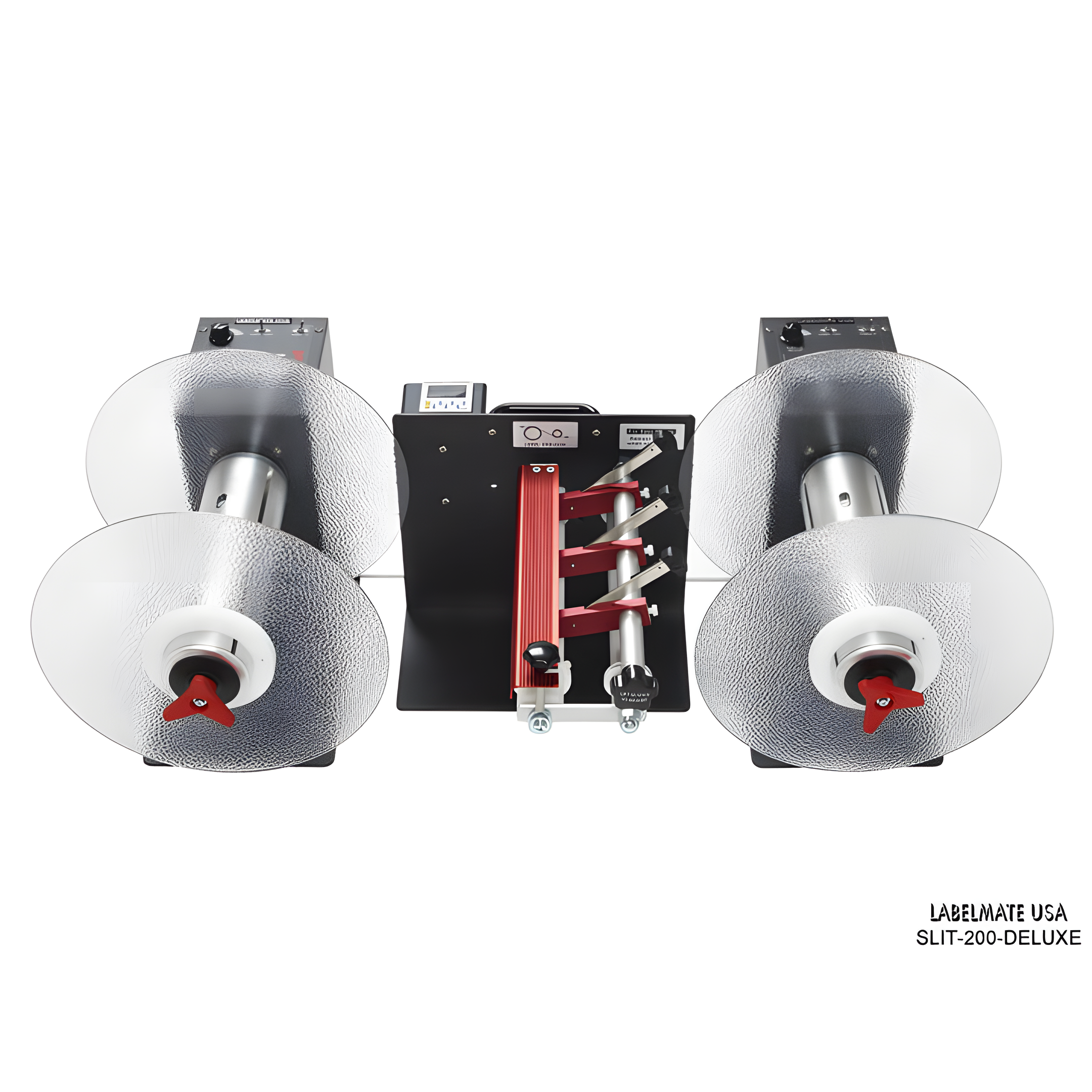

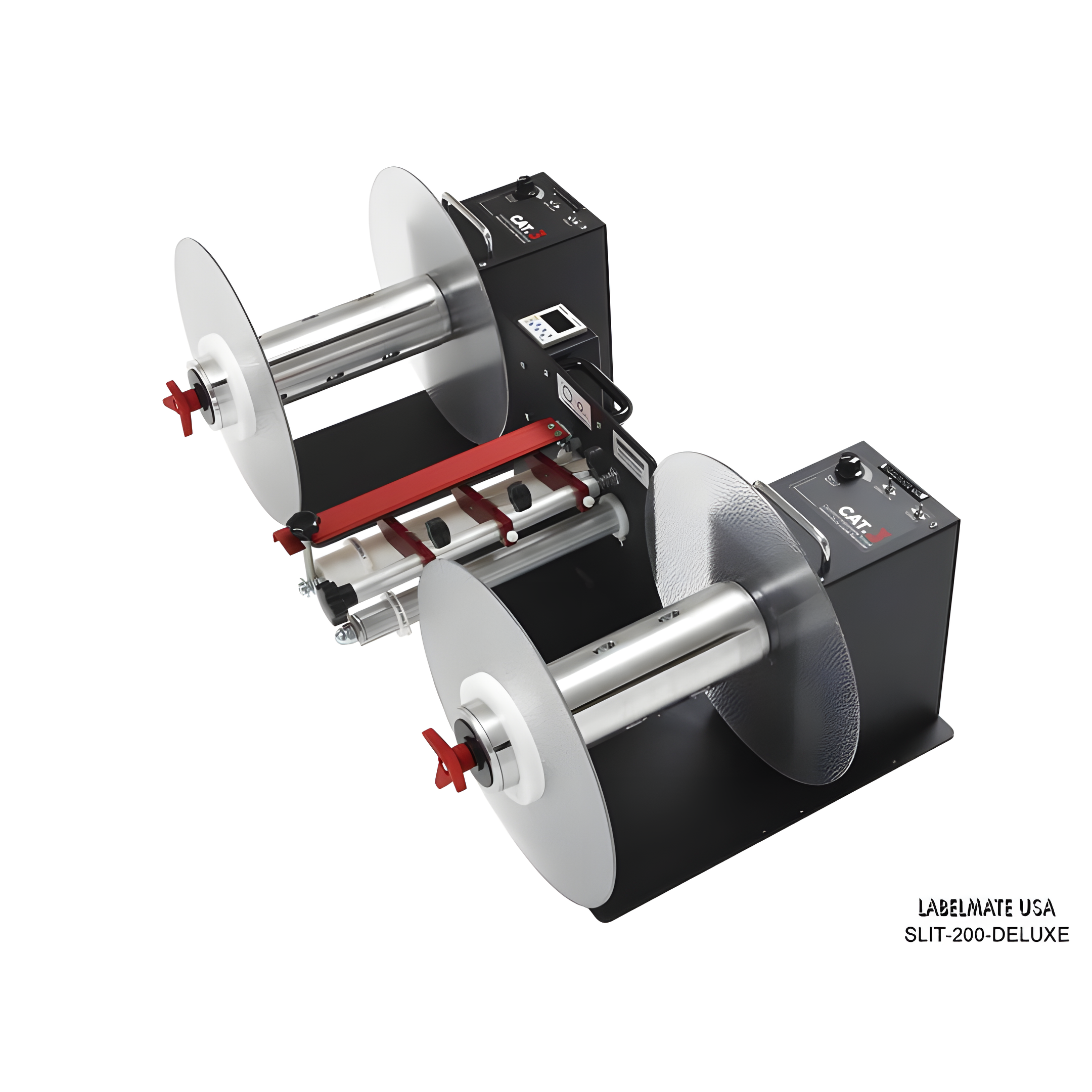

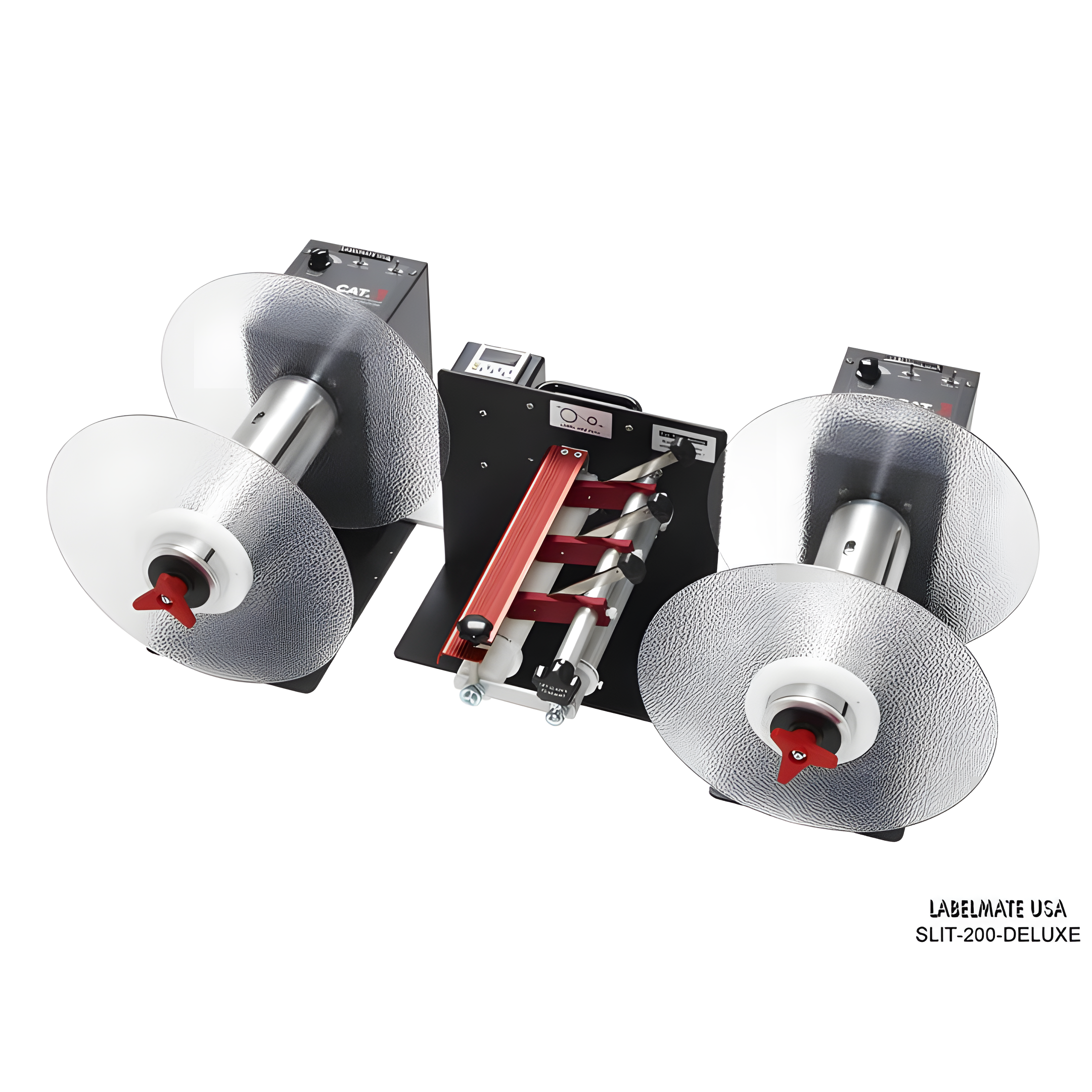

Complete Off-line Slitting Package, 3 blades.

• Number of Blades: 3
• Max. Media Width: 10” (254mm)
• Min. Media Width: 0.5” (12.7mm)
• Max. Roll Diameter: 12” (305mm)
• Core Diameter: 3” (76mm)
• Includes three (3) SP-76-220PL Plastic Disks to separate finish-rolls
• Includes Aluminum Locking Bar to maintain system alignment
• Note: PCS-1 Counter Option shown in photos is not included, and is purchased separately if desired.
• Warranty: 5-Year Parts & Labor Limited Warranty for the Rewinders; 3-Year Parts & Labor Limited Warranty for the S-100 Slitter.

Shipping Information

Slit Packages ship in three separate cartons as follows:

• Size: 20”x20”x11” (508x508x280mm)
• Weight: 31 lbs. (14 kg)

• Size: 20”x20”x11” (508x508x280mm)
• Weight: 31 lbs. (14 kg)

• Size: 16”x16”x12” (406x406x305mm)
• Weight: 16 lbs. (7.25 kg)
