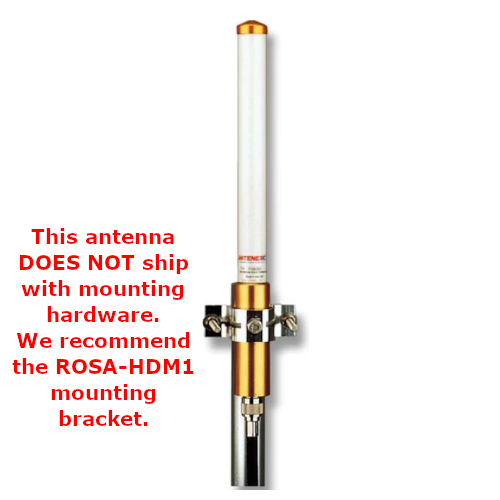

Laird FG8960 Rugged Outdoor Rated Fiberglass Omnidirectional Antenna
| Part Type | Antenna |
| Interface | Coaxial |
| Environment | Indoor/Outdoor |
Product Highlights
Laird FG8960, Rugged Outdoor Rated from 896 - 940 MHz Fiberglass Omnidirectional Antenna With Fixed N-Female Connector MNF# FG8960This antenna Does Not ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket. Contact us for to discuss your project.
Laird Omnidirectional Basestation Antennas
Laird Omnidirectional base station antennas are collinear designs enclosed in a high density fiberglass, which is covered with a protective ultraviolet inhibiting coating. The radiating elements are made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a "cold" sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.
FG8960 fiberglass omnidirectional base station antenna is a convenient and highly durable solution for base station or micro base station applications. It features superior quality design through heavy wall gold anodized aluminum mounting sleeve and a highly polished white UV treated fiberglass radome. *Note: This antenna DOES NOT ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket*
Specifications
| SKU | FG8960 |
|---|---|
| Manufacturer Part Number | FG8960 |
| Manufacturer | Laird |
| Antenna Category | 900 MHz |
| Working Frequency | 896-940 MHz |
| Gain | 0 dBd |
| Antenna Style | Omnidirectional Basestation Antenna |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 |
| Max Input Power (W) | 100 |
| VSWR: < X: 1 | <2.0:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Vertical/Elevation Beamwidth | 110 |
| Height/Length (inches) | 13.375 |
| Height/Length (mm) | 342.8 |
| Thickness/Diameter (inches) | 1.31 |
| Thickness/Diameter (mm) | 33 |
| Weight (lbs) | 0.65 |
| Weight (grams) | 290 |
| Material | Fiberglass |
| Operating Temp (celsius) | -40 TO +85 |
| Mount Style | Screw On |
| Color | White |
| Connector Type | Connector - Bottom |
| Connector 1 | N-Female |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
FG8960 fiberglass omnidirectional base station antenna is a convenient and highly durable solution for base station or micro base station applications. It features superior quality design through heavy wall gold anodized aluminum mounting sleeve and a highly polished white UV treated fiberglass radome.
*Note: This antenna DOES NOT ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket*
FEATURES
- High performance
- 100% tested on a network analyzer before shipping
- Special UV protection coating resist sun damage
- Easy installation with optional FM2SP Mount Kit
- N Female industry standard connector
MARKETS
- Omnidirectional outdoor antenna applications used in commercial, public safety, and government applications around the globe
- Typical applications include land based and marine radio and voice and data transmission
