Laird 6 Element Yagi Antenna
SKU: Y8966
Weight: 3.9
lbs.
| Part Type | Antenna |
| Environment | Indoor/Outdoor |
| Gain | 9 dBi |
| Polarization | Linear |
| Minimum Order Quantity | 4 |
Product Highlights

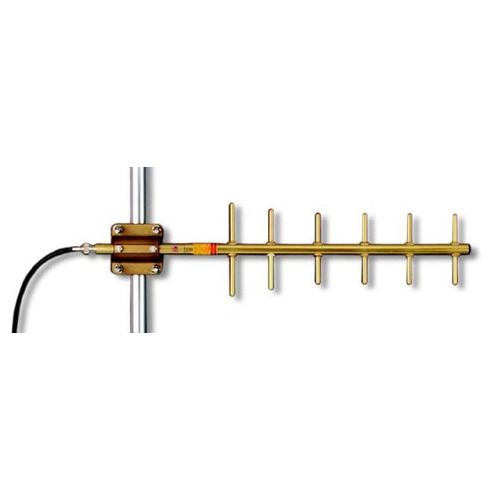

Laird 6 Element Yagi Antenna - 896-970 MHZ - 9 dB MNF# Y8966
Spec. Sheet
Laird Yagi Antennas
Laird Yagi antennas, renowned for their directional signal reception, revolutionize wireless communication. Combining precision engineering with advanced materials, they enhance connectivity across vast distances. The design of Yagi antennas allows them to focus their radiated energy in a specific direction, providing high gain and increased signal strength in that direction while attenuating signals from other directions.
The Y8966 Yagi antenna operates in the 896 - 970 MHz frequency range with a maximum power input of 300 watts. ***This item is subject to an MOQ of 4 pcs***
Specifications
| SKU | Y8966 |
|---|---|
| Manufacturer Part Number | Y8966 |
| Manufacturer | Laird |
| Antenna Category | 900 MHz |
| Working Frequency | 896-970 MHz |
| Gain | 9dBd |
| Antenna Style | Yagi Antenna |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Directional |
| Max Input Power (W) | 300 Watts |
| VSWR: < X: 1 | < 2.0:1 |
| Front/Back Ratio (Db) | 20 |
| No Of Elements | 6 |
| Height/Length (inches) | 27.688 |
| Width (inches) | 6.75 |
| Weight (lbs) | 3.9 |
| Material | Anodized Aluminum |
| Mount Style | Mast Mount Bracket Included |
| Connector 1 | N-Female |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
The Y8966 is a 6-element antenna with 9 dB gain with a maximum power input of 300 watts. The antenna is gold-anodized and fully welded to create a greater gain because of its ability to focus a signal in one direction. The yagi is terminated with an N Female connector and includes the stainless steel U-bolts for up to 1-5/8 inch mounting hardware. The internal matching design of this yagi directional antenna will not ice up, detune, or corrode.
