Laird YF45018-61NF Yagi Antenna YF45018-61NF
Laird YF45018-61NF Yagi Antenna YF45018-61NF

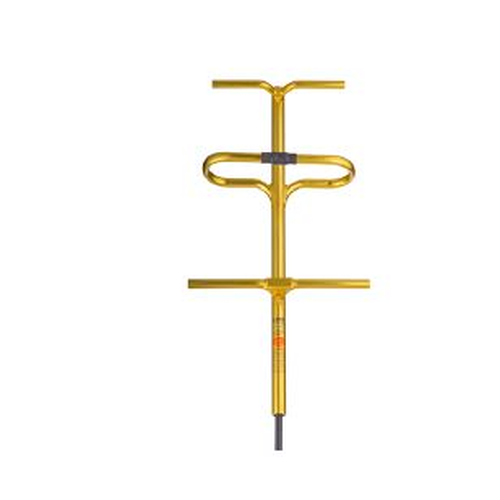

Laird YF45018-61NF Yagi Antenna

Laird YF45018-61NF Yagi Antenna

SKU: YF45018-61NF
|
Weight: 3.03 lbs.

Part Type Antenna
Environment Indoor/Outdoor
Gain 9 dBi
Polarization Linear
Minimum Order Quantity 3

Product Highlights

Laird YF45018-61NF: Yagi Antenna for 450-490 MHz with N-Female Connector MNF# YF4501861NF

Laird Yagi Antennas

Laird Yagi antennas, renowned for their directional signal reception, revolutionize wireless communication. Combining precision engineering with advanced materials, they enhance connectivity across vast distances. The design of Yagi antennas allows them to focus their radiated energy in a specific direction, providing high gain and increased signal strength in that direction while attenuating signals from other directions.


YF45018-61NF is a Yagi Antenna operating within 450-490 MHz frequency range. This design provides excellent performance and durability for point-to-point and multi-point / directional outdoor antenna application used by private organization and government agencies. These are typically used for transportation such as railroad switching, remote locations reporting examples that include oil fields, weather conditions and, meter data transmissions for utilities.

Please note: This item has a minimum order qty of 3 pcs.


Specifications

SKU YF4501861NF
Manufacturer Part Number YF45018-61NF
Manufacturer Laird
Antenna Category UHF (380-600 MHz)
Working Frequency 450-490 MHz
Gain 9.1 dBi
Antenna Style Yagi Antenna
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Directional
Impedance 50 Ohm
Max Input Power (W) 250
VSWR: < X: 1 1.7:1
Front/Back Ratio (Db) 15 dB
Horizontal/Azimuth Beamwidth 90
Vertical/Elevation Beamwidth 62
Height/Length (inches) 18
Height/Length (mm) 457
Width (inches) 12
Width (mm) 305
Thickness/Diameter (inches) 3.86
Thickness/Diameter (mm) 98
Weight (lbs) 3.03
Weight (grams) 1370
Operating Temp (celsius) -30 to +70
Cable Type RG213/U
Cable Length (inches) 24
Cable Length (mm) 610
Connector 1 N-Female
IP Rating IP67
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New

YF45018-61NF is a Yagi Antenna operating within 450-490 MHz frequency range. This design provides excellent performance and durability for point-to-point and multi-point / directional outdoor antenna application used by private organization and government agencies. These are typically used for transportation such as railroad switching, remote locations reporting examples that include oil fields, weather conditions and, meter data transmissions for utilities.
