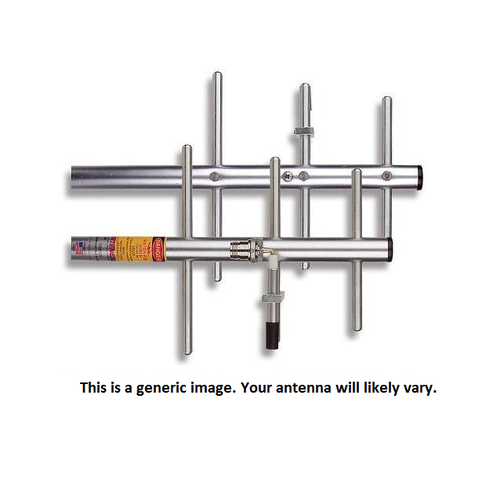

Laird YS4306 Yagi Antenna
| Part Type | Antenna |
| Environment | Indoor/Outdoor |
| Gain | 12 dBi |
| Polarization | Linear |
Product Highlights
Laird YS4306: Yagi for 434 MHz CTT / MOTUS Tracking Systems, 6 element, 12 dBi, N-Female Connector MNF# YS4306
Spec. Sheet
Laird Yagi Antennas
Laird Yagi antennas, renowned for their directional signal reception, revolutionize wireless communication. Combining precision engineering with advanced materials, they enhance connectivity across vast distances. The design of Yagi antennas allows them to focus their radiated energy in a specific direction, providing high gain and increased signal strength in that direction while attenuating signals from other directions.
The YS4306 is a heavy duty, directional Yagi antenna for 430-450 MHz. It is built from aluminum with 6 elements, providing 12 dBi of linear gain. This antenna is widely use for migratory tracking of birds as well as turtles using the CTT LifeTag and PowerTag at 434 MHz.
Specifications
| SKU | YS4306 |
|---|---|
| Manufacturer Part Number | YS4306 |
| Manufacturer | Laird |
| Antenna Category | UHF (380-600 MHz) |
| Working Frequency | 430-450 MHz |
| Gain | 12 dBi |
| Antenna Style | Yagi Antenna |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Directional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | 1.5:1 |
| Front/Back Ratio (Db) | 17 |
| No Of Elements | 6 |
| Height/Length (inches) | 44 |
| Height/Length (mm) | 1117.6 |
| Weight (lbs) | 4 |
| Weight (grams) | 1814.4 |
| Operating Temp (celsius) | (-30 to 70) C |
| Color | Chrome |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
Laird – Antenex Aluminum Yagi Antennas Are An Economical Choice for High Performance And Long Service Life. These Yagis Are Gamma Matched for Best Performance. Every antenna Is Covered By A Five-Year Factory Warranty.
The YS4306 from Laird (formerly Antenex) is made from heavy duty aluminum, terminated with a fixed N-Female connector, and includes a basic mounting bracket kit.
FEATURES AND BENEFITS:
- Frequency: 430-450 MHz
- Number of elements: 6
- Gain: 12 dBi
- Fixed N-Female Connector
- Die Cast Mounting Bracket Included
- Five Year Factory Warranty
*Please note: Yagi antennas are able to be mounted in either the vertical or horizontal plane. The waves leave Yagi antennas in the same plane as the elements. If the elements are up and down, the polarity (or polarization) is vertical. It is necessary to have antennas at both ends of the communications link of the same polarity. Mobile systems traditionally have all antennas vertically polarized. For dedicated Yagi-to-Yagi links either polarization may be selected but be sure to choose the same for both ends of the path.
