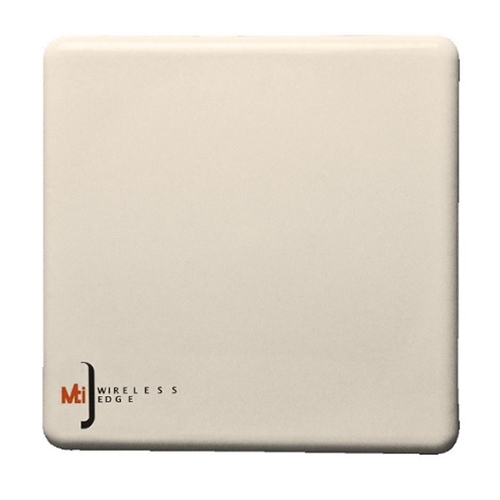

MTI MT-263003/N 12x12 Inch Linearly Polarized UHF RFID Panel Antenna
| Region | US |
| Environment | Indoor/Outdoor |
| Gain | 10.5 dBi |
| Polarization | Linear |
| Read Range | Far Field |
| RFID Frequency | UHF |
Product Highlights
MTI MT-263003/N: 12x12 inch Linearly Polarized UHF RFID Panel Antenna - Fixed N-Female - FCC MNF# MT263003N, MT-263003/NFrequently Bought Together
- MTI MT-120018/A Heavy Duty Antenna Mount ( SKU: MT-120018-A ) $39.00
- MTI MT-120018 Heavy Duty Antenna Mount ( SKU: MT-120018 ) $39.00
- MTI MT-120019 Heavy Duty Antenna Mounting Bracket ( SKU: MT-120019 ) $58.00
MTI Wireless Edge - Innovative Antennas Developer
MTI Wireless Edge develops and manufactures high quality antennas for 5G Backhaul, Commercial, Military and RFID markets. Focused on the future, MTI Wireless Edge antennas developer and manufacturer, is a part of the MTI Group, and is always at the forefront of innovation, developing groundbreaking technologies, frequencies, and innovative antennas.
The MT-263003/N from MTI is a 12x12 inch, IP67 rated linearly polarized RFID antenna operating at 902-928 Mhz FCC with 10.5 dBic gain and a fixed N female connector.
Specifications
| SKU | MT263003N |
|---|---|
| Manufacturer Part Number | MT-263003/N |
| Manufacturer | MTI |
| Antenna Category | RFID (865-928 MHz) |
| Working Frequency | 902-928 MHz |
| Gain | 10.5dBi |
| Polarity | Linear |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Directional |
| Impedance | 50 ohms |
| Max Input Power (W) | 6 |
| VSWR: < X: 1 | 1.5:1 |
| Height/Length (mm) | 305 |
| Width (mm) | 305 |
| Thickness/Diameter (mm) | 25 |
| Weight (grams) | 1500 |
| Material | Plastic |
| Operating Temp (celsius) | (-45°C) to 70°C |
| Mount Pattern | 100mm VESA |
| OK for Outdoor Use | Yes |
| Accessory 1 | MT-120018 |
| Product Condition | New |
The MT-263003/N Circularly Polarized outdoor RFID Antenna from MTI measures in at 12x12 inches. This unit operates at 10.5 dBic gain, covers50x50 degrees beamwidth, and is an excellent choice for passive UHF RFID applications in the FCC band of 902-928 Mhz. The MT-263003/N carries an IP67 rating and is perfect for outdoor installations such as parking gates, overhead race timing trusses and distribution center yards. It comes with a fixed N-female connector on the back plate and 4 threaded mounting studs.
Use MT-120018 mounting bracket.
