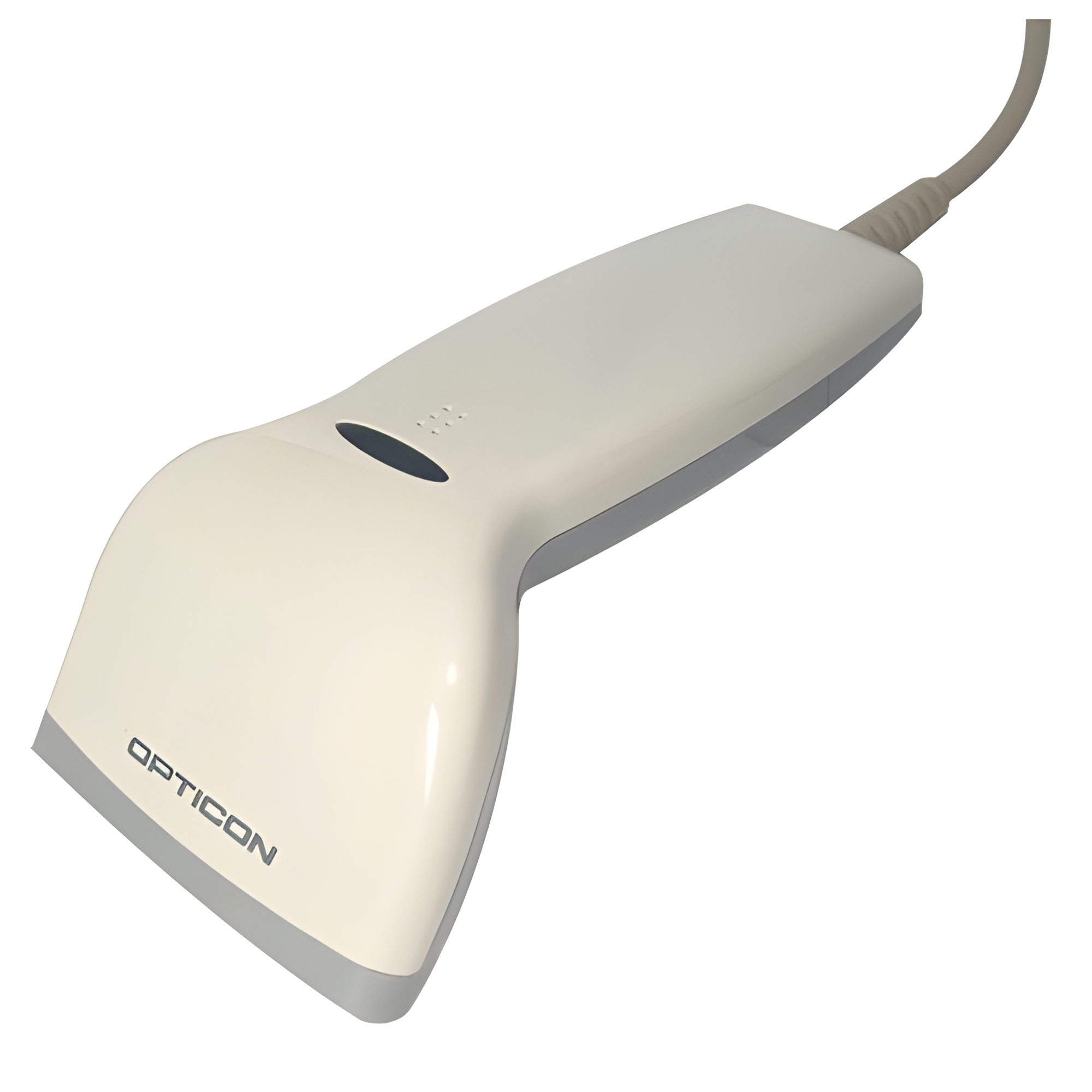

Opticon C37 Scanner C37WR1-00
Opticon C37 Scanner C37WR1-00
Opticon C37 Scanner C37WR1-00
Opticon C37 Scanner C37WR1-00
Opticon C37 Scanner

Opticon C37 Scanner

SKU: C37WR1-00
|
Weight: 0.5 lbs.

Connectivity Corded
Scanner Type 1D Linear Imager CCD
Form Factor Handheld
Scanner Includes Corded Kit [Cable]
Scan Pattern LED Beam
Scan Range Standard
Interface Serial USB Keyboard Wedge USB-A
Feature Scan Feedback

Product Highlights

Opticon, C37 CCD Scanner, Corded, RS232 (White)

Opticon C37

Operating Indicators

Visual: 1 LED (Red/Green/Orange) Non-Visual: Buzzer

Operating Keys

Entry Options: 1 Scan Key

Communication

RS232: DB9 PTF Connector With External Power Supply Keyboard Wedge

MINIDIN6 F/M Connector USB: Version 1.1, HID/V CP , USB- A connector

Power

Voltage Requirement: 5V ± 10% (Kyboard Wedge and USB), 6V Minimum

4.5, Max. 6.6V RS232

Barcode Scanner Optics

Light Sorce: 630 NM Red LED Scan Method: CCD Linear Sensor 2500 Pixels Scan Rate: 200 Scans/SEC Trigger Mode: Manual, Auto-Trigger Reading Pitch Angle: -30 to 0°, 0 to +30° Reading Skew Angle: -70 to -20°, 20 to +70° Reading Tilt Angle: -25 to 0°, 0 to +25° Curvature: r>15 mm (EAN8), r>20 mm (EAN13) Minimum ResolutiOn at PCS 0.9: 0.125 mm / 5 mil Depth of Field: at PCS 0.9, Code 39 0 - 15 mm / 0 - 0.59 in

Supported Symbologies

Barcode (1D): JAN/UPC/EAN Includes Add-on, CODABAR/NW-7, CODE 11, CODE 39, CODE 93, CODE 128, GS1-128 (EAN-128), GS1 DATABAR (RSS), iata , Industrial 2 of 5, Interleaved 2 of 5, ISBN-ISSM-ISSN, Matrix 2 of 5, MSI/PLESSEY, S-Code, Telepen, Tri-optic, UK/PLESSEY Postal Code: Chinese Post, Korean Postal Authority Code Durability Temperature in Operation: 0 to 50 °c / 32 to 122 °F temperature in Storage: -20 to 60 °c / -14 to 140 °F Humidity in Operation: 5 - 95% (Non-Condensing) Humidity in Storage: 5 - 95% (Non-Condensing) Amnient Light Immunity: Fluoresecent 10,000 lx Max, Incandescent 10,000 lx Max Drop Test: 1.5 m / 5 ft Drop Onto Concrete Surface VibratiOn Test: 10 - 100 HZ with 2g for 1 Hour Protection Rate: IP42

pHysicaL

dimensiOns (W x H x d): 53 x 75 x 150 mm / 2.09 x 2.95 x 5.91 in WeigHt BOdy: ca. 90 g / 3.2 oz (excl. cable) c ase: aBs, Black, White

reguLatOry & saFety

pr Oduct cOmpLiance: ce , F cc , V cci, r oHs encLOsed items pOWer suppL y: 100-240V/0.5a , 50/60 Hz, 6V/2a (for rs232)

mOdeLs

interF ace VersiOns: rs232, k eyboard Wedge, usB cOLOr VersiOns:

MSRP: $139.00
$68.75

Temp. Out of Stock;
Available to Order
This item is currently out of stock. This manufacturer may have options with similar features. Contact us for lead time or another product that may work for you. If you place the order now, we will inform you when the item will be ready. You will not be charged until the order is ready to ship.
