PCTEL 3911D-HR-36IN-SMA Antenna

PCTEL Low Profile/Phantom Antennas

PCTEL's Low Profile/Phantom Antennas offer a tough, whipless design featuring omni-directional radiation and vertical polarization. This innovative structure ensures frequency agility, low visibility, and a superior low-angle radiation pattern compared to traditional gain antennas. Key features include easy installation with optional NMO mounts and a UV-treated radome for sun damage resistance. Ideal for public safety, transportation, commercial, industrial communication, and Internet of Things (IoT) applications, these antennas provide robust performance in diverse environments.

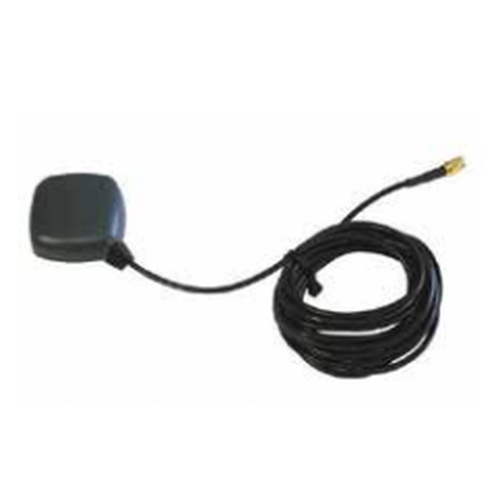

The 3911D-HR low interference GPS Antenna with Dual SAW High Rejection Filters allow excellent performance in high RF noise environments as found on vehicles with multiple antennas. It is ideal for fleet tracking, public safety, transit, precision agricultural and military applications. The 3911D-HR features ESD circuit protection, an innovative two-stage low noise amplifier and a dual SAW high rejection filter. It also features a custom designed ceramic patch element that minimizes detuning effects caused by adjacent objects. The 3911D-HR provides consistent, clear GPS signal reception while minimizing loss-of-lock in high-RF fields. Housed in a weatherproof magnetic or screw mount enclosure, the 3911D-HR GPS antenna is ideal for demanding vehicle mounted GPS applications.

Features

• High rejection dual SAW filters allow placement near other transmitting antennas
• Low current: 7.5 mA @ 3.3V
• Wide voltage input range (2.7 - 5 VDC)
• Robust IP67 housing built for various weather conditions
