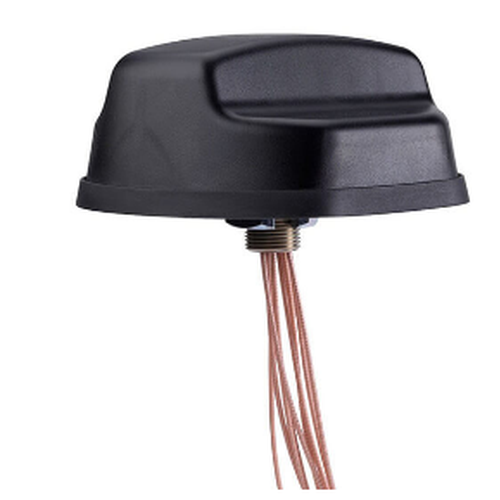

PCTEL GL4X4-SF-PLK PCTel Multi-Band Antenna
SKU: GL4X4-SF-PLK
Weight: 1
lbs.
| Part Type | Antenna |
| Interface | 4G Cellular 5G GPS Wi-Fi |
| Environment | Indoor/Outdoor |
| Gain | 2.6 dB 4.3 dB 5.4 dB 7.1 dB 7.6 dB |
| Polarization | Linear |
Product Highlights
PCTEL GL4X4-SF-PLK: PCTel Multi-Band MIMO High Rejection 5G & 4G LTE & GNSS 5x SMA Male MNF# GL4X4SFPLK
Spec. Sheet
PCTEL Multi-Band (Cellular/WiFi/GPS) Antennas
PCTEL Multi-Band Antennas offer comprehensive connectivity solutions, integrating cellular, WiFi, and GPS functionalities in a single unit. These antennas are designed for optimal performance in diverse applications such as fleet management, public safety, and IoT. Their robust construction ensures reliable operation in harsh environments, while the multi-band capability reduces the need for multiple antennas, simplifying installation and maintenance. PCTEL's advanced engineering ensures superior signal quality and coverage, making them a preferred choice for high-performance, multi-network communications.
The Coach™ II dual-carrier antenna platform supports the high speed requirements of complex RF communication systems.
Specifications
| SKU | GL4X4SFPLK |
|---|---|
| Manufacturer Part Number | GL4X4-SF-PLK |
| Manufacturer | PCTEL |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 600-698 MHz |
| Gain | 2.6 dB |
| Working Frequency 2 | 698-802 MHz |
| Gain 2 | 4.3 dB |
| Working Frequency 3 | 824-960 MHz |
| Gain 3 | 5.4 dB |
| Working Frequency 4 | 1710-2200 MHz |
| Gain 4 | 7.6 dB |
| Working Frequency 5 | 2300-2690 MHz |
| Gain 5 | 7.1 dB |
| Working Frequency 6 | 3400-3800 MHz |
| Gain 6 | 6.9 dB |
| Working Frequency 7 | 2400-2500 MHz |
| Gain 7 | 9.1 dB |
| Working Frequency 8 | 4900-5900 MHz |
| Gain 8 | 11.4 dB |
| Working Frequency 9 | 698-960 MHz |
| Gain 9 | 15 dB |
| Working Frequency 10 | 1.71-2.7 GHz |
| Gain 10 | 25 dB |
| Antenna Style | Multi Element/Band Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohm |
| Max Input Power (W) | 25 |
| Height/Length (inches) | 5.1 |
| Height/Length (mm) | 130 |
| Width (inches) | 3.6 |
| Width (mm) | 92 |
| Material | UV-Stable Rugged Thermoplastics |
| Operating Temp (celsius) | -40°C to +85°C |
| Mount Style | Permanent |
| Color | Black |
| Number of Cables | 5 |
| Connector 1 | SMA-Male |
| Connector 2 | SMA-Male |
| Connector 3 | SMA-Male |
| IP Rating | IP67 |
| Vehicular | Yes |
| Product Condition | New |
The Coach™ II dual-carrier antenna platform supports the high speed requirements of complex RF communication systems used for Intelligent Transportation Systems (ITS), and IIoT applications. These antennas feature four 5G elements compatible with the world’s leading multi-carrier cellular routers that support 600 MHz to 3800 MHz frequencies. The platform also incorporates 802.11ax Wi-Fi MIMO connectivity, with four dual band 2.4/5 GHz Wi-Fi elements supporting DSRC 5.99 GHz applications. In addition, PCTEL’s proprietary high-rejection multi-GNSS technology is included for high precision tracking and asset management.
Features
- Metal 1-inch stud mount with slotted jam nut provides single cable exit for easier installation and/or antenna replacement
- IP67 compliant design provides maximum protection against water or dust ingress under severe environmental conditions (when installed on sealed surface)
- Proprietary high rejection filtering allows wide-band coverage while achieving superior out-of-band rejection for all GNSS frequencies
