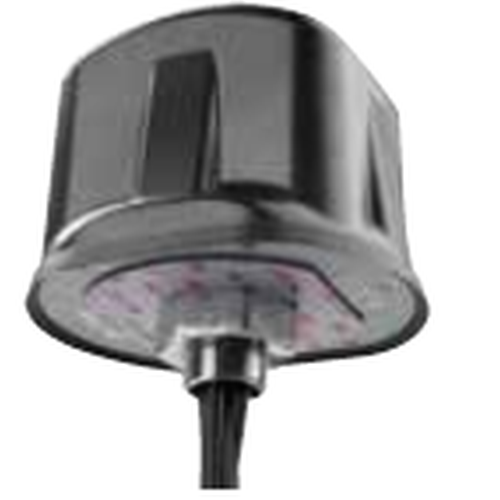

PCTEL GLHPDLTEMIMO-LTB PCTel Trooper Multi-Band Antenna
| Part Type | Antenna |
| Interface | Cellular GPS Wi-Fi |
| Environment | Indoor/Outdoor |
| Gain | 2.5 dBi 4 dBi |
| Polarization | Linear |
Product Highlights
PCTEL GLHPDLTEMIMO-LTB: PCTel Trooper Multi-Band LTE MIMO & 802.11ac with High Rejection GPS/GLONASS, Compact Footprint 600-960 MHz/1710-2700 MHz + GNSS SMA Male MNF# GLHPDLTEMIMOLTB
Spec. Sheet
PCTEL Multi-Band (Cellular/WiFi/GPS) Antennas
PCTEL Multi-Band Antennas offer comprehensive connectivity solutions, integrating cellular, WiFi, and GPS functionalities in a single unit. These antennas are designed for optimal performance in diverse applications such as fleet management, public safety, and IoT. Their robust construction ensures reliable operation in harsh environments, while the multi-band capability reduces the need for multiple antennas, simplifying installation and maintenance. PCTEL's advanced engineering ensures superior signal quality and coverage, making them a preferred choice for high-performance, multi-network communications.
The Trooper antennas provide optimal 4G LTE and dual-band 802.11ac Wi-Fi coverage in a single, low-profile housing. Its compact footprint makes this antenna ideal for installation on surfaces with limited surface space, including leading public safety vehicle rooftops and many machine-to-machine applications. The antennas also incorporate PCTEL’s unique high rejection GPS/GLONASS technology for optimal performance and support of carrier voice and data networks.
Specifications
| SKU | GLHPDLTEMIMOLTB |
|---|---|
| Manufacturer Part Number | GLHPDLTEMIMO-LTB |
| Manufacturer | PCTEL |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 698-960 MHz/1710-2700 MHz |
| Gain | 2.5 dBi |
| Working Frequency 2 | 2.4-2.5 GHz/4.9-5.9 GHz |
| Gain 2 | 4 dBi |
| Antenna Style | Multi Element/Band Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohm |
| Max Input Power (W) | 50 |
| VSWR: < X: 1 | < 2.0:1 |
| Height/Length (inches) | 3.46 |
| Height/Length (mm) | 88 |
| Width (inches) | 4.05 |
| Width (mm) | 103 |
| Material | UV-Stable Rugged Thermoplastics |
| Operating Temp (celsius) | -40°C to +85°C |
| Mount Style | Permanent |
| Color | Black |
| Cable Length (inches) | 204 |
| Cable Length (mm) | 5000 |
| Connector 1 | SMA-Male |
| Connector 2 | RP SMA-Male |
| IP Rating | IP67 |
| Vehicular | Yes |
| Product Condition | New |
The Trooper antennas provide optimal 4G LTE and dual-band 802.11ac Wi-Fi coverage in a single, low-profile housing. Its compact footprint makes this antenna ideal for installation on surfaces with limited surface space, including leading public safety vehicle rooftops and many machine-to-machine applications. The antennas also incorporate PCTEL’s unique high rejection GPS/GLONASS technology for optimal performance and support of carrier voice and data networks.
Features
- No tune, multi-band coverage: dual 4G LTE, 802.11ac Wi-Fi and GPS L1/GLONASS frequencies
- Metal 3/4-inch stud mount with slotted jam nut provides single cable exit for easier installation and/or antenna replacement
- IP67 compliant design provides maximum protection against water or dust ingress under severe environmental conditions*
- UV-resistant black or white housing options complement most vehicular aesthetic requirements
