PCTEL Multi-Band (Cellular/WiFi/GPS) Antennas
PCTEL Multi-Band Antennas offer comprehensive connectivity solutions, integrating cellular, WiFi, and GPS functionalities in a single unit. These antennas are designed for optimal performance in diverse applications such as fleet management, public safety, and IoT. Their robust construction ensures reliable operation in harsh environments, while the multi-band capability reduces the need for multiple antennas, simplifying installation and maintenance. PCTEL's advanced engineering ensures superior signal quality and coverage, making them a preferred choice for high-performance, multi-network communications.

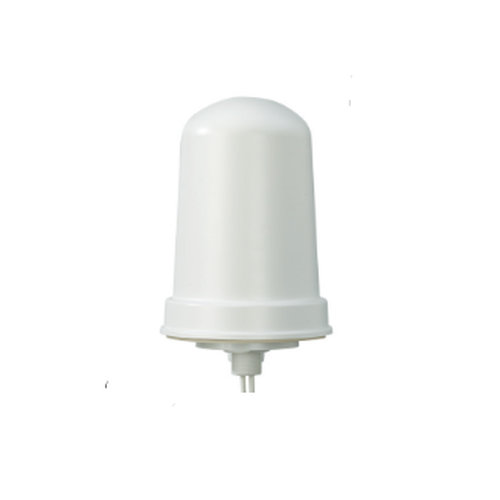

These VenU antennas are omnidirectional, operating at both the 2.4 GHz and the 5 GHz bands. They are designed to support access points offering 802.11n, ac coverage. The antennas are suitable for both indoor and outdoor installations, and include mounting hardware for wall/mast or ceiling mount applications, depending on the model.
Specifications
| SKU |
MPMI24584RPSMA |
| Manufacturer Part Number |
MPMI2458-4-RPSMA |
| Manufacturer |
PCTEL |
| Antenna Category |
WiFi (2.4 & 5.0 GHz) |
| Working Frequency |
2.4-2.5 GHz / 4.9-5.9 GHz |
| Gain |
5 dBi / 7 dBi |
| Antenna Style |
Panel Antenna |
| Polarity |
Linear |
| Bands |
Multi |
| SISO or MIMO |
MIMO |
| Directional or Omni |
Omnidirectional |
| Impedance |
50 ohm |
| Max Input Power (W) |
50 |
| VSWR: < X: 1 |
< 2.0:1 |
| Height/Length (inches) |
8.6 |
| Height/Length (mm) |
218 |
| Thickness/Diameter (inches) |
6.3 |
| Thickness/Diameter (mm) |
160 |
| Material |
PC (UV-Stabilized) |
| Operating Temp (celsius) |
-30°C to +70°C |
| Mount Style |
Permanent |
| Color |
White |
| Number of Cables |
4 |
| Cable Length (inches) |
36 |
| Cable Length (mm) |
914 |
| Connector 1 |
RP SMA-Male |
| IP Rating |
IP54 |
| OK for Outdoor Use |
Yes |
| Product Condition |
New |
These VenU antennas are omnidirectional, operating at both the 2.4 GHz and the 5 GHz bands. They are designed to support access points offering 802.11n, ac coverage. The antennas are suitable for both indoor and outdoor installations, and include mounting hardware for wall/mast or ceiling mount applications, depending on the model.
Features
- Omnidirectional antenna for indoor or outdoor operation
- Operates over the entire 2.4 and 5 GHz band
- MIMO enclosure - three, four, or six antennas in the same housing
- White UL94 V0 radome
- Plenum rated, outdoor capable coaxial cables
- Azimuth and elevation plane adjustable wall or mast mount
