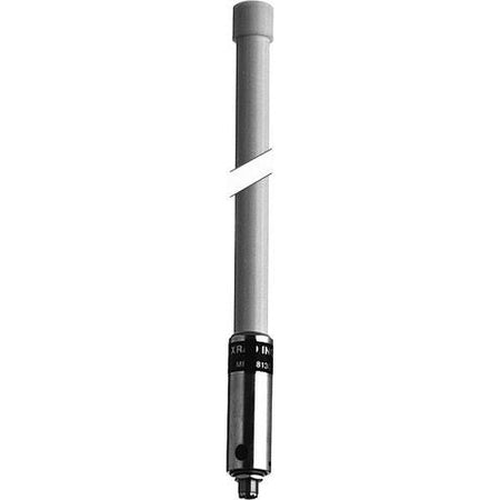

PCTEL MFB9155 Fiberglass Omnidirectional Antenna
| Part Type | Antenna |
| Environment | Indoor/Outdoor |
| Gain | 5 dBi |
| Frequency Ranges | 900 MHz |
| Polarization | Linear |
Product Highlights
PCTEL MFB9155: PCTEL / Maxrad Fiberglass Omnidirectional Antenna - ISM 902-928 - 5 dB - N Female MNF# MFB9155
Spec. Sheet
PCTEL Omnidirectional Base Station Antennas
PCTEL's Omnidirectional Basestation Antennas boast collinear designs encased in high-density fiberglass, shielded by a protective UV coating. Crafted with high-efficiency copper elements meticulously phased for optimal horizontal gain, these antennas ensure top-notch performance. Their mounting sleeves are finely tuned to nullify RF currents, facilitating versatile installation. Offering unparalleled gain and efficiency, they excel in various networks including Public Safety, Mission Critical Communication, LTE, and IoT.
The MFB 900/800 MHz series is base matched half-wave antennas encapsulated in heavy-duty fiberglass radomes with a thick-walled aluminum mounting base for reliable long term use. All models are DC grounded and UPS shippable.
Specifications
| SKU | MFB9155 |
|---|---|
| Manufacturer Part Number | MFB9155 |
| Manufacturer | PCTEL |
| Antenna Category | 900 MHz |
| Working Frequency | 902-928 MHz |
| Gain | 5 dBd |
| Antenna Style | Omnidirectional Basestation Antenna |
| Polarity | Vertical |
| VSWR: < X: 1 | 1.5:1 |
| Height/Length (inches) | 48 |
| Width (inches) | 3.4 |
| Weight (lbs) | 1.75 |
| Number of Cables | 1 |
| Cable Length (inches) | 16 |
| Connector 1 | N-Female |
| Ground Plane Required | No |
| Product Condition | New |
The MFB 900/800 MHz series is base matched half-wave antennas encapsulated in heavy-duty fiberglass radomes with a thick-walled aluminum mounting base for reliable long term use. All models are DC grounded and UPS shippable.
Features
- White ultra-violet resistant pultruded fiberglass radome
- Thick-walled aluminum mounting base
- Unity/3 dB/5 dB/7 dB models
- UPS shippable
- Factory tuned
