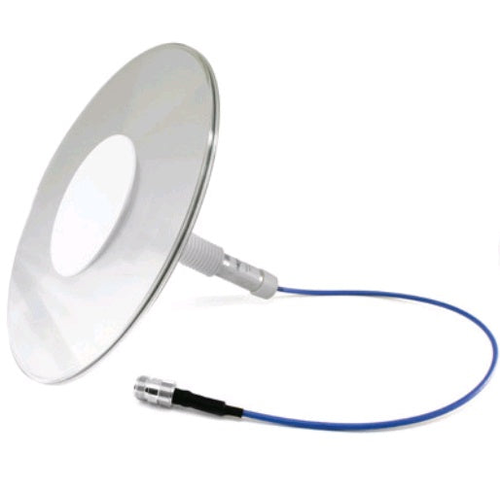

Pulse DASUTWC500NF White Clarity Series Ceiling Mount
SKU: DASUTWC500NF
Weight: 1.65
lbs.
| Part Type | Antenna |
| Interface | Cellular 3G 4G Wi-Fi |
| Environment | Indoor/Outdoor |
| Gain | 5 dBi 7 dBi |
| Polarization | Linear |
Product Highlights
Pulse DASUTWC500NF: White Clarity Series Ceiling Mount for 2g, 3g, 4g(lte) and Wifi Band with N-Female Connector MNF# DASUTWC500NFPulse Electronics Ceiling Mount Antennas
Pulse Electronics Ceiling Mount Antennas offer unparalleled connectivity solutions for diverse applications. Engineered with cutting-edge technology, these antennas ensure robust signal reception and transmission, enhancing network performance. Whether it's in offices, factories, or public spaces, Pulse Electronics delivers reliable and efficient antenna solutions, empowering seamless communication in modern environments.
Clarity series White ultra thin ceiling mount for 2g, 3g, 4g(lte) and wifi band with N-Female connector -Ceiling Mount indoor omni antenna for T-Mobile 600 MHz 4G/LTE band (610-698 MHz)
Specifications
| SKU | DASUTWC500NF |
|---|---|
| Manufacturer Part Number | DASUTWC500NF |
| Manufacturer | Pulse |
| Antenna Category | iDAS |
| Working Frequency | 608-960 MHz |
| Gain | 7 |
| Working Frequency 2 | 1695-2200 MHz |
| Gain 2 | 7 |
| Working Frequency 3 | 2300-2700 MHz |
| Gain 3 | 5 |
| Antenna Style | Ceiling Mount |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| Max Input Power (W) | 40 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Vertical/Elevation Beamwidth | 100 |
| Pim Rating (@ 2x20 W) | -155 |
| Height/Length (inches) | 6.78 |
| Height/Length (mm) | 172.2 |
| Width (inches) | 9.41 |
| Width (mm) | 239 |
| Weight (lbs) | 1.65 |
| Weight (grams) | 750 |
| Cable Length (inches) | 19.5 |
| Cable Length (mm) | 500 |
| Connector 1 | N-Female |
| Product Condition | New |
Clarity series White ultra thin ceiling mount for 2g, 3g, 4g(lte) and wifi band with N-Female connector
