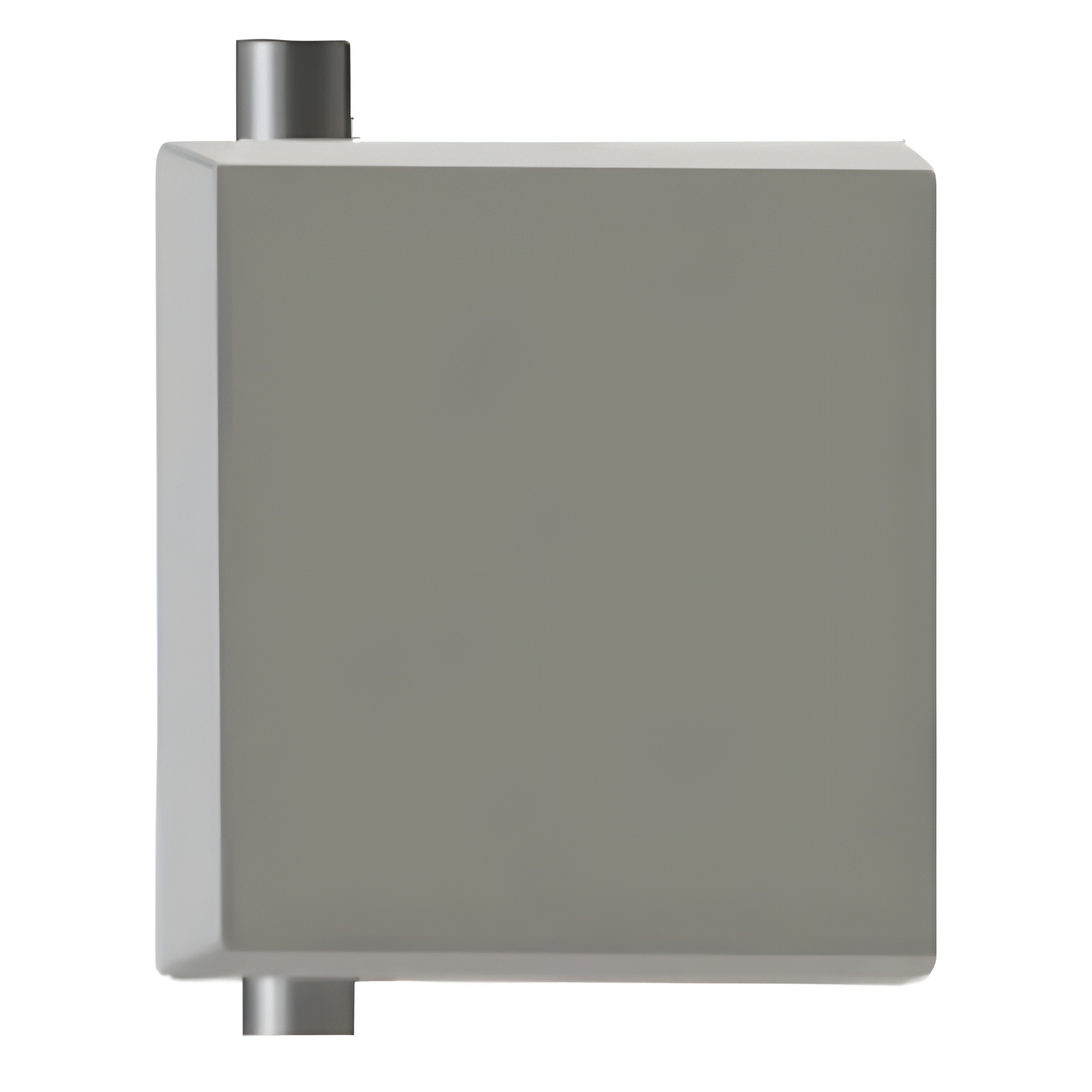

RFMAX 15x15 Inch Linear Polarity Directional Flat Panel RFID Antenna
SKU: PA9-13-HV
Weight: 2.8
lbs.
| Region | US |
| Environment | Indoor/Outdoor |
| Gain | 12.5 dBiL |
| Polarization | Linear |
| Read Range | Far Field |
| RFID Frequency | UHF |
Product Highlights
RFMAX PA9-13-H/V, 15x15 Inch Linear Polarity Directional Flat Panel RFID Antenna, IP67 Outdoor Rated, 15.4x15.4x1.7 inch, Linear Vertical and Horizontal Polarized, 865-928 MHz, 12.5 dBiL gain, fixed N-Female Connector, MNF# PA913HV
Spec. Sheet
RFMAX 15x15 Inch Linear Polarity Directional Flat Panel RFID Antenna
The PA9-13-H/V linear polarity, directional flat panel antenna by RFMAX offers high-gain in a thin, low-profile package.
Specifications
| SKU | PA913HV |
|---|---|
| Manufacturer Part Number | PA9-13-H/V |
| Manufacturer | RFMAX |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| Polarity | Dual Polarity |
| Gain | 12.5 |
| Horizontal/Azimuth Beamwidth | 42 degree |
| Vertical/Elevation Beamwidth | 42 degree |
| Connector Type | Connector - Inside |
| Height/Length (inches) | 15.4 |
| Height/Length (mm) | 391.16 |
| Operating Temp (celsius) | (-49) to 149 |
| Thickness/Diameter (inches) | 1.7 |
| Thickness/Diameter (mm) | 43 |
| Width (inches) | 15.4 |
| Width (mm) | 391 |
| Weight (lbs) | 2.2 |
| Weight (grams) | 1000 |
| Material | ABS Plastic |

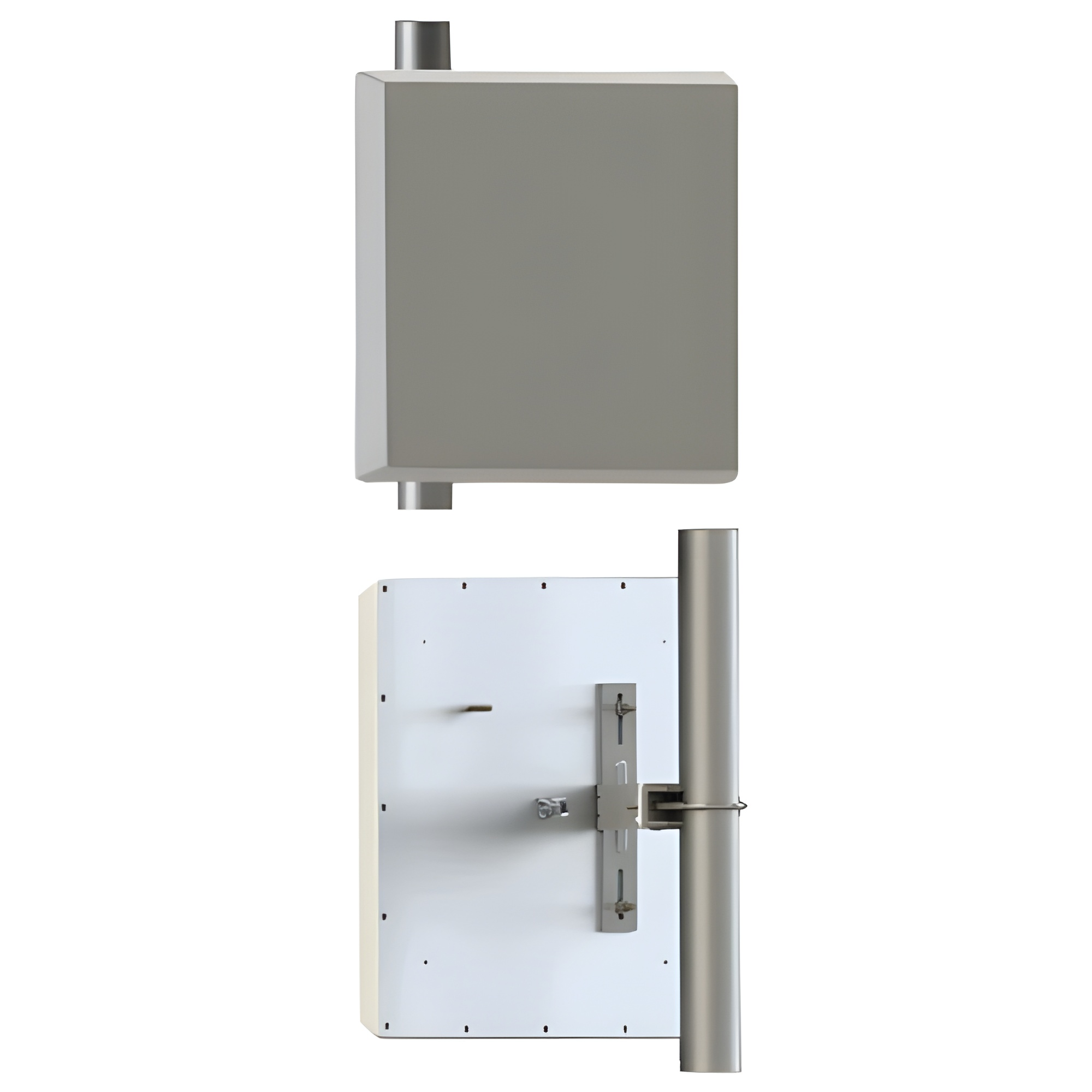

| Mount Style | Threaded Stud x 4 |
| Includes | Wall/ Pole mount |
| Product Condition | New |
