RFMAX RPOR-TH-865/902-8L-RTF Slim Multilinear RFID Portal Antenna
| Region | US |
| Environment | Indoor |
| Gain | 8 dBi |
| Polarization | Linear |
| Read Range | Far Field |
| RFID Frequency | UHF |
Product Highlights
RFMAX RPOR-TH-865/902-8L-RTF. With a slim profile, Less than 2" Thick, 12.8" Wide and 38" Tall the RPOR-TH-865/902-8L-RTF is designed for flexibility, and allows for seamless installation in tight spaces, FCC 902-928 MHz and ETSI 865-868 MHz Band Coverage, Flush Wall Mount or U-Bolt Pole Mount Available (sold seperately), RPTNC-Female Edge Connector (cable not included), MNF# RPOR-TH-865-902-8L-RTFRFID Portals are Made-to-Order, Contact Us for a lead time and to discuss your project
Spec. Sheet
RFMAX RPOR-TH-865/902-8L-RTF Slim Multilinear RFID Portal Antenna
The RFMAX RPOR-TH-865/902-8L-RTF is a highly versatile multi-linear RFID "thin" wall portal FLEXANTENNA designed to offer superior tag read performance across all tag orientations. With a slim profile, Less than 2" Thick, 12.8" Wide and 38" Tall the RPOR-TH-865/902-8L-RTF is designed for flexibility, and allows for seamless installation in tight spaces.

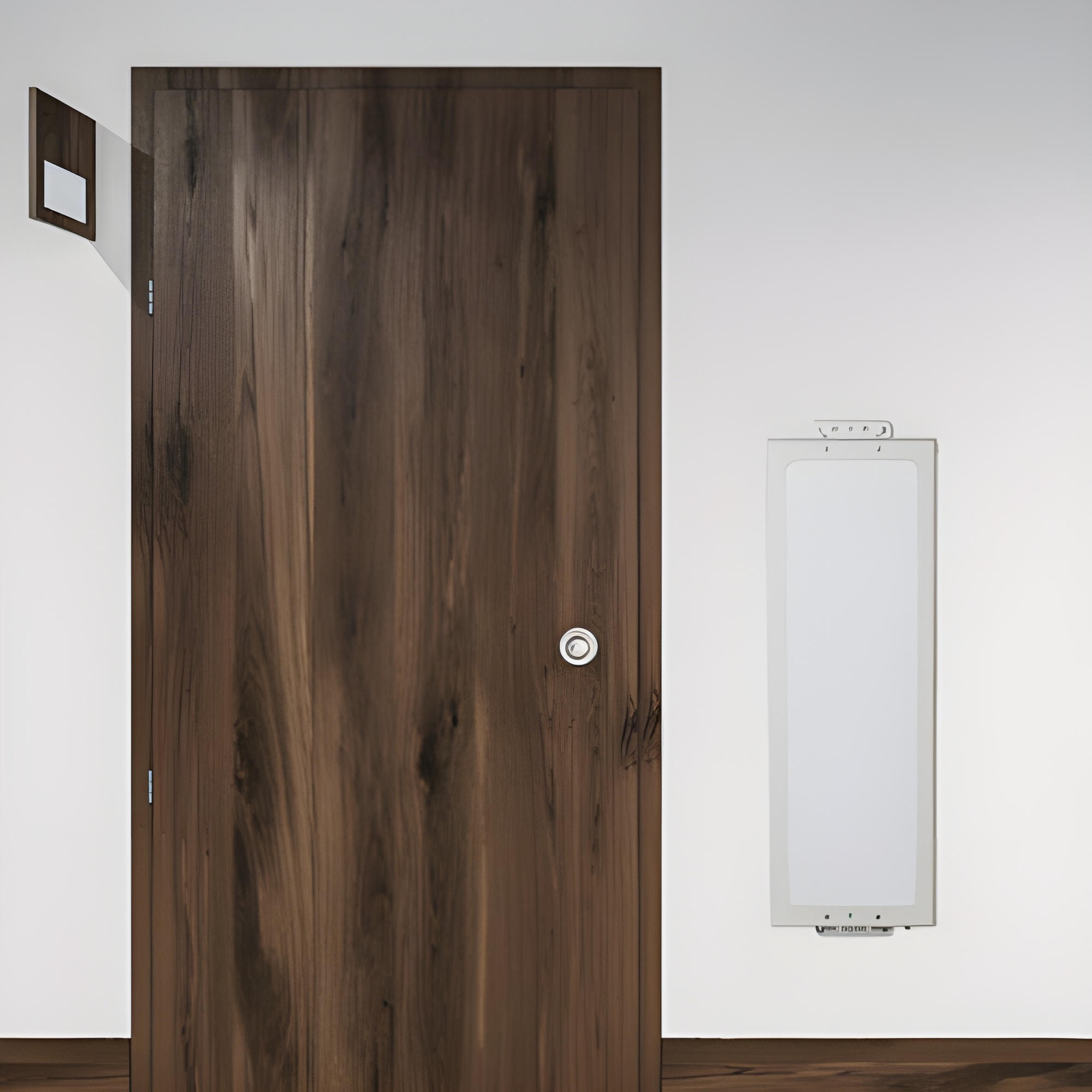

Mounted flush on walls or above doorways and workstations, mounted within conveyor tunnels, this versatility is an ideal solution for various environments, from Hospitals, Hotels and Hospitality to Retail, without compromising functionality. This unit is a great alternative to the SLS D-100 model, yet only utilizes ONE port - not TWO.
More Information
- Focused Multi-Linear Beams - Captures All Tag Orientations
- FCC 902-928 MHz and ETSI 865-868 MHz Band Coverage
- Flush Wall Mount or U-Bolt Pole Mount Available (sold seperately)
- Strong Near-Field Performance and Tightly Controlled READ ZONE
- Thin & lightweight means low-cost shipping and easy installation
- RPTNC-Female Edge Connector (cable not included)
Specifications
| SKU | 50001011 |
|---|---|
| Manufacturer Part Number | RPOR-TH-865/902-8L-RTF |
| Manufacturer | RFMAX |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Polarity | Multilinear |
| Connector 1 | RP-TNC Female (on bottom edge) |
| Height/Length (inches) | 38 |
| Height/Length (mm) | 965.2 |
| Operating Temp (celsius) | -20ºC to 60ºC (-4ºF to + 140ºF) |
| Thickness/Diameter (inches) | 1.94 |
| Thickness/Diameter (mm) | 49.27 |
| Width (inches) | 12.8 |
| Width (mm) | 325.12 |
| Weight (lbs) | 24 |
| Material | Flame Retardant ABS |
| Color | White |
| Mount Style | Flush Mount |
| Product Condition | New |
