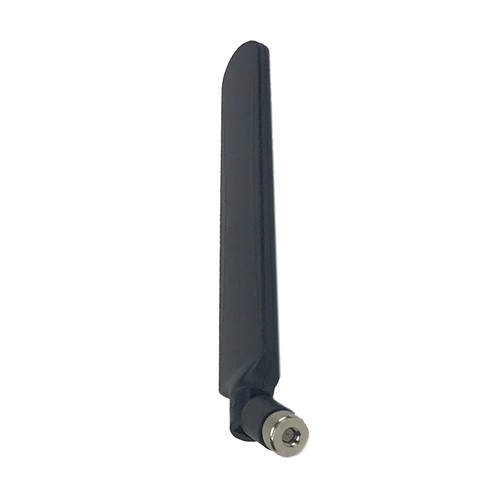

RFMAX 3G/4G/LTE Dipole Antenna
| Part Type | Antenna |
| Interface | 3G Cellular 4G |
| Environment | Indoor/Outdoor |
| Gain | 2.16 dBi 1 dBi 1.1 dBi 1.48 dBi |
| Frequency Ranges | 3G/4G/LTE (698-2.7 GHz) 700 MHz |
Product Highlights
RFMAX 3G/4G/LTE Dipole Antenna for Cellular. High Performance, High Efficiency for AT&T or Verizon Carrier Certification., MNF# RDA69827001SSM
Spec. Sheet
RFMAX Blade/Stubby Antennas
RFMAX designs, produces, and brings to market professional grade Blade/Stubby Antennas and cables for: 3G/4G/LTE cellular machine to machine communication, IoT / internet of things, industrial WiFi, RFID, LoRa, ISM, FirstNet / Band 14, and UHF / VHF for fleets. They are a US based team of RF antenna & cable specialists. Their antennas and cables are high performance, ultra rugged, aesthetically neutral, and priced right.
The RDA698/2700-1-SSM is a high-performance, high-efficiency dipole antenna for 3G/4G/LTE with SMA connector. This is THE BEST cellular antenna for OEM's looking to pass any major carrier's LTE certification - including AT&T, Verizon, Rogers, Bell & Telus. The RDA698/2700-1-SSM is designed for frequencies from 698-2700 MHz 3G/4G/LTE and offers 1.0 - 2.16 dBi gain with efficiencies of 60-85% for maximizing cellular performance on your device. Please note this antenna is designed to to improve the preformance of the cradlepoint modem by substituting Cradlepoint antenna 170628-000. This antenna is also approved for use with Napco StarLink Universal, Intrusion, Security, Smart Hub, and Fire Alarm Communicators. See below for compatible Napco communicators. **Volume pricing for OEM's available upon request** ***Get Money Back guarantee if you are not satisfied with this product
This antenna has been tuned to work with cellular modems and embedded LTE modules from Sierra Wireless, Cradlepoint, Digi, Telit, LinkSprite, Maestro, MultiTech, uBlox & Raspberry Pi in the following LTE bands: 2, 4, 5, 12, 13, 17, 25, 26, 41. If this is not the antenna you are looking for please CLICK HERE to find other types of 4G / LTE, Cellular antennas we sell.
Specifications
| SKU | RDA69827001SSM |
|---|---|
| Manufacturer Part Number | RDA698/2700-1-SSM |
| Manufacturer | RFMAX |
| Antenna Category | 3G/4G/LTE (698-2700 MHz) |
| Working Frequency | 698-960 MHz |
| Gain | 1.0 dBi (60% efficiency) |
| Working Frequency 2 | 1400-2170 MHz |
| Gain 2 | 1.07 dBi (65% efficiency) |
| Working Frequency 3 | 2300-2500 MHz |
| Gain 3 | 1.48 dBi (70 % efficiency) |
| Working Frequency 4 | 2500-2690 MHz |
| Gain 4 | 2.16 dBi (85% efficiency) |
| Antenna Style | Blade or Stubby Antennas |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 |
| Max Input Power (W) | 3 |
| VSWR: < X: 1 | 2.5:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Plenum/Fire Rating | UL94-V0 |
| Height/Length (inches) | 8.8 |
| Height/Length (mm) | 229 |
| Width (inches) | 1.2 |
| Width (mm) | 30.5 |
| Thickness/Diameter (inches) | 0.43 |
| Thickness/Diameter (mm) | 11 |
| Weight (lbs) | 0.07 lbs |
| Weight (grams) | 50 |
| Material | ABS/PC |
| Operating Temp (celsius) | -40 to +85 C |
| Color | Black |
| Connector Type | Connector - Bottom |
| Connector 1 | SMA-Male |
| Includes | Articulating 90 degreee knuckle |
| IP Rating | IP65 |
| OK for Outdoor Use | Yes |
| Vehicular | No |
| Ground Plane Required | No |
| Product Condition | New |
The RDA698/2700-1-SSM is an RFMAX Hi-Gain Dipole / Flat Paddle Antenna for 698-2700 MHz 3G/4G/LTE cellular coverage with an articulating knuckle and standard SMA Male Connector. This blade, or paddle style antenna is designed for use with 3G/4G/LTE embedded cellular modems, access points, routers, gateways and small base station applications. The RDA698/2700-1-SSM covers all North American carrier legacy 3G bands, plus the 4G/LTE frequency ranges of 698-960, 1400-2170, 2300-2500 (Band 30 or 802.11 WiFi) and 2500-2690 MHz providing omnidirectional radiation with a gain of 1.0 - 2.16 dBi.
The blade style package offers a right angle swivel provided in black plastic with dimensions of 8.8 inches long (straight) x 1.2 inches wide It is supplied with an SMA Male connector.
Applications:
- Standard trail cameras from Browning, Bushnell, Cuddeback, Moultrie, etc.
- Standard cellular modems and gateways from Cradlepoint, Sierra Wireless, etc.
- Napco StarLink Universal Security Intrusion Alarm Communicators - SLE-LTEV Verizon LTE models: SLE-LTEV, SLE-LTEVI, SLE-LTEV-CB, SLE-LTEV-CB-TF, SLE-LTEA, SLE-LTEAI
- Napco StarLink Universal Fire Alarm Communicators - SLE-LTEV AT&T LTE models: SLE-LTEVI-FIRE, SLE-LTEV-FIRE, SLELTEVI-CFB, SLETEVI-CFB-PS
- Napco StarLink Universal Smart Hub Alarm Communicators - SLELTEV-C, SLELTEV-Z, SLE-TEV-CBTF-C
