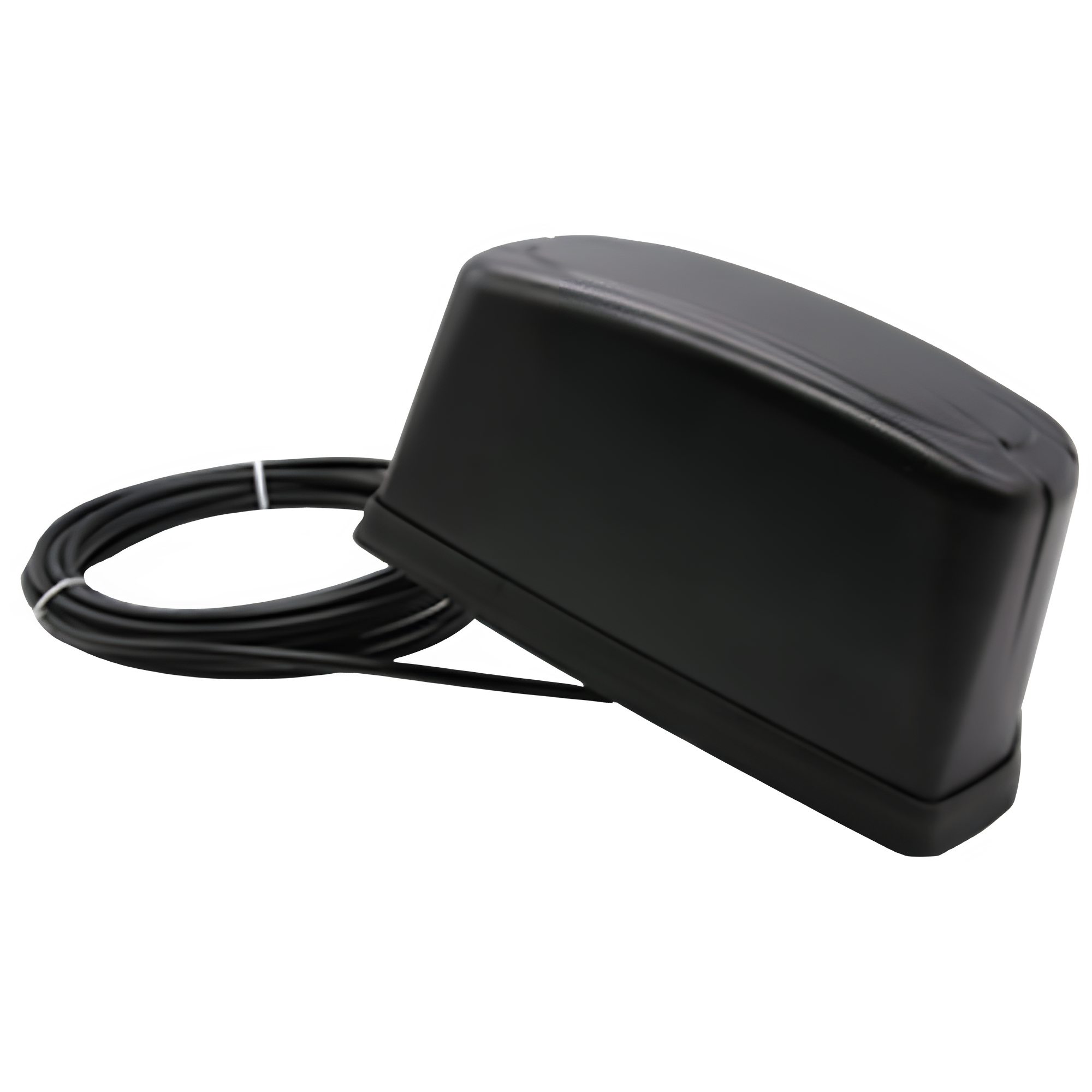

RFMAX Motorola APX8500 Low Profile Antenna
| Part Type | Antenna |
| Environment | Indoor/Outdoor |
| Gain | - 1 dBi 1.4 dBi 2.7 dBi |
| Frequency Ranges | VHF/UHF Dual Band (Mobile Antennas) 800 MHz VHF Antennas (132-175 MHz) Full Spectrum (Multi-Band) UHF Antennas (400-490 MHz) |
Product Highlights
RFMAX Motorola APX8500 Low Profile Antenna with QMA. For All-Band P25 Mobile Radio. VHF, UHF, 700/800. RBDM-155/455/758-17-Q-B MNF# RBDM15545575817QB, RBDM-155/455/758-17-Q-B
Spec. Sheet
RFMAX Multi Band Brick Antennas
RFMAX, a leader in professional-grade antenna design and production, brings you a breakthrough in wireless connectivity. RFMAX Multi Band Brick Antennas exemplify RFMAX commitment to excellence. With high performance and ultra-rugged construction, they meet the demands of commercial and industrial clients. Not only do they deliver exceptional signal strength and coverage, but their aesthetically neutral design seamlessly integrates into any environment. Pair them with RFMAX premium coaxial cables for an unbeatable wireless solution. Trust RFMAX for cutting-edge technology that's priced right.
This LOW PROFILE antenna for the Motorola APX8500™ all-band mobile radio is the first of it's kind! A true "low-profile" roof mounted antenna with Tri-band capability to support VHF, UHF and 700/800 MHz P25 radio communication. USING THIS ANTENNA FOR FORD EXPLORER PIU? ADD THIS GASKET RBDM-GASKET
Specifications
| SKU | RBDM15545575817QB |
|---|---|
| Manufacturer Part Number | RBDM-155/455/758-17-Q-B |
| Manufacturer | RFMAX |
| Antenna Category | Tri-band (VHF-UHF-700/800 MHz) |
| Working Frequency | VHF:153-157 MHz |
| Gain | VHF: -1 dBi |
| Working Frequency 2 | UHF: 450-470 MHz |
| Gain 2 | UHF: 1.4 dBi |
| Working Frequency 3 | P25: 700/800: 750-870 MHz |
| Gain 3 | P25 700/800: 2.7 dBi |
| Antenna Style | "Brick" Multi-Element Antenna |
| Bands | All-Band Radio |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 100 Watts Max Input Power |
| VSWR: < X: 1 | VHF: 3.5:1 at 153-157 MHz. UHF: 2:1 at 450-470 MHz. P25: 2:1 at 750-870 MHz |
| Height/Length (inches) | 3.78 inches tall |
| Thickness/Diameter (inches) | Length: 8 inches. Width at base: 3.5 inches. |
| Weight (lbs) | 1.16 lbs. |
| Material | UV Stable Plastic Antenna & Rubber Gasket |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Direct Mount with 7/8" Stud |
| Color | Black |
| Connector 1 | 17 foot coax with QMA Male Installed |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes. Made for outdoor use. |
| Vehicular | Yes |
| Ground Plane Required | Yes-Mount on Metal Roof |
| Product Condition | New |
- True Tri-Band Capability in a Low-Pro Package.
- Operates at 153-157 VHF, 440-470 UHF & 750-870 MHz P25.
- Includes 17 feet of low loss cable & QMA Male pre-installed.
- NO MORE BROKEN ANTENNAS!
