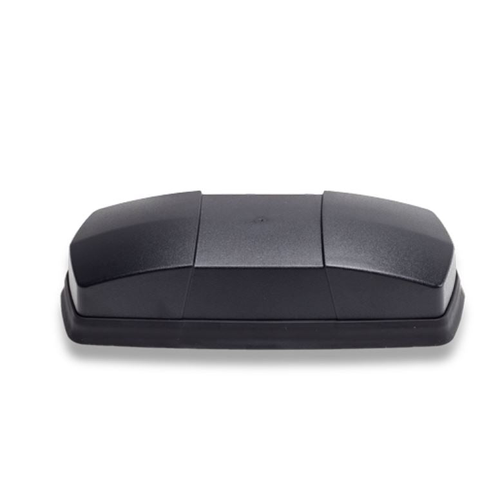

RFMAX Cellular Antenna
| Part Type | Antenna |
| Interface | Cellular 4G 5G |
| Environment | Indoor/Outdoor |
Product Highlights
RFMAX 2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Machine To Machine Communication. MNF# RBDM55RR10
Spec. Sheet
RFMAX Multi Band "Brick" Antennas
RFMAX, a leader in professional-grade antenna design and production, brings you a breakthrough in wireless connectivity. RFMAX Multi Band Brick Antennas exemplify RFMAX commitment to excellence. With high performance and ultra-rugged construction, they meet the demands of commercial and industrial clients. Not only do they deliver exceptional signal strength and coverage, but their aesthetically neutral design seamlessly integrates into any environment. Pair them with RFMAX premium coaxial cables for an unbeatable wireless solution. Trust RFMAX for cutting-edge technology that's priced right.
5G is here!!! The RFMAX "Brick" antenna # RBDM-55-RR-10 is a compact, ultra-rugged direct-mount antenna designed for M2M machine-to-machine applications like Irrigation Control, Digital Signage, Surveillance, Lottery and ATM machines. The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches. This antenna was designed to meet all specifications of 3G, 4G/LTE and 5G (including Band 71 and CBRS) from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. Sub-6 Frequency range is 600-6000 Mhz. This unit was designed for use with MiMo 4G/LTE or 5G cellular modem gateways from Cradlepoint, Sierra Wireless, PepLink, etc. The "Brick" antenna is easy to install using the heavy-duty threaded stud mount which is 100% vandal proof and IP67 rated for year-round indoor or outdoor use. The super-efficient wireless technology built into these antennas allows for FAST access to the cellular network. This ensures that ATM machines are able to clear bank transactions in seconds, and digital signage is able to upload & download media content at maximum speed. The antenna includes dual 10 foot long, low loss cables with RP SMA male connectors.
Specifications
| SKU | RBDM55RR10 |
|---|---|
| Manufacturer Part Number | RBDM-55-RR-10 |
| Manufacturer | RFMAX |
| Antenna Category | 4G/LTE/5G (600-6000 MHz) |
| Working Frequency | 617-960 MHz |
| Gain | 3.3 dBi @ 617-960 MHz |
| Working Frequency 2 | 1710-6000 MHz |
| Gain 2 | 5.2 dBi @ 1710-6000 MHz |
| Antenna Style | "Brick" Multi-Element Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | <2.2:1 (Cell) |
| Horizontal/Azimuth Beamwidth | 360 |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| No Of Elements | 2 |
| Cable Length - PT195 | 10 Feet |
| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| Weight (lbs) | 2 |
| Material | UV Stable, UL94 Radome |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Direct Mount |
| Color | Black |
| Cable Length (inches) | 120 |
| Connector 1 | RP SMA-Male |
| Connector 2 | RP SMA-Male |
| IP Rating | IP65 |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
RFMAX "Brick" Antenna
- Size: 7.9 x 3.4 x 1.8 Inches
- Out-performs ALL similar antennas
- Elements: Dual/MiMo 4G/LTE & 5G Cellular (Sub-6, Band 71, CBRS)
- High Gain at all frequencies for maximum connection speeds
- Designed for Indoor or Outdoor Installations (IP67 rated)
- Easy to install, Rugged & 100% Vandal Proof
- Approved for use with all major carriers: AT&T, Verizon, Sprint
- Optimized for Cradlepoint, Sierra Wireless, Digi, etc.
