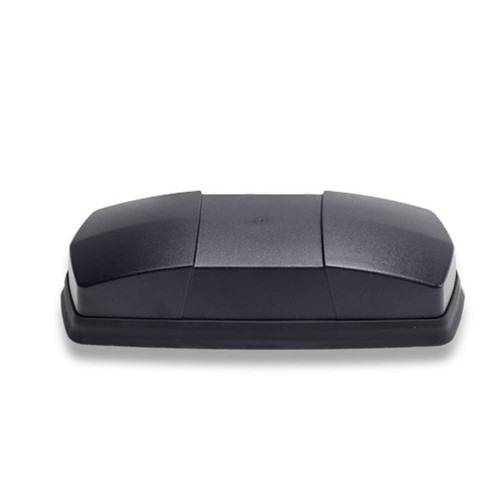

RFMAX 2x2 MiMo 5G - Band 71 Ready (4G-LTE) Cellular Antenna RBDM-55-SS-8
RFMAX 2x2 MiMo 5G - Band 71 Ready (4G-LTE) Cellular Antenna RBDM-55-SS-8
RFMAX 2x2 MiMo 5G - Band 71 Ready (4G-LTE) Cellular Antenna

RFMAX 2x2 MiMo 5G - Band 71 Ready (4G-LTE) Cellular Antenna

SKU: RBDM-55-SS-8
|
Weight: 2 lbs.

Part Type Antenna
Interface 4G Cellular 5G
Environment Indoor/Outdoor
Gain 3.3 dBi 5.2 dBi

Product Highlights

RFMAX 2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Vehicular Communication, 8 Ft cable. RBDM-55-SS-8, MNF# RBDM55SS8

RFMAX Multi Band Brick Antennas

RFMAX, a leader in professional-grade antenna design and production, brings you a breakthrough in wireless connectivity. RFMAX Multi Band Brick Antennas exemplify RFMAX commitment to excellence. With high performance and ultra-rugged construction, they meet the demands of commercial and industrial clients. Not only do they deliver exceptional signal strength and coverage, but their aesthetically neutral design seamlessly integrates into any environment. Pair them with RFMAX premium coaxial cables for an unbeatable wireless solution. Trust RFMAX for cutting-edge technology that's priced right.

5G is here!!! The RFMAX "Brick" antenna # RBDM-55-SS-8 is a compact, ultra-rugged direct-mount antenna designed for Public Safety, Fleet Management and M2M machine-to-machine applications like Irrigation Control, Digital Signage, Surveillance,  Lottery and ATM machines. The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches. This antenna was designed to meet all specifications of 3G, 4G/LTE and 5G (including Band 71 and CBRS) from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile.  Sub-6 Frequency range is 600-6000 Mhz.


Specifications

SKU RBDM55SS8
Manufacturer Part Number RBDM-55-SS-8
Manufacturer RFMAX
Antenna Category 4G/LTE/5G (600-6000 MHz)
Working Frequency 617-960 MHz
Gain 3.3 dBi @ 617-960 MHz
Working Frequency 2 1710-6000 MHz
Gain 2 5.2 dBi @ 1710-6000 MHz
Antenna Style "Brick" Multi-Element Antenna
Polarity Linear
Bands Multi
SISO or MIMO MIMO
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 <2.2:1 (Cell)
Horizontal/Azimuth Beamwidth 360
Plenum/Fire Rating UV Stable, UL94 Radome
No Of Elements 2
Cable Length - PT195 8 Feet
Height/Length (inches) 7.9
Height/Length (mm) 202
Width (inches) 3.4
Width (mm) 88
Thickness/Diameter (inches) 1.8
Thickness/Diameter (mm) 45
Weight (lbs) 2
Material UV Stable, UL94 Radome
Operating Temp (celsius) -40 to +85 C
Mount Style Direct Mount
Color Black
Cable Length (inches) 96
Connector 1 SMA-Male
Connector 2 SMA-Male
IP Rating IP65
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
Product Condition New

RFMAX "Brick" Antenna

  • Size: 7.9 x 3.4 x 1.8 Inches
  • Out-performs ALL similar antennas
  • Elements: Dual/MiMo 4G/LTE & 5G Cellular (Sub-6, Band 71, CBRS)
  • High Gain at all frequencies for maximum connection speeds
  • Designed for Indoor or Outdoor Installations (IP67 rated)
  • Easy to install, Rugged & 100% Vandal Proof
  • Approved for use with all major carriers: AT&T, Verizon, Sprint
  • Optimized for Cradlepoint, Sierra Wireless, Digi, etc.
