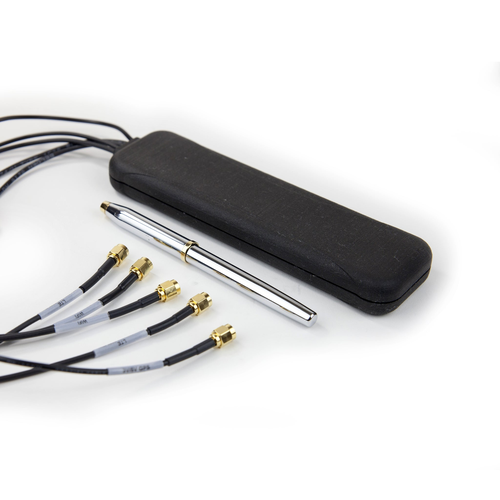

RFMAX GPS/3G/4G/LTE/WiFi Antenna
| Part Type | Antenna |
| Interface | 3G 4G GPS Wi-Fi |
| Environment | Indoor |
| Gain | 2 dBi 26 dB |
Product Highlights
RFMAX GPS + 2 x 3G/4G/LTE + 2 x Dual WiFi No Drilling- Adhesive Mount Antenna for Dashboard/Windshield. 10 ft Cable. MNF# RWAG44WW10SSSRR
Spec. Sheet
RFMAX Wedge Antennas
RFMAX Wedge Antennas are revolutionizing wireless communication with their innovative design and exceptional performance. These compact, wedge-shaped antennas are engineered to optimize signal strength and coverage in various applications. Whether it's industrial IoT, transportation, or smart cities, RFMAX Wedge Antennas ensure reliable and seamless data transmission. Their sleek form factor allows easy integration into diverse environments, while their advanced technology guarantees enhanced connectivity and reduced interference. Stay connected with the future - embrace RFMAX Wedge Antennas for unparalleled wireless efficiency.
RWA-G44WW-10-SSSRR: No Drilling! Unit mounts using adhesive tape (included) with 3 x 10 foot RG174 cable & SMA male connector for the GPS and LTE line and 2 x 10 foot RG174 cable & RP SMA male connectors for WiFi line. Perfect for leased vehicles. This unit offers very high-performance, customers love using it with their ruggedized tablets, cellular modems, etc. Black, 5 in 1 combination LTE/Cellular+GPS+WiFi covert strip style antenna for modems from the Sierra Wireless AirLink series (GX450, etc.) or Cradlepoint IBR series (IBR900, IBR1100, etc.) Operates at LTE/Cellular : 694-960/1700-2700 MHz, 1575.42 MHz GPS w/26 dB LNA and WiFi: 2.4 GHz and 5.0 GHz.
Specifications
| SKU | RWAG44WW10SSSRR |
|---|---|
| Manufacturer Part Number | RWA-G44WW-10-SSSRR |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 695-2700 MHz (3G/4G/LTE) |
| Gain | 2 dBi |
| Working Frequency 2 | 1575.42 (GPS) |
| Gain 2 | 26 dB (LNA Gain) |
| Working Frequency 3 | 2.4-2.5/4.9-6.0 GHz |
| Gain 3 | 2 dBi |
| Antenna Style | "Wedge" Multi-Element Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Material | Black ASA Plastic |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Wedge/Adhesive |
| Color | Black |
| Cable Type | RG-174 |
| Number of Cables | 5 |
| Cable Length (inches) | 120 |
| Includes | Direct-Double Side Tape |
| IP Rating | IPx7 |
| OK for Outdoor Use | No |
| Vehicular | Yes |
| Ground Plane Required | No |
| Product Condition | New |
The RFMAX RWA-G44WW-10-SSSRR is a 5-in-1 combination antenna for active 3.3 or 5 volt GPS, 2 x Mimo 3G/4G/LTE and 2 x Dual WiFi. This unit is meant to be used when the typical roof mount antennas are not practical due to mounting considerations, or when there is a desire for the antenna to be "covert." The unit has adhesive for mounting the antenna to a dashboard, or windshield. This unit is field tested, and provides great connectivity with the Cradlepoint IBR900, IBR1100, IBR600 as well as NTC-140W and Sierra Wireless AirLink GX450 Cellular modems/gateways/routers.
- No Drilling! Excellent Choice for Leased Vehicles.
- 3G/4G/LTE Cellular Frequencies: 695-960 & 1700-2700 Mhz
- Cellular Antenna Gain: 2.5 dBi (2:1 VSWR)
- GPS Frequency: 1575.42 MHz
- GPS Antenna: LNA Gain: 26 db
- WiFi Frequency: 2.4 GHz and 5.0 GHz
- Small, Covert Size: L=7 x W=2 and T=2 Inches
- Max Power: 10 Watts
- Operating Temp: -40 to +85 C
- Cables/Connectors: (3x) 10 foot RG174 wtih SMA Male, (2x) 10 foot RG174 wtih RP-SMA Male
