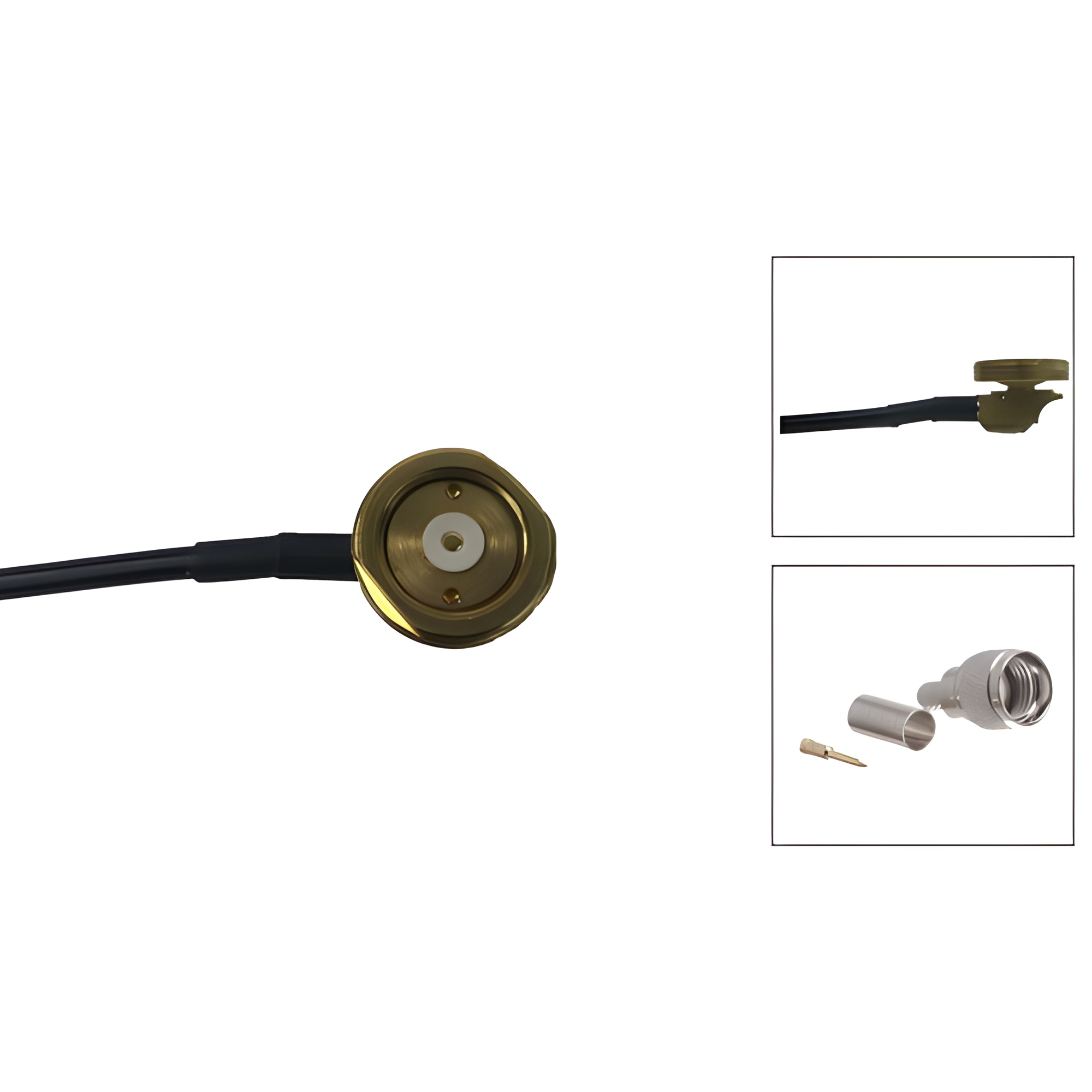

RFMAX Brass 3/4 Inch Thru-Hole NMO Mount
Part Type | Mounts |
Product Highlights
RFMAX Brass 3/4 Inch Thru-Hole NMO Mount with 17 Ft. RG-58/U Cable with Mini UHF Male Connectors, MNF# RNMOT58UMUMB17RFMax Accessories and Parts
RFMAX offers a range of innovative antennas and RF hardware designed to exceed customer’s expectations, and to enable tomorrow’s wireless applications today. Find the right accessory for your RFMax Antenna with a variety of mounting options and enclosures.
This RFMAX 3/4 inch Thru-Hole NMO Mount is optimized for vehicular roof mounting of an NMO type antenna. Typically used with VHF or UHF antennas, the RNMOT-58U-MUM-B-17 includes a 17 Ft. RG-58/U (Solid Copper Conductor) Cable & Mini UHF Connector, Included but NOT Installed. If you want the RNMOT-58U-MUM-B-17 with the Mini UHF connector INSTALLED, use part # RNMOT-58U-MUM-B-17I. If this is not the NMO Mount you are looking for, please contact us. Please Note: This NMO mount requires a drilled hole.
Specifications
SKU | RNMOT58UMUMB17 |
---|---|
Manufacturer Part Number | RNMOT-58U-MUM-B-17 |
Manufacturer | RFMAX |
Antenna Style | Mounts and Brackets |
NMO Mount Type | Thru Hole NMO mount |
Mount Style | 3/4 Thru-Hole NMO Mount |
Connector 1 | Mini UHF Male/ Mini-PL259/ MPL |
Cable Length (Mounts) | 17 Feet |
Cable Length | 17 Feet |
Cable Type | RG-58/U |
Cable Length (inches) | 204 |
Cable Length (mm) | 5181.6 |
Weight (lbs) | 0.5 |
Weight (grams) | 227.27 |
Used for Roof Thickness | Up to 1/8 inch |
Color | Brass |
Vehicular | Yes |
OK for Outdoor Use | Yes |
Product Condition | New |
Brass 3/4 Inch Thru-Hole NMO Mount with 17 Ft. RG-58/U Cable with Mini UHF Male Connectors
FEATURES
- 3/4 inch Brass Thru-Hole NMO Mount
- 17 Ft. RG-58/U solid center core Cable
- Mini UHF Connector Included but NOT Installed*
- 5 Year Factory Warranty
*If you want the RNMOT-58U-MUM-B-17 with the Mini UHF connector INSTALLED, use part # RNMOT-58U-MUM-B-17I.
Cable Type | Attenuation (dB/100 ft) | ||
150 MHZ | 450 MHZ | 900 MHZ | |
RG-58/U | 5.40 | 10.20 | 16.10 |
RG-58A/U | 6.20 | 12.50 | 20.00 |
RG8X | 3.60 | 6.80 | 10.70 |
Solid Teflon Cable | 4.80 | 9.00 | 13.50 |
