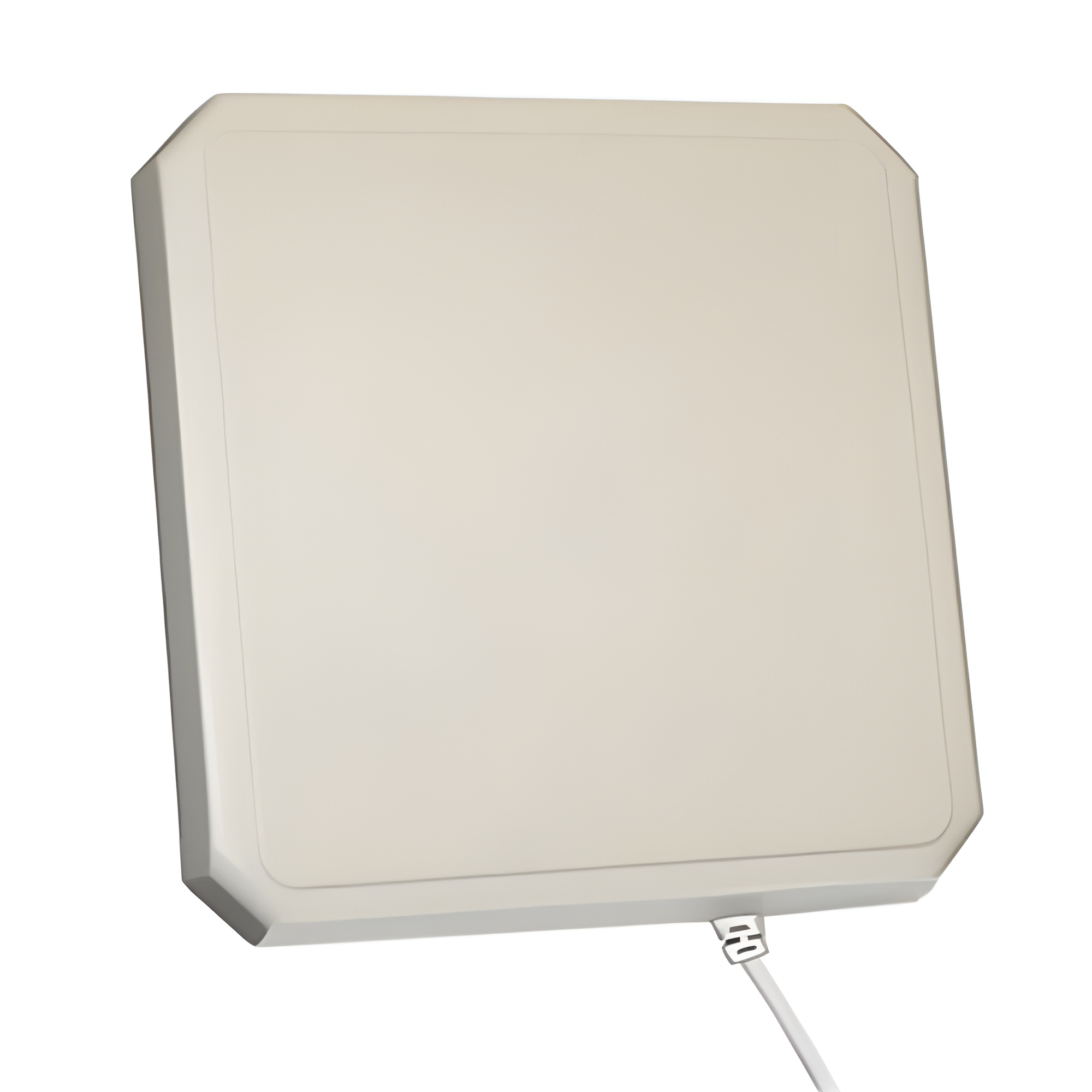

RFMAX HERO Certified 10x10 Inch Monostatic RFID Panel Antenna
SKU: S9028PCL12NFHERO
Weight: 2
lbs.
| Region | US |
| Environment | Indoor |
| Gain | 9 dBi |
| Polarization | Left/Right Circular |
| Read Range | Far Field |
| RFID Frequency | UHF |
Product Highlights
RFMAX HERO Certified 10x10 Inch Monostatic RFID Panel Antenna. The Laird / RFMAX S9028PLR12NF is HERO Certified by the US Navy for use around ordance. This is a mono-static circular polarity 10x10 inch panel antenna for UHF RFID operating at 902-928 MHz (FCC) This model is fully compatible with the Impinj R700 reader. MNF# S9028PCL12NFHERORFMAX HERO Certified 10x10 Inch Monostatic RFID Panel Antenna
The Laird / RFMAX S9028PLR12NF is HERO Certified by the US Navy for use around ordance. This is a mono-static circular polarity 10x10 inch panel antenna for UHF RFID operating at 902-928 MHz (FCC) This model is fully compatible with the Impinj R700 reader.. Features:
Specifications
| SKU | S9028PCL12NFHERO |
|---|---|
| Manufacturer | RFMAX |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | IP54 |
| Polarity | Left Hand Circular |
| Gain | 9 |
| Horizontal/Azimuth Beamwidth | 70 degree |
| Vertical/Elevation Beamwidth | 70 degree |
| Connector Type | Cable - Bottom Entry |
| Connector 1 | N-Female |
| Cable Length (inches) | 12 |
| Cable Length (mm) | 305 |
| Height/Length (inches) | 10.2 |
| Height/Length (mm) | 259.08 |
| Operating Temp (celsius) | (-30) to 70 |
| Thickness/Diameter (inches) | 1.32 |
| Thickness/Diameter (mm) | 34 |
| Width (inches) | 10.2 |
| Width (mm) | 259 |
| Weight (lbs) | 1.13 |
| Weight (grams) | 514 |
| Material | Polycarbonate |
| Mount Style | (4) 1/4-20 Threaded Studs at 63.5 mm / 2.5 inch spacing |
| Includes | 4 each: flat washers, lock washers & hex nuts |
| Product Condition | New |
