Barcode Scanners · Datalogic Gryphon 4500

Disinfectant-Ready
Premium Scanners

Choose barcode capture around the way your equipment is used and cleaned.

Selected Gryphon 4500 DRA configurations combine 1D/2D area imaging with disinfectant-ready enclosures and antimicrobial additives. Compare corded and Bluetooth options for workstations where scanners are handled and cleaned frequently.

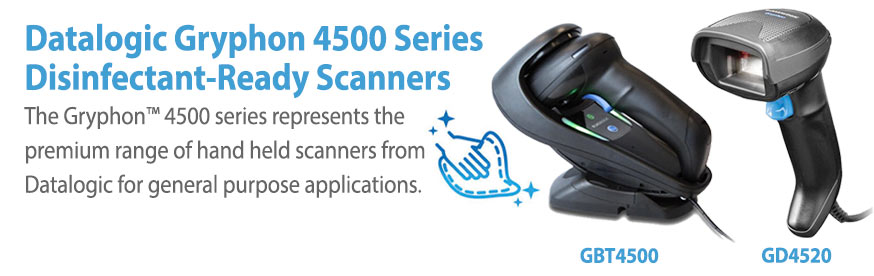

Datalogic Gryphon 4500 barcode scanner family

DRA housing · 2D imaging · Corded or Bluetooth options

Match the Housing to the Workflow

Disinfectant-Ready Means Selecting the Right Configuration

The DRA designation identifies specific disinfectant-ready antimicrobial configurations. Confirm the scanner and any included base by part number before ordering.

Housing for Frequent Cleaning

DRA enclosures are designed for use with the cleaning and disinfecting products identified in Datalogic's instructions. Follow the procedure for the exact scanner, base and surfaces being cleaned.

Compatibility with a disinfectant does not mean every cleaning chemical or method is suitable.

Antimicrobial Additives

Selected DRA housings contain antimicrobial additives. These material features complement the enclosure design; they do not replace your organization's cleaning and disinfection procedures.

Review the model's documentation and your facility's equipment requirements when selecting a scanner.

See the DRA Range

Gryphon 4500 Disinfectant-Ready Models

Explore Datalogic's overview of the DRA scanner configurations.

Open the DRA overview video
Premium General-Purpose Imaging

Build the Reading Capability Around Your Codes

The Gryphon 4500 family uses megapixel area imaging for supported 1D, 2D, stacked, postal and composite formats. Match the optical configuration to the code size and working distance.

Standard or High Density

Standard and HD configurations serve different barcode sizes and reading tasks. Test the smallest codes you need to capture rather than assuming one optic fits every label.

Aiming & Feedback

Features such as white illumination, a targeted aiming pattern, Green Spot and good-read indicators help guide scanning. Confirm feedback features on the selected model.

Motionix Technology

Supported configurations use motion sensing to switch between handheld and presentation-style operation. Review workstation setup and settings for your workflow.

Specialized optics: dedicated Gryphon 4500 configurations are available for digital watermarking. Verify the required capability by part number; it is not included on every standard or DRA model.

Corded or Cordless

Compare the Featured DRA Models

Choose the connection and optics first, then confirm the complete kit.

Featured Gryphon 4500 configurations
Feature Gryphon GD4520 Gryphon GBT4500
Connection Corded USB on the kits linked below Bluetooth wireless communication
Optics Standard and HD DRA kits listed below Standard and HD DRA kits listed below
Power & Charging Wired operation; no cordless battery charging system Rechargeable cordless operation with inductive charging through a compatible base
Typical Fit A workstation where a cable is suitable A workflow that benefits from movement away from the host or base
Kit Check Confirm USB cable and any stand required Confirm base, cable, power requirements and host compatibility

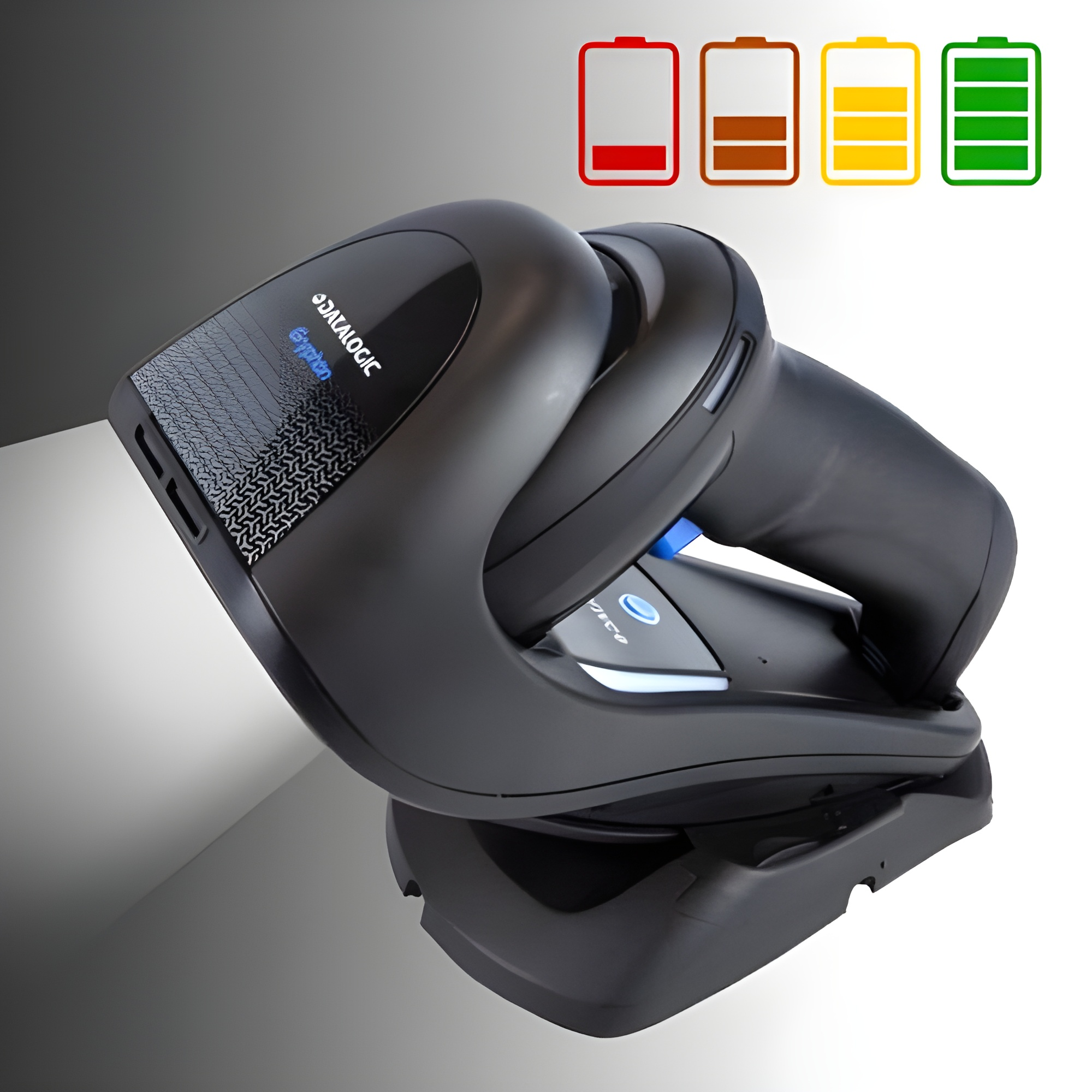

Datalogic Gryphon GBT4500 cordless scanner
Bluetooth Mobility

Gryphon GBT4500

The GBT4500 supports cordless barcode capture using Bluetooth. It can suit shared workstations, counters and other tasks where a cable limits movement.

  • 1D/2D megapixel imaging with model-specific standard or HD optics
  • Inductive charging through a compatible charging base
  • No exposed charging contacts between scanner and base
  • Good-read feedback and Motionix features according to configuration

Wireless charging reduces reliance on charging contacts; it does not remove the need to clean the scanner and base.

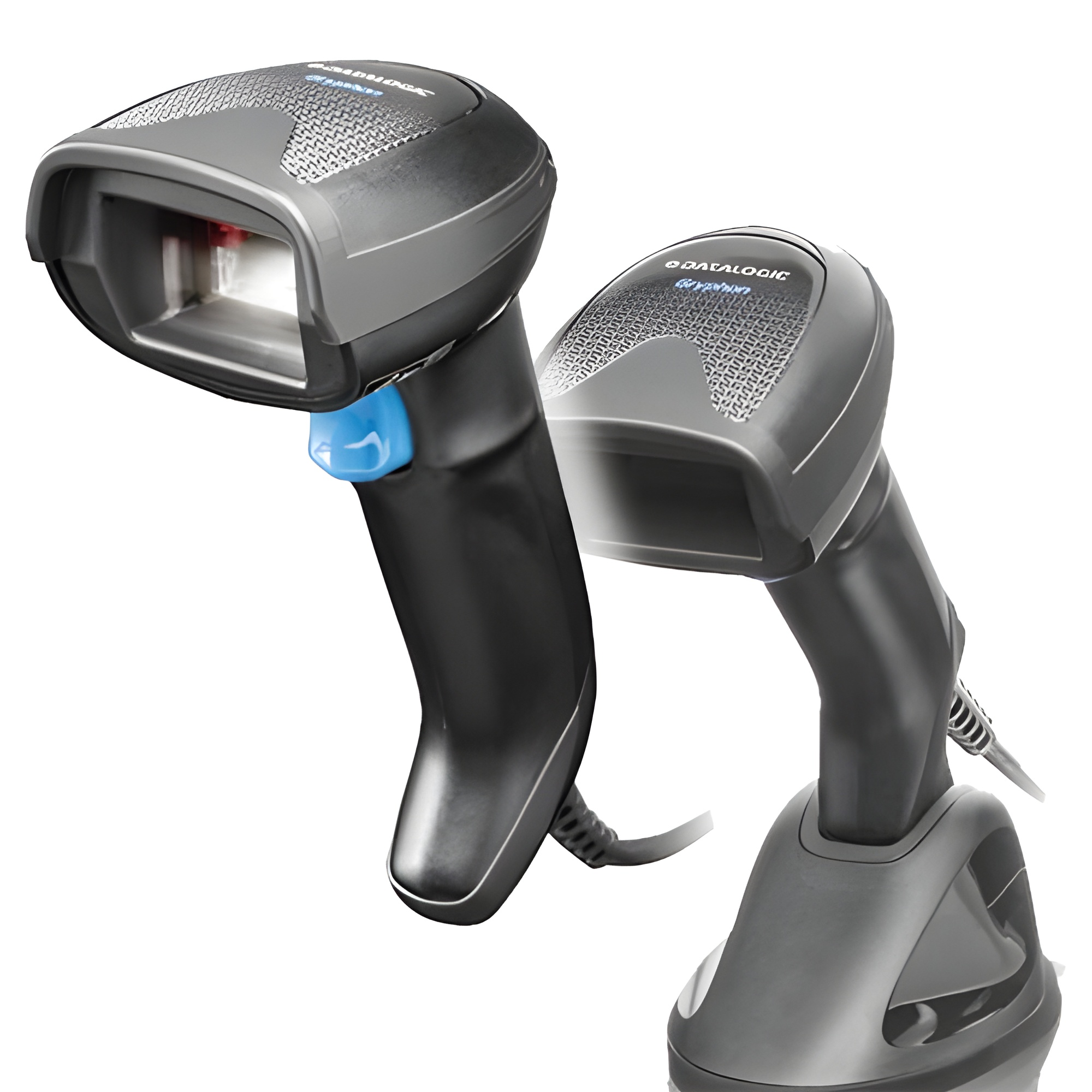

Datalogic Gryphon GD4520 corded barcode scanner
Corded Workstations

Gryphon GD4520

The GD4520 offers USB-connected 1D/2D scanning for handheld and presentation-style workflows. Motionix can adjust reading modes based on movement and configuration.

  • Corded operation with no Bluetooth link or cordless charging requirement
  • Standard and HD optics available in the linked DRA kits
  • Targeted aiming and good-read feedback for daily scanning
  • Review stand requirements and application settings for hands-free use

The Bluetooth and STAR Cordless options belong to other Gryphon family models; they are not GD4520 features.

See the Scanner Families

Gryphon 4500 Product Videos

Review the corded and Bluetooth platforms. Confirm DRA housing, optics and kit contents on the individual product listing.

Gryphon GD4500 Family

Open the GD4500 family video

Gryphon GBT4500

Open the GBT4500 video
Match the Work Environment

Applications & Industries

Consider DRA configurations where repeated handling and cleaning are part of daily operations. Match the scanner's specifications and cleaning instructions to the setting.

Retail & Point of SaleLight ManufacturingLaboratories & PharmaciesHealthcare WorkstationsAccess Control & TransportationEntertainmentPostal, Banking & Commercial ServicesPublic AdministrationUtilities
Before You Order

Confirm the Scanner and Cleaning Requirements Together

  • Housing: exact DRA scanner and base part numbers
  • Optics: code types, smallest elements and reading distance
  • Connection: USB workstation or Bluetooth workflow
  • Kit: cable, base, power supply and stand requirements
  • Cleaning: approved products and procedures for each surface
  • Support: available EASEOFCARE service options for your configuration

Review Datalogic Gryphon 4500 model information

Find the Right Configuration

Need Help Choosing a DRA Scanner?

Share your barcode samples, connection needs and cleaning requirements. BarcodeFactory can help compare the Gryphon models and accessories for your application.
