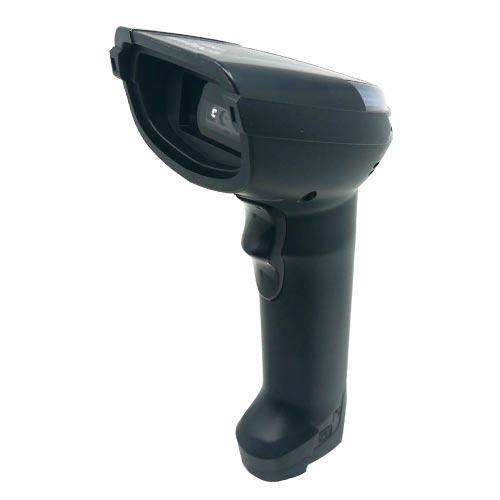

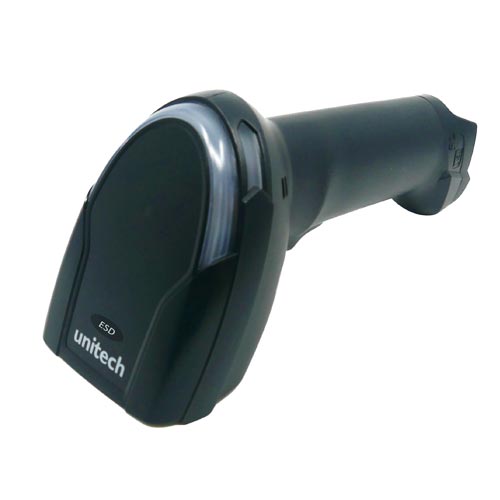

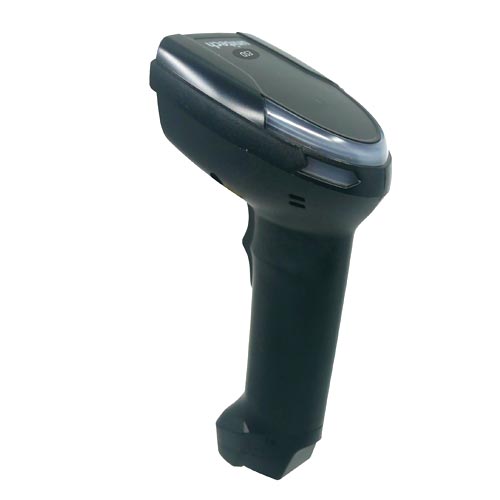

Unitech MS852B+ ESD

Bluetooth ESD Imager Scanner (2D)

The MS852B+ ESD (Electrostatic discharger) 2D imager scanner is a high-performance device but additional designed to satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments.

• Support 1D / 2D barcodes including damaged and poorly printed codes
• Wireless transmission range up to 328 feet
• Ideal for clean rooms: withstands ESD up to 105~109 ohms per square

Unitech's MS852B+ ESD-safe scanner is made by the internal mixed way with antistatic agent to protect MS852B series to be ESD safe to be used at ESD protected area including its cable. The body of the product and its cable can withstand ESD up to 10⁵ ~10⁹ ohms per square and no containing Chlorine material.

Features and Benefits

• Withstands ESD up to 10⁵~10⁹ ohms per square
• Megapixel barcode sensor that enhances the maximum compatibility
• Support most 1D / 2D barcode on mobile screens, even damaged or poorly printed barcodes
• Support OCR, Dot codes, and Digimarc barcodes
• Support Bluetooth dual-mode technology (Bluetooth LE V4.2 & Bluetooth 2.1+EDR, Class 1)
• Wireless transmission range up to 328 feet (100m) in the line of open sight.
• Long battery life up to 25 hours per a fully charged battery
• Durable design: IP42 and 6.8 feet (2.1m) drop spec
• Auto Bluetooth pairing / auto switch between trigger & presentation mode with cradle

ESD Protection

The MS852B+ ESD (Electrostatic discharger) 2D imager scanner is a high-performance device but additional designed to satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments. unitech's MS852B+ ESD-safe scanner is made by internal mixed way with antistatic agent to protect MS852 series to be ESD safe to be used at ESD protected area including its cable. With the Internal mixed way, the body of the product and its cable can withstand ESD up to 10⁵~10⁹ ohms per square and no containing Chlorine material. The Internal mixed way can provide a longer time of ESD protection than external addition way due to external additional anti-static in the latter part of the packaging or processing process was wiped away. An internal mixed antistatic agent can continue to add antistatic agent to the plastic surface, to make up the surface due to wipe and the amount of antistatic agent consumed. It is a reliable tool to streamline your workflow in manufacturing environments.

Move without Restrictions

Featuring 2D scanning technology, the MS852B+ESD has the ability to capture most 1D / 2D barcodes n mobile screens, even damaged or poorly printed barcodes and special barcode symbologies such as OCR on passport, Dot codes on tires or cigarette package, and Digimarc barcode on special retail packages. Moreover, the MS852B+ESD supports Bluetooth dual-mode technology (Bluetooth LE V4.2 & Bluetooth 2.1+EDR, Class 1) to give you the freedom and bring your business the flexibility. It is compatible with any smartphone, tablet, or computer–the MS852B+ESD pairs easily to any mobile device or PC. Besides, it allows users to transmit data to the host from up to 100 meters from the base. MS852B+ ESD also can automatically populate electronic forms in a single scan from US driver's licenses or ID card. With its advanced barcode technology and durable design, the MS852B+ ESD handheld scanner is a highly reliable tool to increase productivity and efficiency.

Intuitive and User-Friendly

With excellent motion tolerance design, the MS852B+ ESD increased scan speed and operational effectiveness even while moving. Equipped with a louder beeper and brighter LED indicators, the MS852B+ ESD allows users to recognize the feedbacks easily even in dark environment.

Ultra-Durability

While sustaining a 2.1 meters drop to concrete, MS852B+ ESD incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for best reliability. This scanner can be used in the most practical way depending on the scanning task in various solutions in retail, logistics, manufacturing, hospitality, and government.
