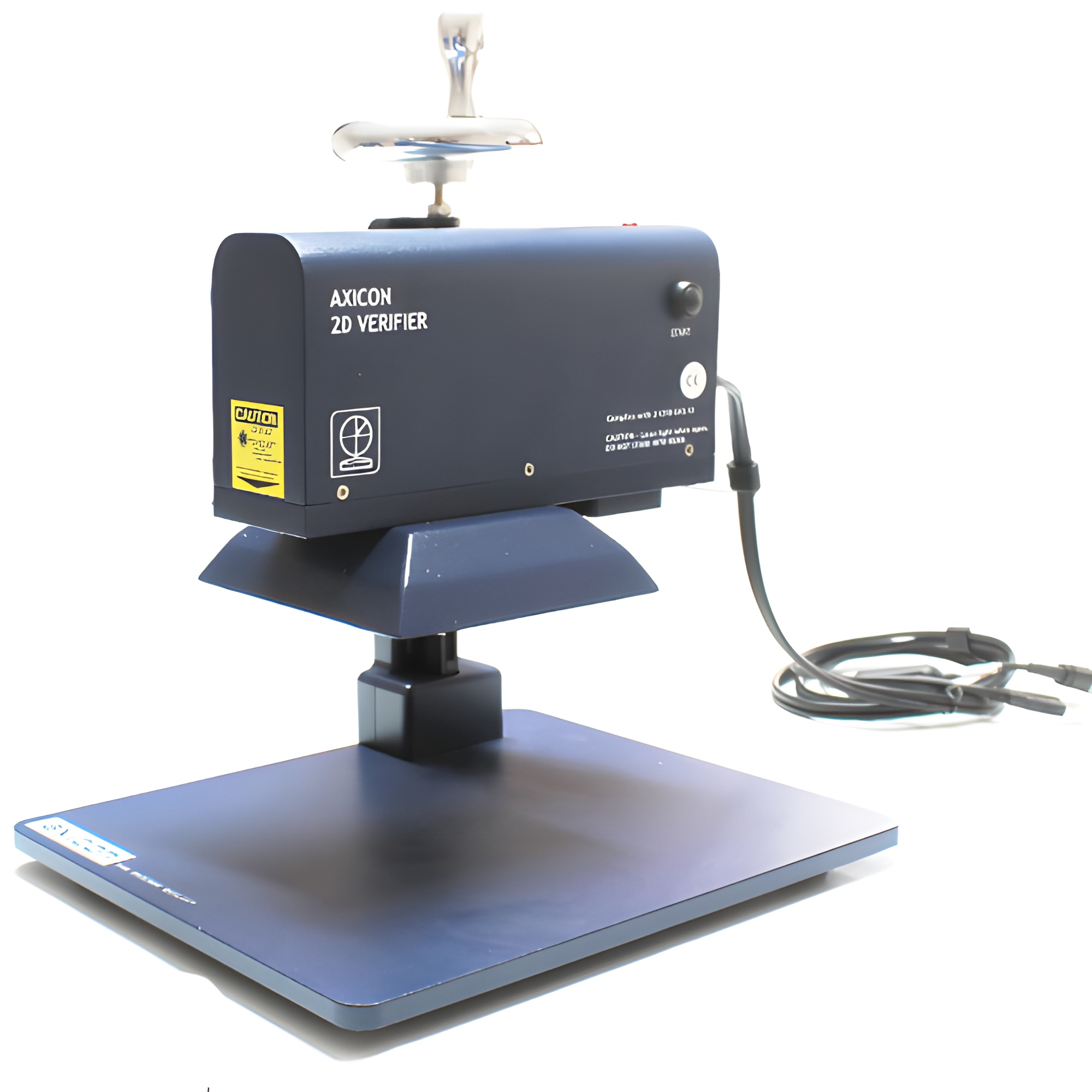

The Axicon 12900 has been specially designed to verify direct-part-marked barcodes that are difficult to read with other DPM verifiers. The verifier can be raised up to 150 mm above its base so that slightly recessed symbols, and those marked on components can be read more easily. The verifier is moved vertically by using the manual hand wheel, and the software uses a laser-based distance measuring system to ensure that the image is correctly focused. It can read DataMatrix, GS1 DataMatrix, QR Code, and GS1 QR Code two-dimensional symbols, down to an x-dimension size of 0.152 mm. It has 5 different lighting options to enable verification in accordance with ISO/IEC 15415 and the AIM DPM Quality Guideline (ISO/IEC TR 29158)
( SKU: AXI-12900 )
Premium Accuracy Linear and 2D Direct Part Marked Barcode Verifier, Axicon 12900,Field of view 1.0"x0.7", Automatic Variable Aperture ,ISO15415 and ISO 15426-2,IOS 16022 Barcode Verifier Specification,
