Cab SQUIX Applicators

CAB, S5106 Demand Module Only, Label Products in Motion On a Conveyor, Required for Mounting On a Cab SQUIX 6.3 Peel-Off Printer, Label Width Up to 7 inch, Label Height Up to 8 inch, Print Line Distance to the Peel-Off Plate 13-20 inch

CAB, S5104 Demand Module Only, Label Products in Motion On a Conveyor, Required for Mounting On a Cab SQUIX 4, SQUIX 4.3 Peel-Off Printer, Label Width Up to 4.5 inch, Label Height Up to 8 inch, Print Line Distance to the Peel-Off Plate 13-20 inch

CAB, S1000-220 Applicator Only, Cylinder Stroke 8.6 inch (220mm), Pad Stroke Below Device 2.5 inch (64mm), Required for Mounting On a Cab SQUIX Peel-Off Printer Provides a Cost-Effective Solution if Operated Semi-Automatically or Integrated in Vertical Orientation in Production Lines

CAB, S1000-300 Applicator Only, Cylinder Stroke 11.8 inch (300 mm), Pad Stroke Below Device 5.6 inch (144 mm), Required for Mounting On a Cab SQUIX Peel-Off Printer Provides a Cost-Effective Solution if Operated Semi-Automatically or Integrated in Vertical Orientation in Production Lines

CAB, S1000-400 Applicator Only, Cylinder Stroke 15.7 inch (400 mm), Pad Stroke Below Device 9.6 inch (244 mm), Required for Mounting On a Cab SQUIX Peel-Off Printer Provides a Cost-Effective Solution if Operated Semi-Automatically or Integrated in Vertical Orientation in Production Lines

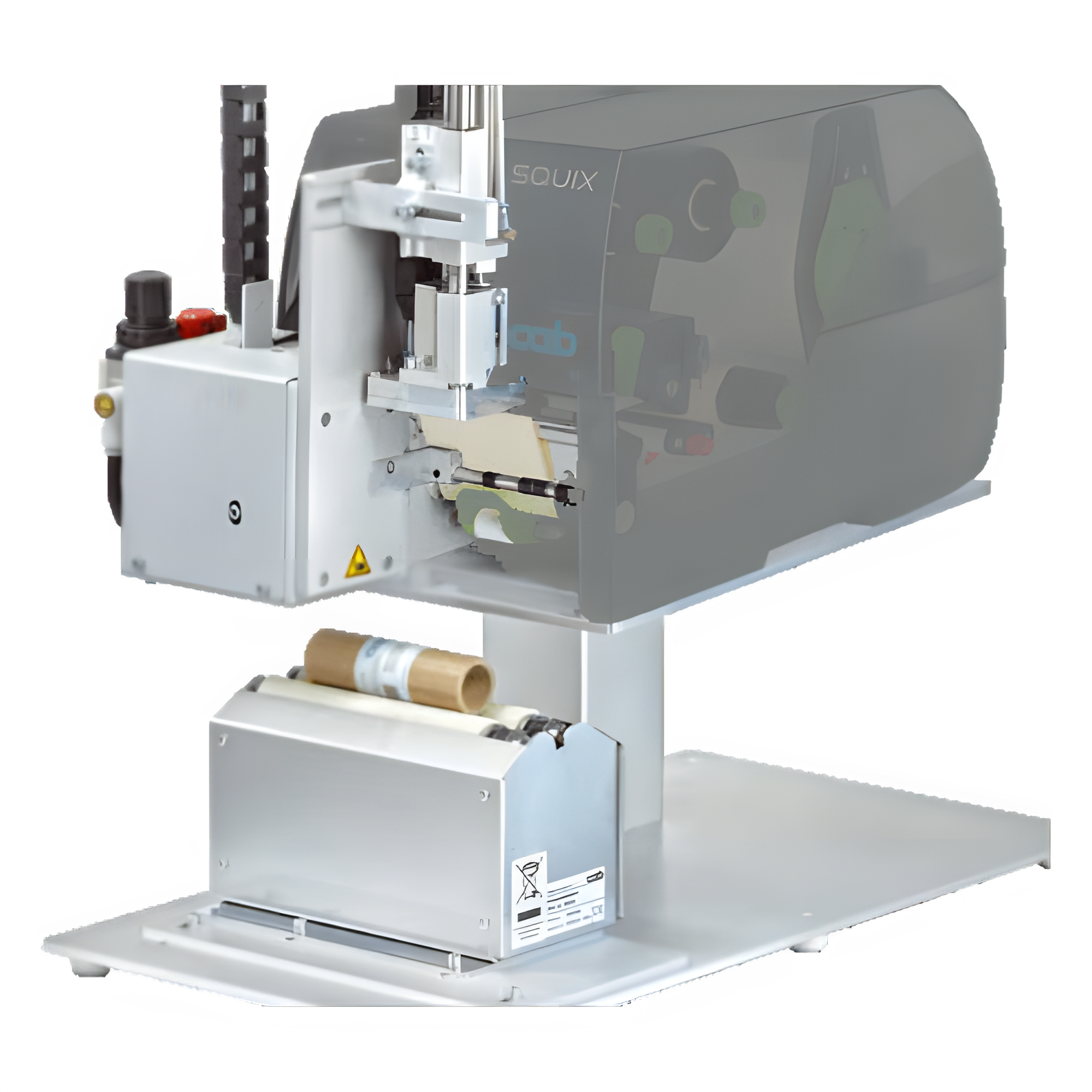

CAB, All-Around Labeler Only, to Label Cylindric Items On a 360° Circumference, Required for Mounting On a Cab SQUIX Peel-Off Printer, Includes: Mount, Connecting CABle and Foot Switch

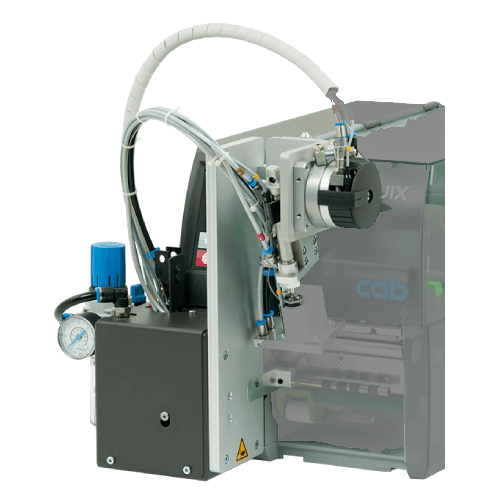

CAB, S3200 Applicator Only, Required for Mounting On a Cab SQUIX Peel-Off Printer, Rotary Cylinder 45°- 90°, Stroke Cylinder Up to 1.2 inch (30mm), Immersion Depth Pad F Up to 0.19 inch (5mm), Compressed Air 65 Psi (4.5 BAR), Labels Are Set 45° to 95° to the Horizontal by a Rotary Cylinder and Move Towards Products by Means of a A Short-Stroke Cylinder
