CAT-40G-SA-220 - Labelmate CAT-40G-SA-220 High Torque Rewinder with Sensor Arm [8.5"]

See Our Holiday Hours

Replacement Product is available!

  • Labelmate OMNI-CAT-XL-8 Universal Smart Rewinder OMNI-CAT-XL-8

    Labelmate OMNI-CAT-XL-8 Universal Smart Rewinder

    ( SKU: OMNI-CAT-XL-8 )

    Item May Have Up to a 10-Day Lead Time. Please Contact Us for an Estimate or Quote.

    Labelmate OMNI-CAT-XL-8 High Torque Rewinder with Sensor Arm, for media up to 8.5" wide, and roll diameters up to 16", Max. Roll Diameter: 16" (406mm), Core Diameter: 3" (76mm), Core Holder: Mechanical Chuck, Max. Media Width: 8.5" (216mm), Full 5-Year Parts and Labor Limited Warranty, Part No. 80-203-0109

    $1395.63

    Quantity Discounts
    2+
    Contact

Labelmate CAT-40G-SA-220 High Torque Rewinder with Sensor Arm [8.5"]

SKU: CAT-40G-SA-220
|
Weight: 36 lbs.
Part Type Rewinder
Width (inches) 8.50 inch
Core Size 3.00 inch
Outer Diameter 16 inch OD

Product Highlights

Labelmate CAT-40G-SA-220, High Torque Rewinder with Sensor Arm, for media up to 8.5" wide, and roll diameters up to 16", Max. Roll Diameter: 16" (406mm), Core Diameter: 3" (76mm), Core Holder: Mechanical Chuck, Max. Media Width: 8.5" (216mm), Full 5-Year Parts and Labor Limited Warranty, Part No. 80-203-0042

Item May Have Up to a 10-Day Lead Time. Please Contact Us for an Estimate or Quote.

Spec. Sheet

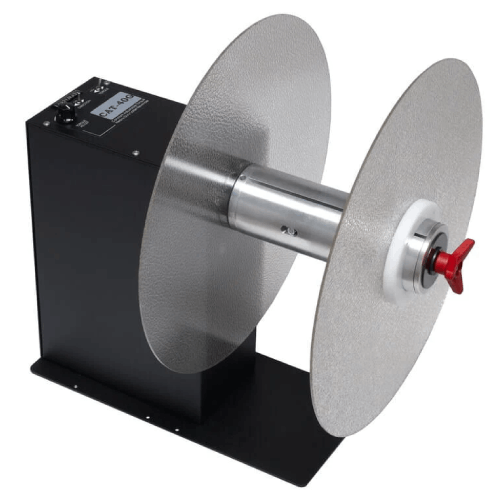

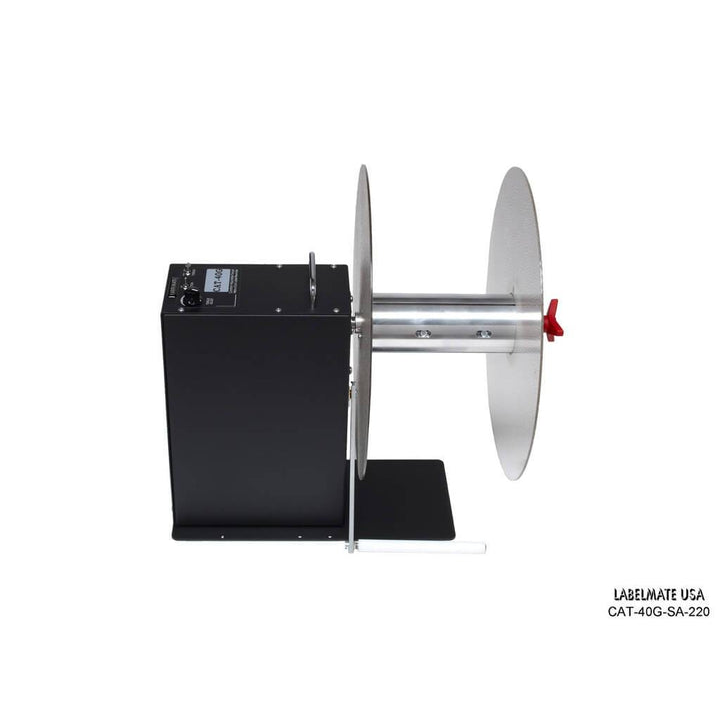

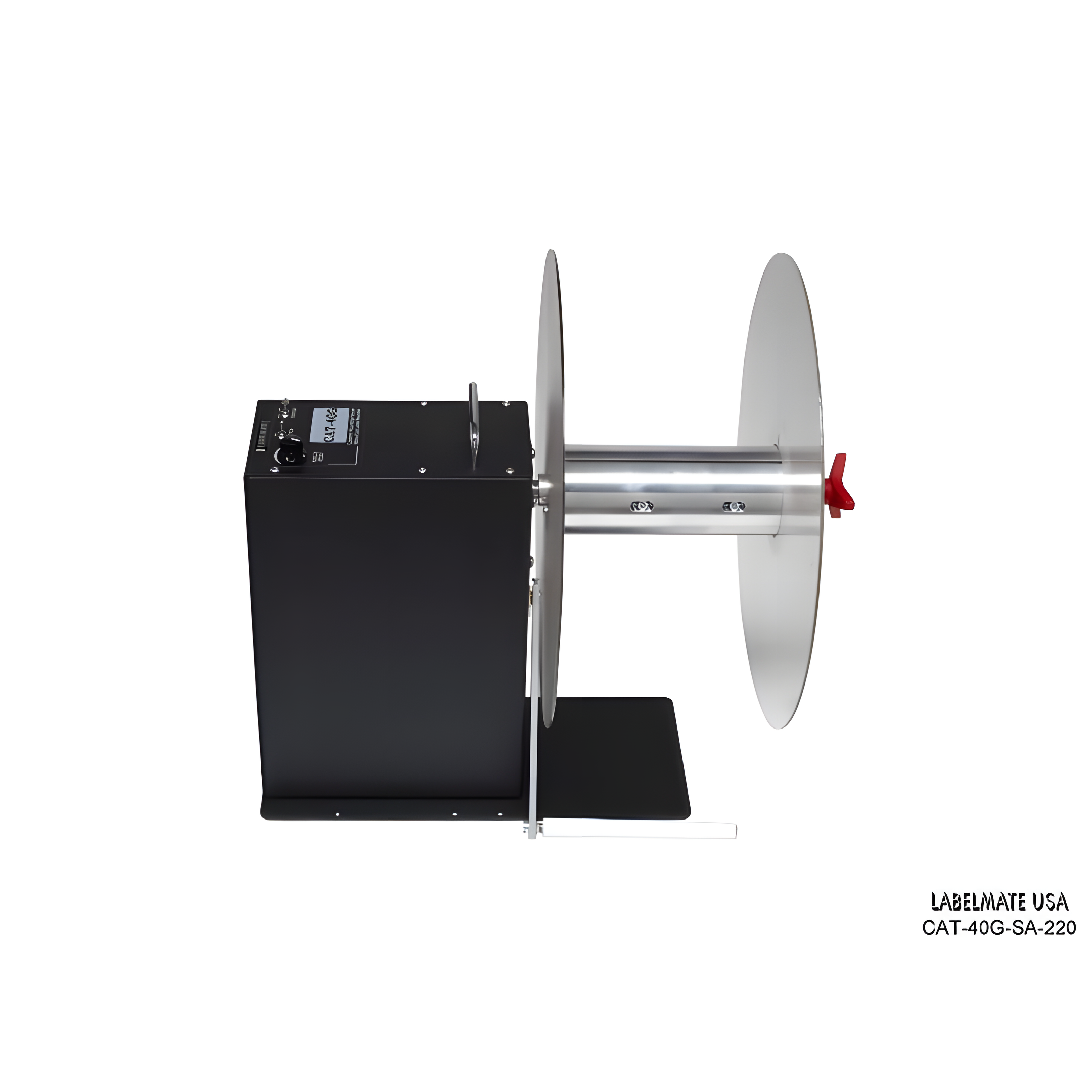

Labelmate CAT-40G-SA-220 High Torque Rewinder with Sensor Arm

CAT-40G-SA High-Torque Rewinders with a Sensor Arm are the solution for rewinding very heavy rolls in-line from a printer, and in applications where extra torque is required. These Rewinders utilize high-torque gear motors that cannot be stalled, but the sensor arm on the units starts and stops the rewind action as dictated by the printer or other external device. CAT-40G-SA Rewinders are bi-directional and equipped with fully adjustable speed control.

High Torque Rewinder with Sensor Arm, for media up to 8.5" wide, and roll diameters up to 16".

  • Max. Roll Diameter: 16" (406mm)
  • Core Diameter: 3" (76mm)
  • Core Holder: Mechanical Chuck
  • Max. Media Width: 8.5" (216mm)
  • Full 5-Year Parts and Labor Limited Warranty

Shipping Information

  • Size: 20"×20"×12" (508x508x305mm)
  • Weight: 36 lbs. (16.3-kg)
