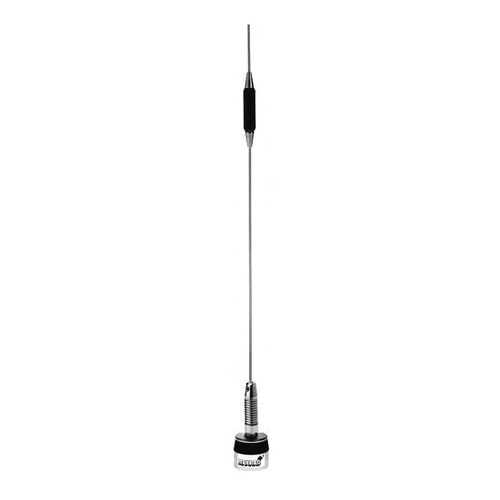

PCTEL MUF4505S UHF Base Loaded Chrome Coil Antenna
| Part Type | Antenna |
| Environment | Indoor/Outdoor |
| Gain | 5 dBi |
| Frequency Ranges | UHF Antennas (400-490 MHz) |
| Polarization | Linear |
Product Highlights
PCTEL MUF4505S: antenna by PCTEL/Maxrad UHF Base Loaded Chrome Coil Antenna- UHF 450-470 MHz - 5 dB - Spring Included MNF# MUF4505S
Spec. Sheet
PCTEL Base Coil Antennas
PCTEL's Base Coil Antennas boast a long tuning ferrule, granting unparalleled flexibility in frequency adjustment without trimming. Operating on a No Ground Plane (NGP) requirement, they ensure high performance without the need for a dedicated grounding system. With a straight stainless steel corona ball that remains securely on the rod, these antennas eliminate dissimilar metal interactions found in competitor designs. Their NMO mount makes installation a breeze, catering to a range of applications including public safety, transportation, utility, and military mobile operations.
These antennas feature a tapered loading coil jacket with chrome-plated fittings and an optional heavy-duty stainless steel spring. The base loaded matching network supports the collinear or trilinear rod sections.
Specifications
| SKU | MUF4505S |
|---|---|
| Manufacturer Part Number | MUF4505S |
| Manufacturer | PCTEL |
| Antenna Category | UHF (380-600 MHz) |
| Antenna Style | Base Coil Antennas |
| Ground Plane Required | No |
| Product Condition | New |
These antennas feature a tapered loading coil jacket with chrome-plated fittings and an optional heavy-duty stainless steel spring. The base loaded matching network supports the collinear or trilinear rod sections.
Features
- Rugged construction; optional heavy-duty shock spring
- Sleek, sturdy, sealed phasing coil design
- Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts
