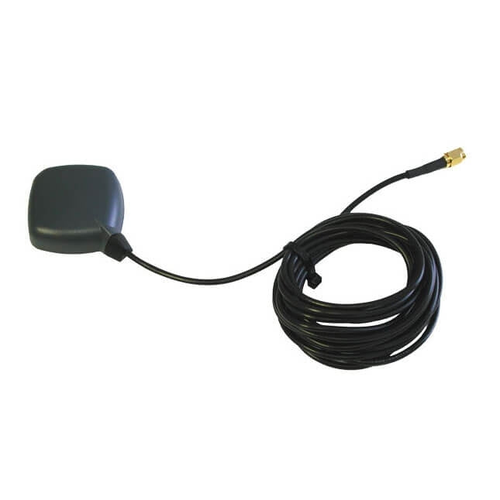

PCTEL 8117D-3M-MCX GPS/GLONASS Antenna

PCTEL Low Profile/Phantom Antennas

PCTEL's Low Profile/Phantom Antennas offer a tough, whipless design featuring omni-directional radiation and vertical polarization. This innovative structure ensures frequency agility, low visibility, and a superior low-angle radiation pattern compared to traditional gain antennas. Key features include easy installation with optional NMO mounts and a UV-treated radome for sun damage resistance. Ideal for public safety, transportation, commercial, industrial communication, and Internet of Things (IoT) applications, these antennas provide robust performance in diverse environments.

The 8117D GPS L1/GLONASS antenna is a high performance antenna with a wide voltage range, ideally suited to telematics platforms for use in vehicle mounted applications. With a wideband patch, this antenna was designed to operate at GPS L1 as well as GLONASS L1 frequencies. Using internal magnets or screw mount holes, the antenna can be installed almost anywhere on a vehicle allowing for greater flexibility. The 8117D antenna features 28 dB gain low noise amplifier and a SAW filter. With 2.7 to 5 volt operation, the antenna can be used with the vast majority of GPS L1 and GLONASS systems available.

Features

• GPS L1 & GLONASS L1 Frequencies
• Voltage range 2.5 – 5 V
• LNA 28 dB gain typical
• Low noise figure 1.5 dB
