Pulse GPSNMO07 Pulse-Larsen White Low Profile GPS Antenna
| Part Type | Antenna |
| Environment | Indoor/Outdoor |
| Polarization | Left/Right Circular |
Product Highlights
Pulse GPSNMO07: Pulse-Larsen White Low Profile GPS Antenna with NMO mount-17 ft cable, SMB Connector Installed MNF# GPSNMO07We also offer Thru-Hole NMO Mounts and Magnetic NMO Mounts. Contact us for to discuss your project.
Pulse Electronics Low Profile Antennas
Pulse Electronics offers cutting-edge low profile antennas, revolutionizing connectivity in compact devices. These antennas boast exceptional performance while maintaining minimalistic designs, catering to diverse applications like IoT, automotive, and consumer electronics. With Pulse's expertise, devices can achieve seamless connectivity without compromising aesthetics or functionality.

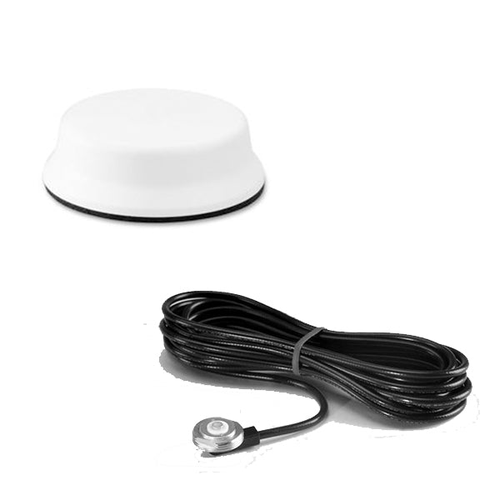

The Pulse-Larsen GPSNMO07 is a White Low Profile Omnidirectional GPS Antenna operating at 1575.4 MHz with NMO Mount Base. Size: 1.3 inches tall x 2.9 inches diameter. This kit INCLUDES a standard 3/4" NMO cable kit with 17' RG-58/U cable and SMB Connector. ***** NMO Mount Included *****
Specifications
| SKU | GPSNMO07 |
|---|---|
| Manufacturer Part Number | GPSNMO07 |
| Manufacturer | Pulse |
| Antenna Category | GPS/GNSS (1545.72, 1561-1602 MHz) |
| Working Frequency | 1575.4 MHz |
| Gain | 5 dBic |
| Antenna Style | Low Profile |
| Polarity | Circular |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| VSWR: < X: 1 | 2:01 |
| Height/Length (inches) | 1.3 |
| Height/Length (mm) | 33.02 |
| Thickness/Diameter (inches) | 2.9 |
| Thickness/Diameter (mm) | 73.66 |
| Weight (lbs) | 0.3 |
| Weight (grams) | 136.36 |
| Mount Style | NMO |
| Color | White |
| Cable Type | RG-58/U |
| Cable Length (inches) | 204 |
| Connector 1 | SMB-Male |
| Vehicular | Yes |
| Product Condition | New |
The Pulse-Larsen GPSNMO07 is a White Low Profile Omnidirectional GPS Antenna operating at 1575.4 MHz with NMO Mount Base. 17' RG-58/U cable and SMB Connector included. This antenna features a hemispherical RF pattern, has right-hand circular polarization, is rated for 5 Volts DC input voltage, and offers 28 dB +/- 2 dB of active LNA Gain.
Founded in 1965 as Larsen Electronics, the company was acquired in 1999 by Radiall, then later by Pulse Electronics. Most of the company's antennas, mounts and cable kits are still made in the USA in the original factory in Vancouver, Washington. With over 2,000 standard antennas deliverable on short-notice, Pulse-Larsen is the recognized industry leader for LMR/Land Mobile Radio and Public Safety / M2M communications. All Pulse-Larsen antennas, cable kits and NMO mounts are covered by the original Larsen No Nonsense 2-Year Warranty.
These antennas have standard NMO / New Motorola mounting. NMO cable kits, such as the NMOKHFUD series can be purchased separately on this website.
