Pulse SLPT698/869DMNWShadow Direct Transit Antenna
SKU: SLPT698/869DMNW
Weight: 1
lbs.
| Part Type | Antenna |
| Interface | 4G Cellular 3G |
| Environment | Indoor/Outdoor |
| Gain | 4.5 dBi |
| Polarization | Linear |
Product Highlights
Pulse SLPT698/869DMNW:Shadow Direct Transit Antenna, White, 4.5 dBi, 698-869 MHz MNF# SLPT698869DMNWWe also offer Thru-Hole NMO Mounts and Magnetic NMO Mounts. Contact us for to discuss your project.
Spec. Sheet
Pulse Electronics Low Profile Antennas
Pulse Electronics offers cutting-edge low profile antennas, revolutionizing connectivity in compact devices. These antennas boast exceptional performance while maintaining minimalistic designs, catering to diverse applications like IoT, automotive, and consumer electronics. With Pulse's expertise, devices can achieve seamless connectivity without compromising aesthetics or functionality.

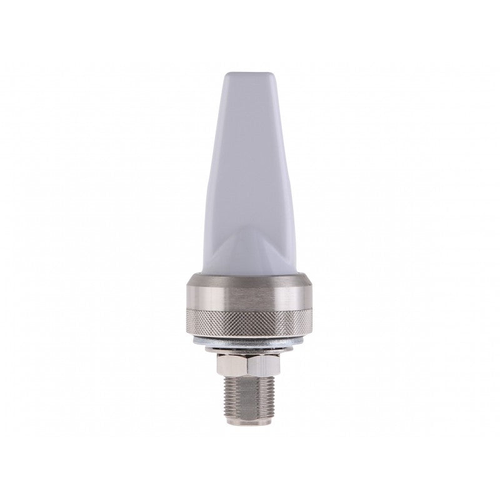

Shadow Direct Transit Antenna, White, 4.5 dBi, 698-869 MHz
Specifications
| SKU | SLPT698869DMNW |
|---|---|
| Manufacturer Part Number | SLPT698/869DMNW |
| Manufacturer | Pulse |
| Antenna Category | 3G/4G/LTE (698-2700 MHz) |
| Working Frequency | 698-869 MHz |
| Gain | 4.5 dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Linear |
| Bands | Single |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 2.5 |
| Width (inches) | 1.5 |
| Weight (lbs) | 0.28 |
| Weight (grams) | 130 |
| Material | PC+ABS Plastic |
| Operating Temp (celsius) | -40 to +85 |
| Mount Style | Direct: N-Female |
| Color | White |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| Vehicular | No |
| Product Condition | New |
