| Environment | Indoor/Outdoor |
| Gain | 8.5 dBiC |
| Polarization | Left/Right Circular |
| Read Range | Far Field |
| RFID Frequency | UHF |
The R8658-LPV-SSF Circularly Polarized ETSI outdoor RFID Antenna from RFMAX measures in at 10x10 inches. This unit operates at 8.5 dBic gain, covers 68 x 68 degrees beamwidth, and is THE BEST choice for a low profile, IP67 rated passive UHF RFID applications in the ETSI band of 865-868 Mhz. The unit carries a full IP67 rating, thus it is well suited for outdoor installation, and comes with a fixed, side entry standard SMA-Female Connector. There are 4 threaded studs for mounting on the back plate, in the 100mm VESA pattern.
| SKU | R8658LPVSSF |
|---|---|
| Manufacturer Part Number | R8658-LPV-SSF |
| Manufacturer | RFMAX |
| Antenna Category | RFID (865-928 MHz) |
| IP Rating | 67 |
| Polarity | Circular |
| Gain | 8.5 dBiC |
| Horizontal/Azimuth Beamwidth | 68 |
| Vertical/Elevation Beamwidth | 68 |
| Connector Type | Connector - Side Entry |
| Connector 1 | SMA-Female |
| Height/Length (inches) | 9.85 |
| Height/Length (mm) | 250 |
| Operating Temp (celsius) | -30 to +70 |
| Thickness/Diameter (inches) | 0.55 |
| Thickness/Diameter (mm) | 14 |
| Width (inches) | 9.85 |
| Width (mm) | 250 |
| Weight (lbs) | 1.6 |
| Weight (grams) | 750 |
| Material | UV-Resistant ABS |
| Mount Style | 4-Studs, 100mm VESA Pattern |
| Product Condition | New |

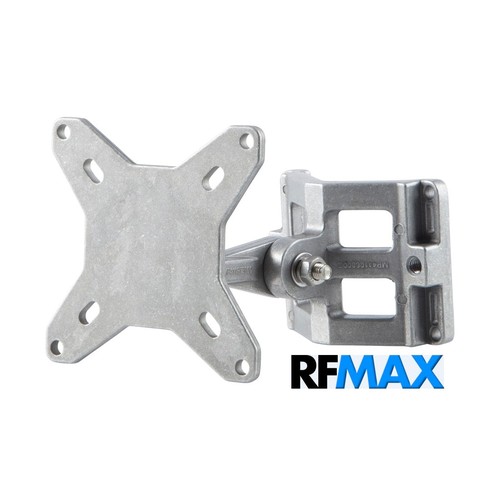

( SKU: HDMNT-100MM )
$81.60
Spec. Sheet
