Xerafy PICO Series On Metal Small Rugged RFID Tags

The small on-metal RFID tags from Xerafy’s PICO series enable item-level tracking with small industry-grade form factors ready for deployment. With their exceptional size-to-read-range ratio, Xerafy’s PICO series of ceramic RFID tags are proven in the field at production facilities around the world, enabling asset tracking for small equipment and tools. Size matters to RF performance with read-range and accuracy decreasing with the tags’ dimensions.

Result: 31

Xerafy PICO Mini 300 RFID Tag [US Frequency]

( SKU: X1307-USP00-U8 )

Xerafy » Xerafy RFID Tags » Xerafy PICO Series

Product May Have Lead Time. Sold in Full Case Quantities. Call for Availability of Less Than Full Case

0.51 x 0.28, 2 x 0.39-Inch Holes (13mm x 7mm, Hole: D2*2), UHF, NXP UCODE 8 IC, 6.56-Foot Read Range (Handheld), 13.12-Foot Read Range (Fixed), Material - FR4 (PCB), Epoxy, Epoxy or Heat Shrink Tubing Mounting, US Frequency, 200 Tags Per Case, Priced Per Case

$305.00

Quantity Discounts

2+

Contact
Xerafy PICO Mini 150 RFID Tag [US Frequency]

( SKU: X1204-USP00-U8 )

Xerafy » Xerafy RFID Tags » Xerafy PICO Series

Product May Have Lead Time. Sold in Full Case Quantities. Call for Availability of Less Than Full Case

0.47 x 0.16, 2 x 0.20-Inch Holes (12mm x 4mm, Hole: D1*2), UHF, NXP UCODE 8 IC, 4.92-Foot Read Range (Handheld), 9.84-Foot Read Range (Fixed), Material - FR4 (PCB), Epoxy, Epoxy or Heat Shrink Tubing Mounting, US Frequency, 200 Tags Per Case, Priced Per Case

$305.00

Quantity Discounts

2+

Contact
Xerafy PICO Mini 150 RFID Tag [EU Frequency]

( SKU: X1204-EUP00-U8 )

Xerafy » Xerafy RFID Tags » Xerafy PICO Series

0.47 x 0.16, 2 x 0.20-Inch Holes (12mm x 4mm, Hole: D1*2), UHF, NXP UCODE 8 IC, 4.92-Foot Read Range (Handheld), 9.84-Foot Read Range (Fixed), Material - FR4 (PCB), Epoxy, Epoxy or Heat Shrink Tubing Mounting, EU Frequency, 200 Tags Per Case
Xerafy PICO Mini 300 RFID Tag [EU Frequency]

( SKU: X1307-EUP00-U8 )

Xerafy » Xerafy RFID Tags » Xerafy PICO Series

0.51 x 0.28, 2 x 0.39-Inch Holes (13mm x 7mm, Hole: D2*2), UHF, NXP UCODE 8 IC, 6.56-Foot Read Range (Handheld), 13.12-Foot Read Range (Fixed), Material - FR4 (PCB), Epoxy, Epoxy or Heat Shrink Tubing Mounting, EU Frequency, 200 Tags Per Case

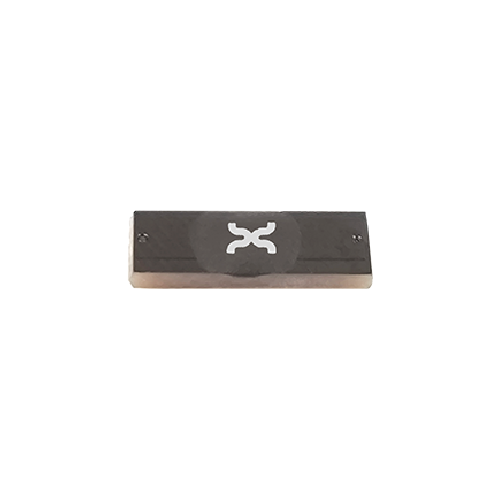

Xerafy PICO Mini 100 RFID Tag [US Frequency]

( SKU: X1035-USP00-U8 )

Xerafy » Xerafy RFID Tags » Xerafy PICO Series

Product May Have Lead Time. Sold in Full Case Quantities. Call for Availability of Less Than Full Case

0.39 x 0.14 (10mm x 3.50mm), UHF, NXP UCODE 8 IC, 0.98-Foot Read Range (Handheld), 1.64-Foot Read Range (Fixed), Material - FR4 (PCB), Epoxy, Epoxy or Heat Shrink Tubing Mounting, US Frequency, 200 Tags Per Case, Priced Per Case

$360.00

Quantity Discounts

2+

Contact
Xerafy PICO Mini 100 RFID Tag [EU Frequency]

( SKU: X1035-EUP00-U8 )

Xerafy » Xerafy RFID Tags » Xerafy PICO Series

0.39 x 0.14 (10mm x 3.50mm), UHF, NXP UCODE 8 IC, 0.98-Foot Read Range (Handheld), 1.64-Foot Read Range (Fixed), Material - FR4 (PCB), Epoxy, Epoxy or Heat Shrink Tubing Mounting, EU Frequency, 200 Tags Per Case

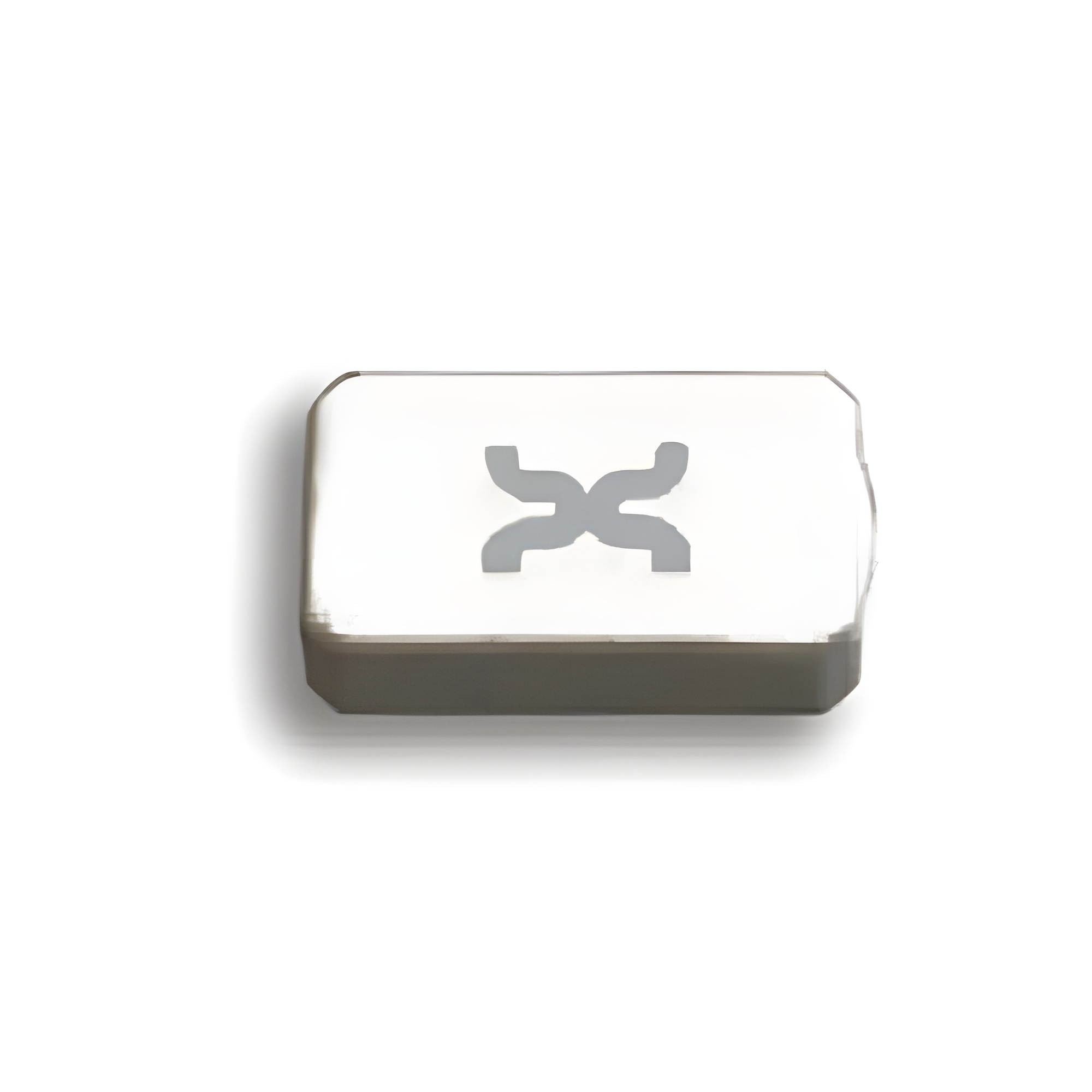

Xerafy PICO In RFID Tag [EU Frequency]

( SKU: X3210-EU000-U8 )

Xerafy » Xerafy RFID Tags » Xerafy PICO Series

0.5 x 0.28 x 0.12, UHF, NXP UCode 8 IC, 4.6-Foot Read Range (Handheld), 7-Foot Read Range (Fixed), High Grade Ceramic, Embeddable, Epoxy, Injection Mould Attachment, EU Frequency, 200 Rolls Per Case, Priced Per Case
Xerafy PICO On RFID Tag [EU Frequency]

( SKU: X3110-EU001-U8 )

Xerafy » Xerafy RFID Tags » Xerafy PICO Series

0.5 x 0.28 x 0.12, UHF, NXP UCode 8 IC, 7-Foot Read Range (Handheld), 10-Foot Read Range (Fixed), High Performance Adhesive, High Grade Ceramic, EU Frequency, 200 Tags Per Case, Priced Per Case

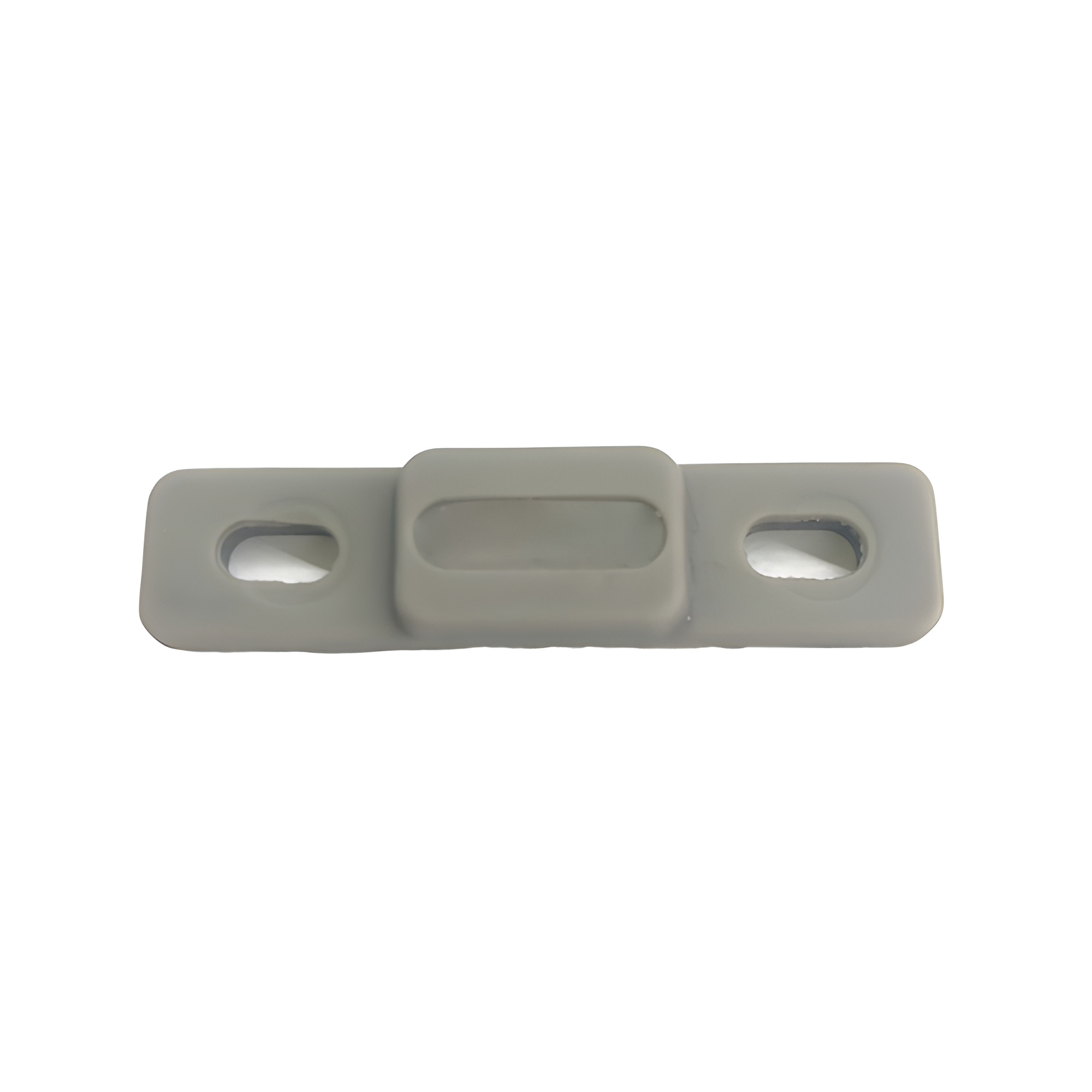

Xerafy Pico Autoclavable Tag

( SKU: X3110-US170-H3 )

Xerafy » Xerafy RFID Tags » Xerafy PICO Series

1.712 x 0.4 x 0.223, UHF, Alien Higgs-3 IC, 10ft Read Range (on metal), High Grade Ceramic Inside, Silicon Encapsulated, Built-in Rivet Hole, US Frequency
Xerafy NANO Plus RFID Tag [EU Frequency]

( SKU: X1120-EU101-U8 )

Xerafy » Xerafy RFID Tags » Xerafy PICO Series

1.25 x 0.51 x 0.2, UHF, NXP UCode 8 IC, 14-Foot Read Range (Handheld), 20-Foot Read Range (Fixed), Case Material - Industry Grade Polymer, High Performance Adhesive, EU Frequency, 200 Tags Per Case, Priced Per Case
