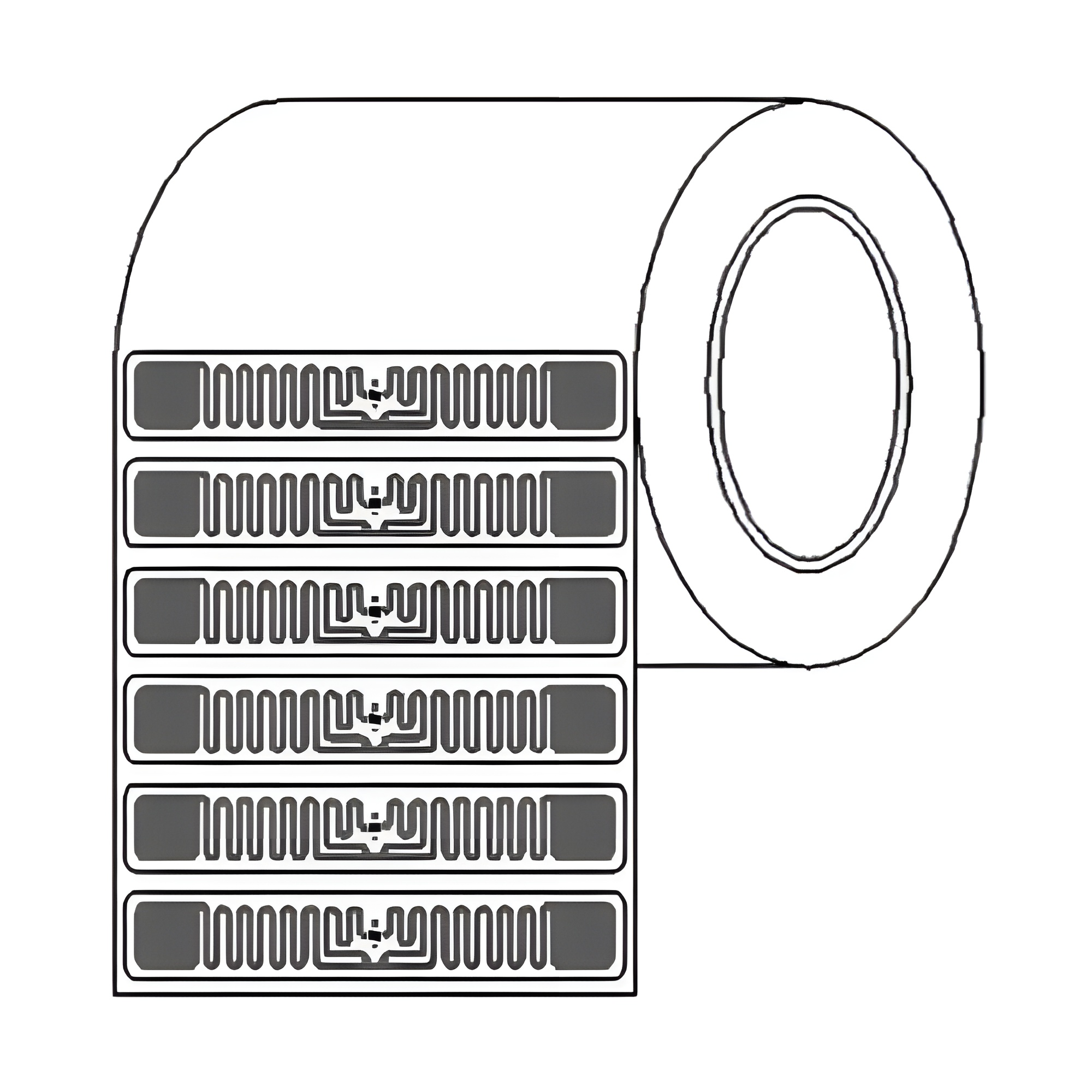

ALN-9630 Squiglette Inlay

The Alien Technology® ALN-9630 “Squiglette” RFID inlay is a narrower version of its high-performance, general-purpose Squiggle® sibling.

Features:

• Squiggle tag performance in a smaller tag
• Multiple frequency optimized sensitivity

Benefits:

• Smaller form-factor, still robust, proven, and reliable
• A worldwide performance tag

ALN 9630 Squiglette Inlay Product Overview

Powered by Alien®’s break-through Higgs™3 UHF RFID IC and innovative Squiglette antenna design, the ALN-9630 delivers industry leading EPC Gen 2 performance and reliability in a narrower width than it’s bigger brother, the Squiggle®, and makes it ideal for apparel applications. ALN-9630 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa.

With its Higgs-3 core, the Squiglette delivers excellent performance and a rich feature set expanding the standard 32-bit TID with an additional 64-bit Unique TID for authentication and serialization applications, an extensible EPC memory bank, 512-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag’s data.

Some Applications for use:

• Apparel Hang Tags
• Corrugate Cases
• Pallet Placard Labels
• Shipping Labels
• Asset Management
• File Folder Labels
• Application on Plastics
