ALN-9710 Squig Inlay (HIGGS 4)

The Alien Technology® ALN-9710 “Squig” RFID inlay is a shorter version of its highperformance, general-purpose Squiggle® and Squiglette siblings. The ALN-9710 brings all the Higgs™ 4 advantages to highly-effective “Squig” Inlay.

Features:

• Compact version of the high performance Squiggle and Squiglette tag
• Next generation Higgs™ 4 features and performance

Benefits:

• Smaller form factor, still robust, proven, and reliable
• Rapid programming of serialized tags and excellent read/write performance

ALN 9710 Squig Product Overview

Powered by Alien®’s break-through Higgs™4 UHF RFID IC and innovative “Squig” antenna design, the ALN- 9710 delivers industry leading EPC Gen 2 performance and reliability in a shorter width than it’s bigger brothers, the Squiggle® and the Squiglette, making it ideal for apparel and small label applications.

With its Higgs-4 core, the “Squig” delivers next generation read and write performance, yet is completely optimized for the highest volume enterprise, retail, and apparel applications. An optimized memory footprint includes a 32-bit TID, a 64- bit Unique TID for authentication and next generation serialization applications, a 128-bit EPC memory bank, 128-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag’s data. ALN-9710 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa

Features:

Designed to meet EPCglobal Gen2 (V1.2.0) and ISO/IEC 18000-6C

Worldwide RFID UHF operation (840-960MHz)

448-Bits of NVRAM Memory • 128-EPC Bits • 128 User Bits • 64 Bit Unique TID • 32 Bit Access and 32 bit Kill Passwords

Pre-Programmed with a unique, unalterable 64- bit serial number

User Memory can be Block Perma-Locked

User Memory can be Block Perma-Locked as well as read password protected in 32 Bit Blocks

Class leading read and write performance

Pre-encoded Multivendor Chip Serialization (MCS)

BlastWrite™ and QuickWrite™ mass-encoding

Dynamic Authentication™ - anti-cloning/anticounterfeit technology

Exceptional operating range, up to 11m with appropriate antenna.

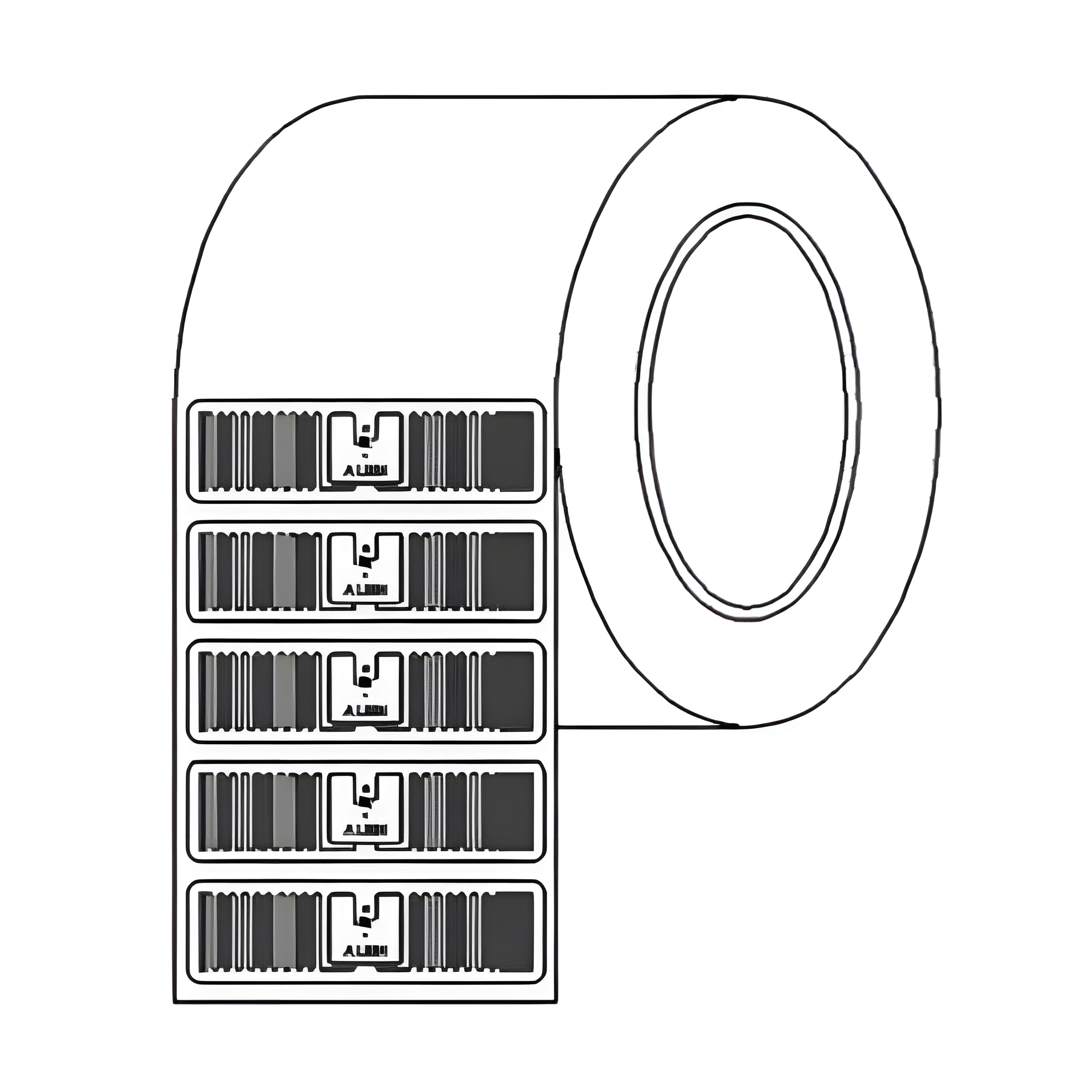

Available in high-yield, high capacity dry/wet inlay rolls.

Some Applications for use:

• Apparel/Retail
• Hang Tags
• Corrugate Cases
• Small Package Labels
• Asset Management
• Shipping Labels
