Laird PDM24518-AZ2 4x4 MiMo WiFi Antenna
| Part Type | Antenna |
| Interface | Coaxial |
| Environment | Indoor/Outdoor |
| Gain | 8 dBi |
Product Highlights
Laird PDM24518-AZ2: 4x4 MiMo WiFi Antenna for Amazon. 2.4 & 5 GHz Dual Polarization. 8 dBi with 30 inch Cables & RPSMA MNF# PDM24518AZ2We also offer Thru-Hole NMO Mounts and Magnetic NMO Mounts. Contact us for to discuss your project.
Spec. Sheet
Laird Low Profile/Phantom Antennas
Introducing Laird's Low Profile/Phantom Antennas! Revolutionizing communication with their whipless design, these antennas offer omni-directional radiation and vertical polarization, ensuring frequency agility and superior performance in various applications. Their low visibility and angle radiation pattern make them ideal for public safety, transportation, commercial, industrial communication, and IoT. With easy installation options and UV-treated radome for durability, Laird antennas are the pinnacle of efficiency and reliability in modern communication systems.

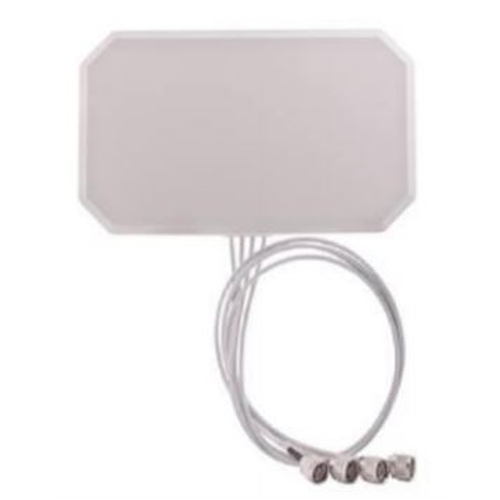

The PDM24518-AZ2 from Laird Technologies is a 4x4 MiMo WiFi antenna. The antenna measures in at 7 inches tall and 12 inches across. This unit can handle up to 10 watts of input power and includes an integrated 30inch long RG58 coax cable with integrated RPSMA connector. The unit accepts FOUR WiFi inputs: two H-Pol and two V-Pol.
Specifications
| SKU | PDM24518AZ2 |
|---|---|
| Manufacturer Part Number | PDM24518-AZ2 |
| Manufacturer | Laird |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 2400-2500 MHz |
| Gain | 8 dBi |
| Working Frequency 2 | 5150-5900 MHz |
| Gain 2 | 8 dBi |
| Antenna Style | Panel Antenna |
| Polarity | Dual Polarity |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Directional |
| VSWR: < X: 1 | 2.0 - 2.4:1 |
| Front/Back Ratio (Db) | 20dB |
| Horizontal/Azimuth Beamwidth | 45-90 degrees |
| Vertical/Elevation Beamwidth | 30-45 degrees |
| No Of Elements | 4 |
| Height/Length (inches) | 7 |
| Height/Length (mm) | 178 |
| Width (inches) | 12 |
| Width (mm) | 305 |
| Thickness/Diameter (inches) | 1 |
| Thickness/Diameter (mm) | 26 |
| Weight (lbs) | 1.5 |
| Weight (grams) | 0.69 KG |
| Material | White Polycarbonate |
| Operating Temp (celsius) | -30 to +70c |
| Mount Style | Studs on Back Plate |
| Mount Pattern | 4 studs at 61.98 x 83.06mm studs |
| Color | White |
| Cable Type | RG-58/U |
| Number of Cables | 4 |
| Cable Length (inches) | 30 inches |
| Cable Length (mm) | 762 mm |
| Product Condition | New |
