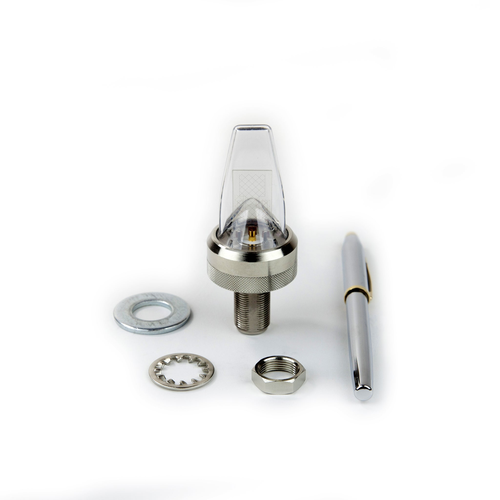

Pulse ICEFINWDMN Direct Mount Antenna
| Part Type | Antenna |
| Interface | Wi-Fi |
| Environment | Indoor/Outdoor |
| Gain | 5.2 dBi 6.2 dBi |
| Frequency Ranges | WiFi&WLAN (2.4/5.0 GHz) |
| Polarization | Linear |
Product Highlights
Pulse ICEFINWDMN: Direct Mount Antenna - Clear - 2400-2500/4900-6000 MHz MNF# ICEFINWDMNWe also offer Thru-Hole NMO Mounts and Magnetic NMO Mounts. Contact us for to discuss your project.
Spec. Sheet
Pulse Electronics Low Profile Antennas
Pulse Electronics offers cutting-edge low profile antennas, revolutionizing connectivity in compact devices. These antennas boast exceptional performance while maintaining minimalistic designs, catering to diverse applications like IoT, automotive, and consumer electronics. With Pulse's expertise, devices can achieve seamless connectivity without compromising aesthetics or functionality.
The Pulse-Larsen ICEFINWDMN (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11 applications.
Specifications
| SKU | ICEFINWDMN |
|---|---|
| Manufacturer Part Number | ICEFINWDMN |
| Manufacturer | Pulse |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 2400-2500 MHz |
| Gain | 5.2 dBi |
| Working Frequency 2 | 4900-6000 MHz |
| Gain 2 | 6.2 dBi |
| Antenna Style | Low Profile Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohm |
| Max Input Power (W) | 20 W |
| VSWR: < X: 1 | 2:01 |
| Height/Length (inches) | 2.5 |
| Height/Length (mm) | 63.5 |
| Width (inches) | 1.5 |
| Width (mm) | 38 |
| Weight (lbs) | 0.28 |
| Weight (grams) | 130 |
| Material | PC+ABS Plastic |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Direct: N-Female |
| Color | Clear |
| Connector Type | Connector - Bottom |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| Vehicular | Yes |
| Product Condition | New |
The Pulse-Larsen ICEFINWDMN (Shadow Low Profile Transit) antenna was designed for the public safety and utility/M2M markets operating over the WLAN / WiFi frequency range for 802.11 applications.
These rugged, yet aesthetically pleasing antennas provide a smaller, slimmer option at value oriented pricing without sacrificing mechanical or electrical performance. The IceFin family of antennas was created specifically to serve emerging applications such as 700 MHz Public Safety, LTE, Smart Grid and High-Speed WLAN.
Features
- Direct mount - N Female
- 2400-2500/4900-6000 MHz
- Shorter, slimmer profile without sacrificing mechanical performance
- IP-67 rating when installed to compliant surface
- RoHS Compliant Product
Applications
- Vehicular: Public Safety, Utility, Fleet
- 802.11a,b,g,n & .ac Applications (siso & mimo)
- M2M and Smart Metering
