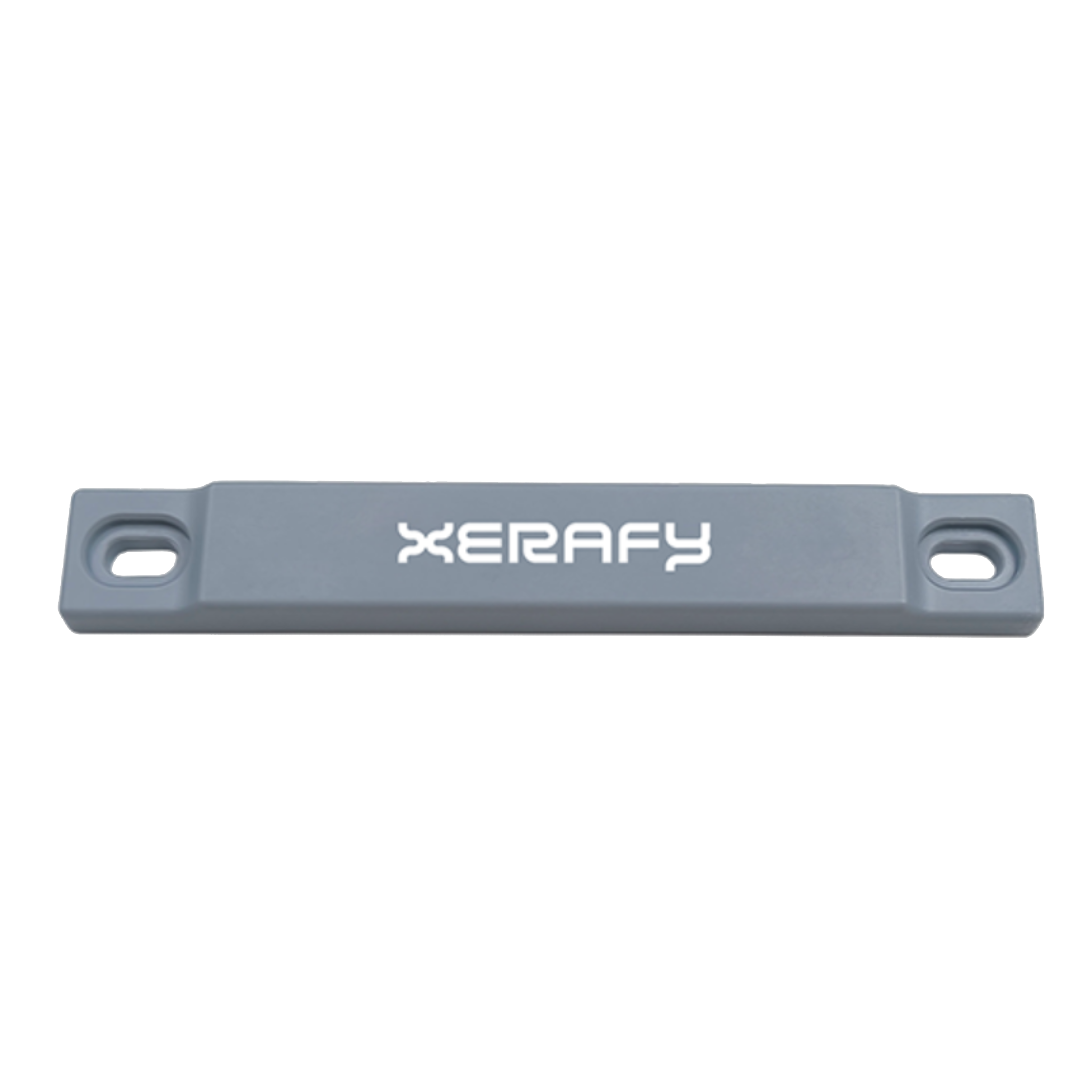

Xerafy MICRO Medical RFID Tag [EU Frequency]

SKU: X0353-EU100-U9

Weight: 4 lbs.

Integrated Circuit	NXP UCODE 9
RFID Frequency	UHF
Style	Durable Industrial Durable Durable Logistics

Product Highlights

Xerafy Micro Medical RFID Tag, 3.52 x .51 x 0.24, UHF, NXP UCODE 9 IC, 13.12-Foot Read Range (On Metal), 22.97-Foot Read Range (On Metal), Built-in Rivet Hole, Case Material - Industry Grade Polymer, EU Frequency, 200 Tags Per Case, Priced Per Case

Product May Have Lead Time. Sold in Full Case Quantities. Call for Availability of Less Than Full Case

Spec. Sheet

For Ordering Outside of North America, Contact Us for Pricing

Cost-Effective Tag for Medical Devices

The MICRO Medical is an autoclavable tag designed for tracking medical devices and surgical trays.

Its IP69K rating and biocompatible tag case allow it to withstand high-pressure washing, steam, and sterilization cycles, while the stainless-steel inserts provide a rugged mounting system.

Features

Chemical resistance: withstands exposure to harsh sterilization chemicals for long-term durability
Medical-grade materials: constructed with biocompatible materials, safe for use in medical applications
IP69K: waterproof for rigorous cleaning and sterilization
Stainless steel: for secure mounting
Multi-surface: for installation on metallic and plastic assets

Applications

Surgical tray management
Medical devices tracking

Technical Specifications

RF protocol EPC global Class 1 Gen 2
Frequency 902-928 MHz (US), 865-868 MHz (EU)
IC type (chip) NXP UCODE 9
Chip memory 96 bits EPC, 96 bits TID
Read range on metal Up to 13.12 ft (4 m)
Read range off metal Up to 22.97 ft (7 m)
Polarization Linear
Radiation pattern on metal

Environmental Specifications

Operational -40°C to +85°C
Survival -40°C to +150°C
IP rating IP68, IP69K
Shock 3ft (1 m) to concrete/granite
Vibration MIL-STD-810G
Warranty 1 year
